Electrical gas vaporizer

Industries concerned :
Electrical gas vaporizer - Electric heaters, skids and special equipments - Quiri
To transform a liquid into a gaseous phase such as CO2 (for the carbonated drink production industry, for example), an electric vaporizer is a particularly suitable and flexible solution, requiring nothing other than an electrical supply.

Thermal specificities:

  Quiri, specialist in heat exchangers, introduces you an electrical gas vaporizer. We delivered this exchanger for a French brewery. The electrical heater, which is a heat exchanger, of Quiri thermal design, ensures the vaporization by heating of the CO2 through an electrical immersion heater.

Some Technical Data:


Shell side
Nature of fluids   CO2
Inlet temperature °C -20°
Outlet temperature °C 35
Operating pressure Bar abs 20
Design pressure Bar g 24
Design temperature °C -20 / 35
Shell diameter mm DN 200


Geometric specificities:

  Vertical heat exchanger, overall length 2 m, empty weight 100 kg.

Construction Specificities:

  Code : CODAP Joint efficiency : 1

Metallurgy:

  Matière Norme
Shell Gr6 SA333
Tubesheet and shell flange P280 GH EN 10222-2
Cover WPB SA234
Bundle tubes TP321 EN 10217-7
Nozzles Gr6 SA333
  Tube to tubesheet attachment : welding Welding procedures : according to EN ISO 15614-1 or EN 288.3 and EN ISO 15613 Welders qualifications : according to EN ISO 9606-1 and EN 14732

Quality specificities :

  LOFC according to customer specifications, requirements of European and local regulations.

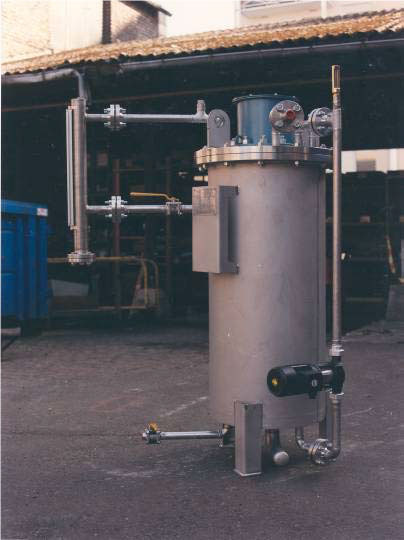

Picture :

Electrical gas vaporizer - Electric heaters, skids and special equipments - Quiri - 2
