Steam generator

Industries concerned :
Product concerned : Shell and tube heat exchangers
Steam generator : Shell and tube heat exchangers - Quiri
These exchangers are used to produce clean, high-quality water vapor necessary for the food industry.

Thermal specificities:

Quiri, specialist in heat exchangers, introduces you a BKU TEMA type steam generator.
This exchanger was delivered to England in 2017 as part of the construction of a cogeneration plant.
The plant also supplies process steam to another plant via this steam generator.
The steam generator, which is a multitubular heat exchanger, of Quiri thermal design, ensures the production of saturated steam by condensing superheated steam. The superheated steam comes from the steam extraction of the turbine. The heating steam supply pressure (primary side) to the steam generator is controlled to maintain constant steam pressure (secondary side).
The feedwater for the shell side (secondary side) is supplied by the water supply system of the factory. The water supply is controlled to maintain a constant level of water on the shell side of the steam generator.

Some Technical Data:


    Shell side Tube side
Nature of fluids   Water Steam
Flow t/h 50 56
Inlet temperature °C 136 208
Outlet temperature °C 189 198
Operating pressure Bar abs 12 15
Design pressure Bar g 15 23
Design temperature °C 204 350
Heat exchanged MW 31


Main dimensions
Installed exchange surface 2350
Type of bundle tubes   Smooth bent tubes
Shell diameter mm 2100

Geometric specificities:

Horizontal tubular heat exchanger, overall length 14 m, empty weight 55 tons.

Construction Specificities:

Code: EN 13445
Regulation: PED 2014/68 / EU
Risk category IV, reception module G
Joint efficiency : 0.85


  Material Standard
Shell P265 GH EN 10028-2
Tubesheet P355 QH EN 10222-2
Shell and channel flanges P355 QH EN 10222-2
Cover P265 GH EN 10028-2
Bundle tubes P235 GH EN 10216-2
Nozzles Gr6 SA333
Baffles S235JRG2 EN 10025

Tube to tubesheet attachment : welding and expansion
Welding procedures : according to EN ISO 15614-1 or EN 288.3 and EN ISO 15613
Welders qualifications : according to EN ISO 9606-1 and EN 14732

Quality specificities :

LOFC according to customer specifications, requirements of European and local regulations.
Operating file in English language.

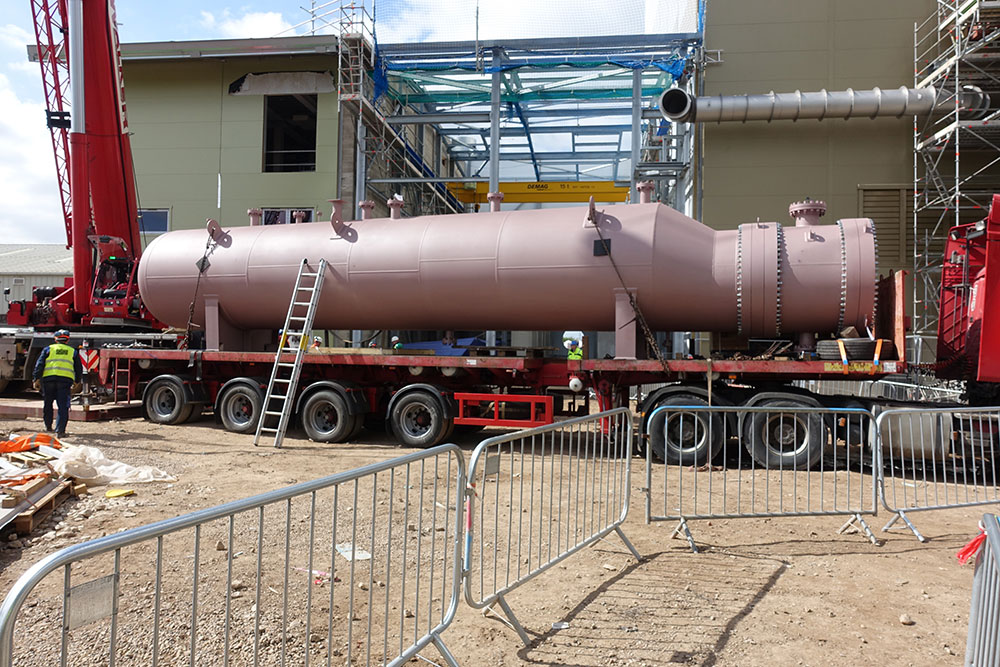

Heat exchanger installed in England.
