Hydraulic cylinders and components, hydraulic systems, gas springs & shell and tube heat exchangers : Quiri

Consult the general guide

Products

Hydraulic block cylinders BDA

BDA hydraulic block cylinder in aluminium: with detection system.

Hydraulic block cylinders BDD

BDD standard hydraulic block cylinder: Competitive prices and available from stock.

Hydraulic block cylinders BDE

BDE hydraulic block cylinder, all options (strokes on request)

Hydraulic block cylinders BDS

BDS hydraulic block cylinder with all options (strokes and key position on request)

Hydraulic block cylinders S48

Standard S48 hydraulic block cylinders with VITON seals. Competitive prices and available from stock.

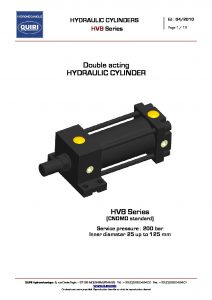

Double acting hydraulic cylinders HVB

Double-acting tie-rod cylinders, bores from 25 mm to 125 mm, standard and custom strokes. Maximum operating pressure of 200 bar, with the option of operating at 80°C with standard seals or up to 150°C with viton seals. Choice of threaded, tapped or tenoned rod ends.

Quiri Hydromechanics is an expert company in the design and manufacture of hydraulic cylinders. We offer a wide range of hydraulic block cylinders for injection molds.

Based on a one-piece design, our compact hydraulic cylinders consist of 3 mechanical parts (one-piece body and piston rod, guide ring), thus allowing easy integration within molds for plastic injection or ejection of aluminum, steel or concrete parts. One of the advantages of this design is that the risk of leakage and the need for spare parts is considerably reduced.

For the automotive, cosmetics, medical and packaging industries, our wide range of compact hydraulic cylinders offers numerous options, for an ideal solution adapted to each application.

Mastering all the skills related to hydromechanics, Quiri provides you with injection mold cylinders renowned for their robustness, solidity and performance. Our quality system has been ISO 9001 certified since 1997 and guarantees you an irreproachable quality of hydraulic actuators.

For further information about our hydraulic block cylinders for injection molds, please do not hesitate to contact our experts.
