Lifting steel cylinders 700 bar

QUIRI HYDROMECANIQUE company, hydraulic expert since 1955, propose a large range of hydraulic cylinders to lift, pull, extract, push. Discover our standard cylinders, efficient and appropriated to every work area, resulting from a more than 60 years experiment.

Standard ranges available :

  • SER cylinders : single acting, spring return
  • SEG / SGL cylinders : single acting, load return
  • SGS / SSL cylinders : single acting, with lock nut, load return
  • SRB cylinders : low, single acting, spring return
  • SRP cylinders : extra-plat, single acting, spring return
  • SSP cylinders : extra-flat with safety nut, single acting, gravity return
  • CSE cylinders : hollow piston rod, single acting, spring return
  • CDE cylinders : hollow piston rod, double acting
  • DE / DL cylinders : double acting

Special cylinders on request : please “Contact us“.

Print this catalog Consult the general guide

Single acting, load return – 700 bar – SEG

Steel

Single acting cylinders, load return, high tonnage – 700 bar – SGL

Steel

Single acting cylinders, spring return (5 to 16 T) – 700 bar – SER

Steel

Single acting cylinders, spring return (23 to 93 T) – 700 bar – SER

Steel

Lock nut cylinders, load return – 700 bar – SGS

Steel

Single acting low cylinders – 700 bar – SRB

Steel

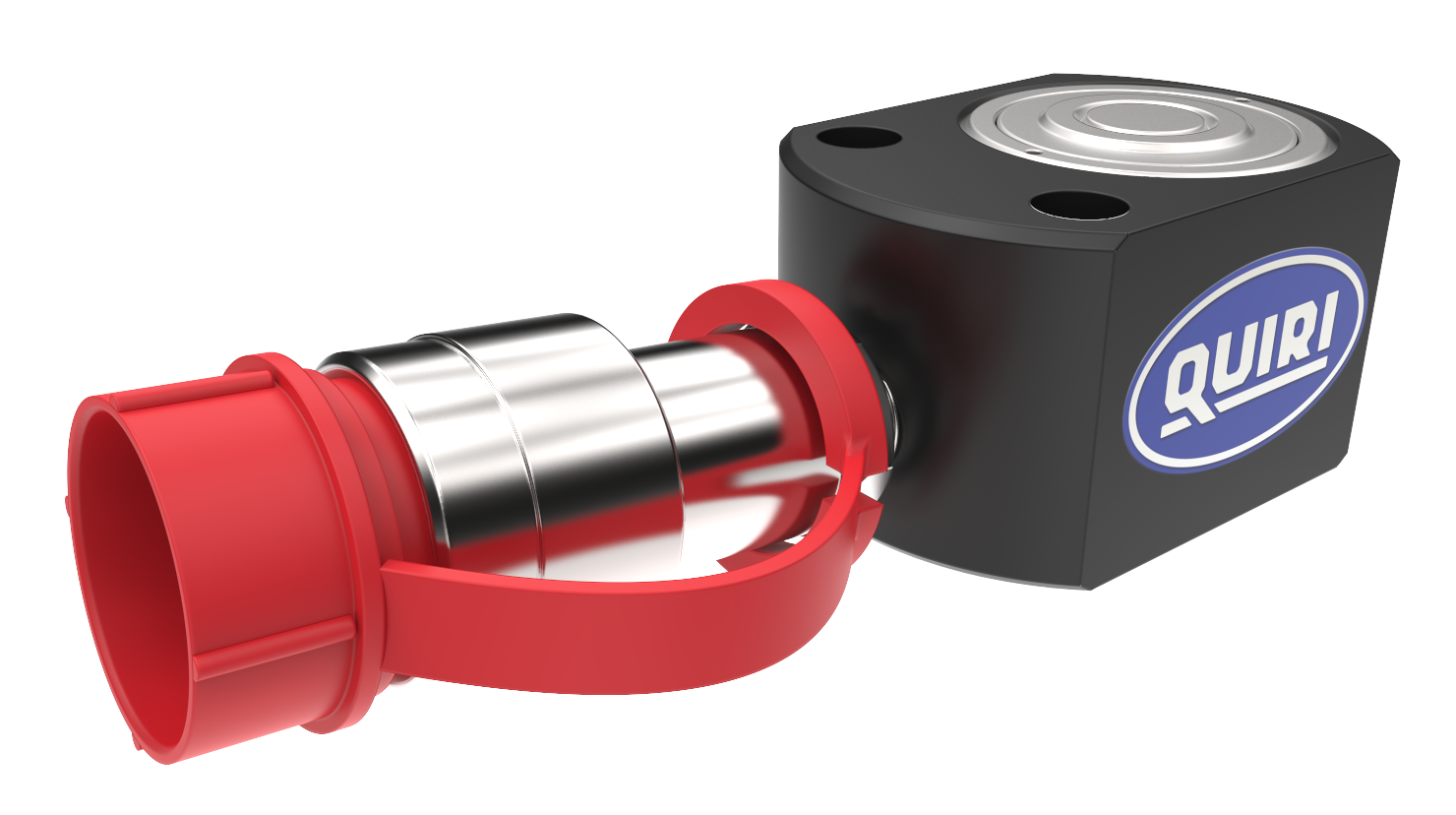

Extra flat cylinders, spring return – 700 bar – SRP

Steel

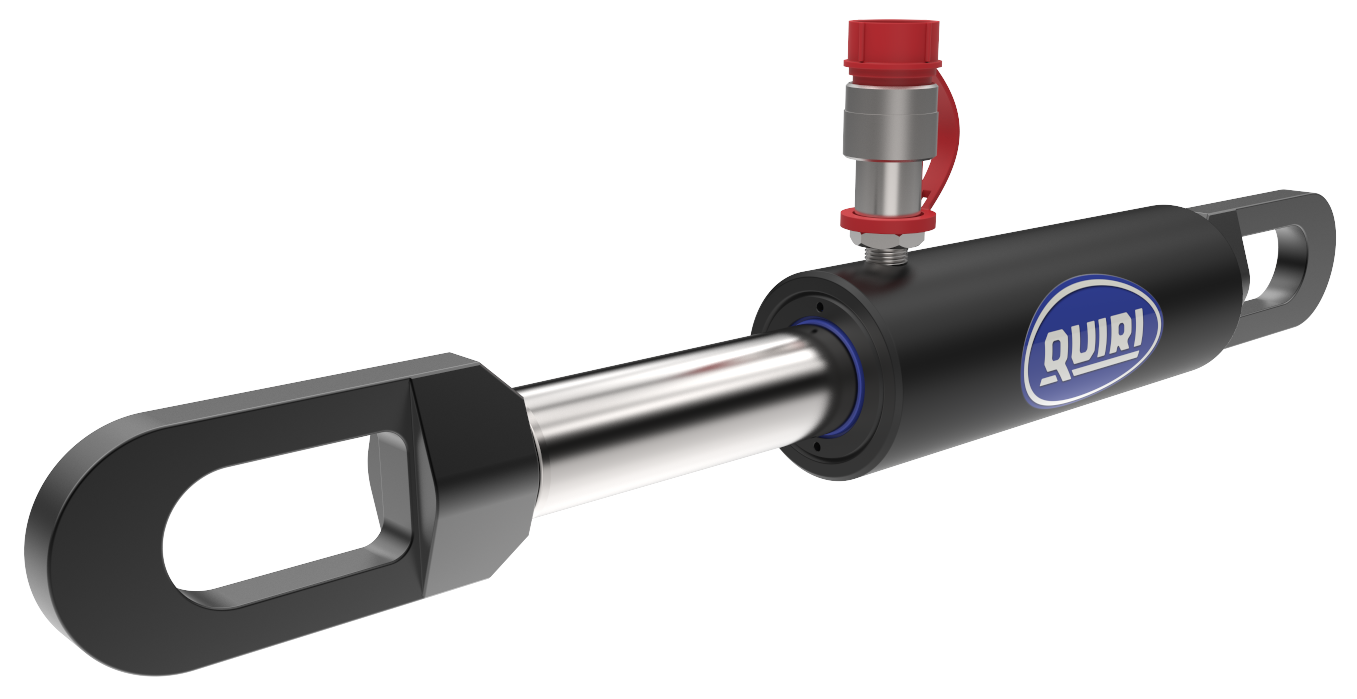

Pull cylinders, spring return – 700 bar – SRT

Steel

Hollow piston single acting cylinders, spring return – 700 bar – CSE

Steel

Hollow piston double acting cylinders, hydraulic return – 700 bar – CDE

Steel

Double acting cylinders, hydraulic return – 700 bar – DE

Steel

Double acting cylinders, hydraulic return, high tonnage – 700 bar – DL

Steel

Hydraulic spreaders – 700 bar – SH1

Steel

Extra flat cylinders with safety nut – 700 bar – SSP

Steel

Accessories

Hollow cylinders saddles (for CSE and CDE cylinders) – 700 bar

TPP – Flat saddles – 700 bar

Standard saddles delivered on QUIRI 700 cylinders. Protect piston rod end.

TRP – Tilt saddles – 700 bar

Correct the effects of a non centered load.

TPA – Flat saddles – 700 bar

Standard saddles delivered on QUIRI 700 cylinders. Protect piston rod end.

TRA – Tilt saddles – 700 bar

Correct the effects of a non centered load.
