Single acting low cylinders – 700 bar – SRB

Steel

• Single acting, spring return
• Fitted with removable grooved saddle
• Salt bath nitriding cylinder
• Fitted in standard with HF 738 coupler
• Cylinder SRB 506 with carrying handles
• Cylinder SRB 936 with transport eye hooks.

When used, make sure that the cylinder is absolutely steady

Print this sheet
Single acting low cylinders – 700 bar – SRB : Lifting steel cylinders 700 bar - Quiri - 2

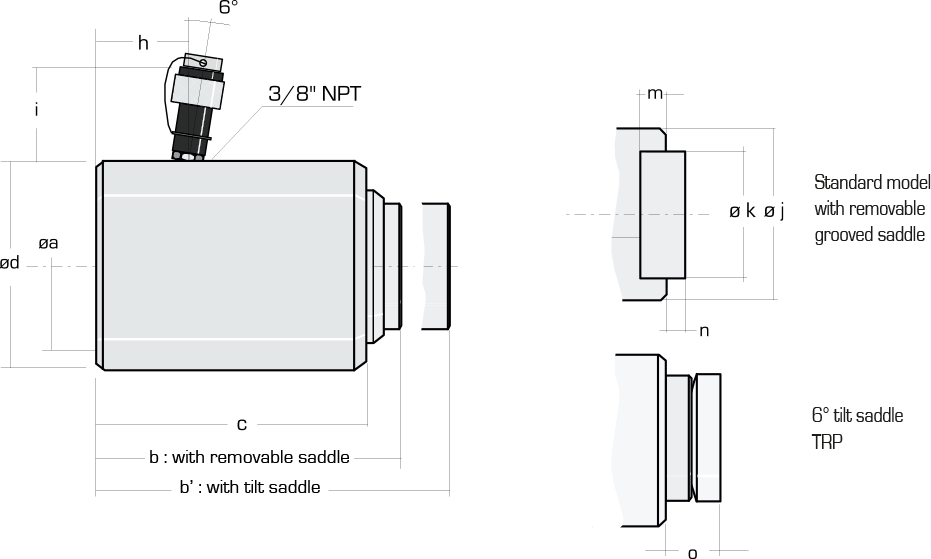

Cylinder

Category

Maxi. force

700 bar



Stroke

Effective

area

Oil volume Reference Dimensions (mm) Weight
a b b’ c d h i j k m n o
Tons kN mm cm2 cm3 kg
11 111 40 15.9 63.6 SRB 114 45 89 105.5 86 69 21 65 38 27 9 3 18.5 2.5
22 218 40 31.2 124.7 SRB 224 63 96 116.5 92.5 89 21 65 53 39 12 2 22.5 4.2
31 309 60 44.2 265 SRB 316 75 120 140.6 117 103 21 65 60 45 12 2 22.6 6.7
50 496 60 70.9 425 SRB 506 95 127 152 124 127 22 65 80 60 13 2 27 10.7
93 929 60 132.7 796.4 SRB 936 130 141 170.5 137.5 168 21 65 110 94 16 2 31 21.1

Product accessories

Find our guide about couplers on this page: Couplers fitted on single acting QUIRI 700 cylinders
