Couplers fitted on single acting QUIRI 700 cylinders

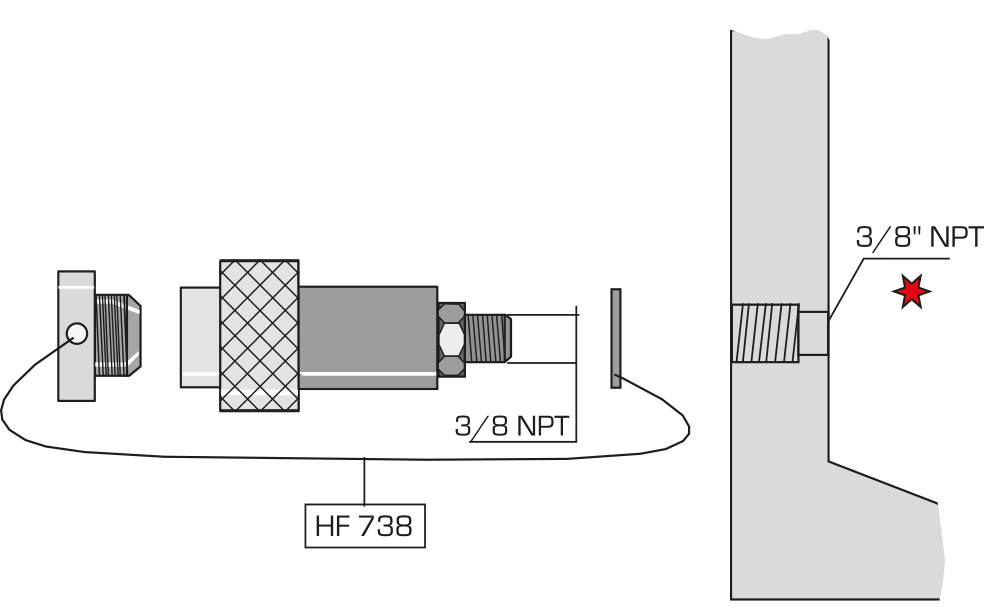

HF 738 – 700 bar screwing coupler
Fitted in standard on Quiri 700 cylinders
| Working pressure | 700 bar |
| Nominal size | 6 mm |
| Maximum flow | 17 l/min |

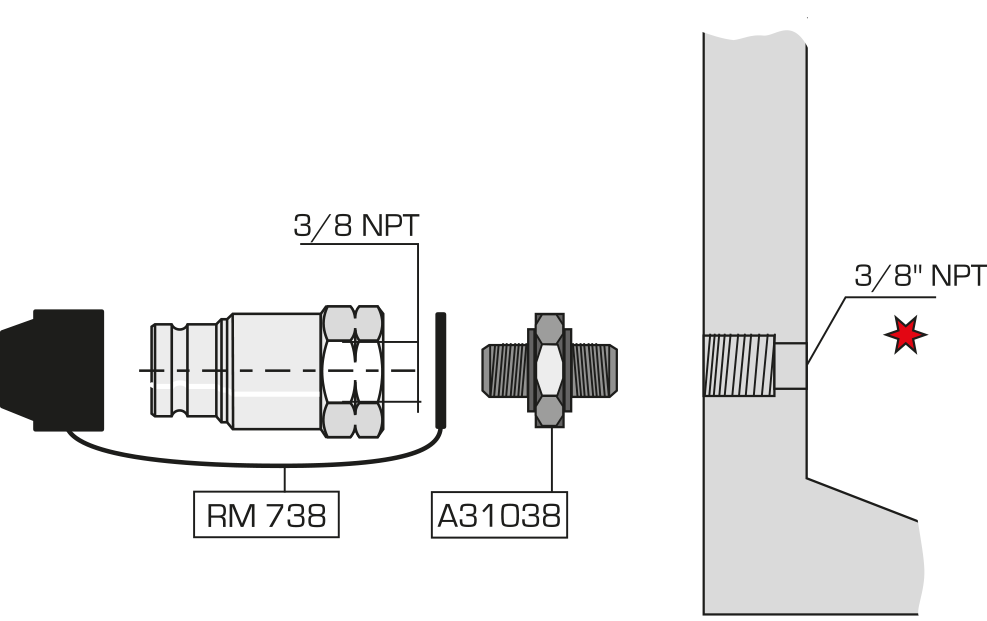

RM 738 – 700 bar quick connecting coupler
| Working pressure | 700 bar |
| Nominal size | 10 mm |
| Maximum flow | 35 l/min |

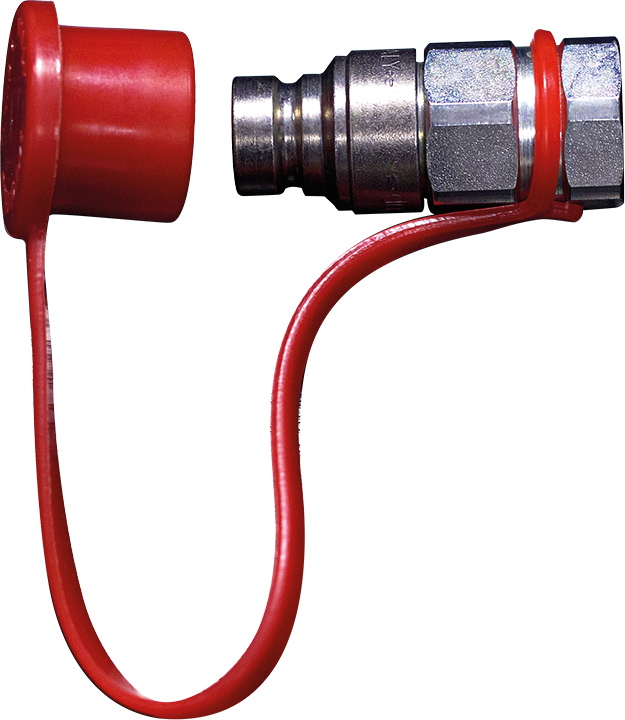

PM 714 – 700 bar quick connecting coupler
| Working pressure | 700 bar |
| Nominal size | 6 mm |
| Maximum flow | 24 l/min |

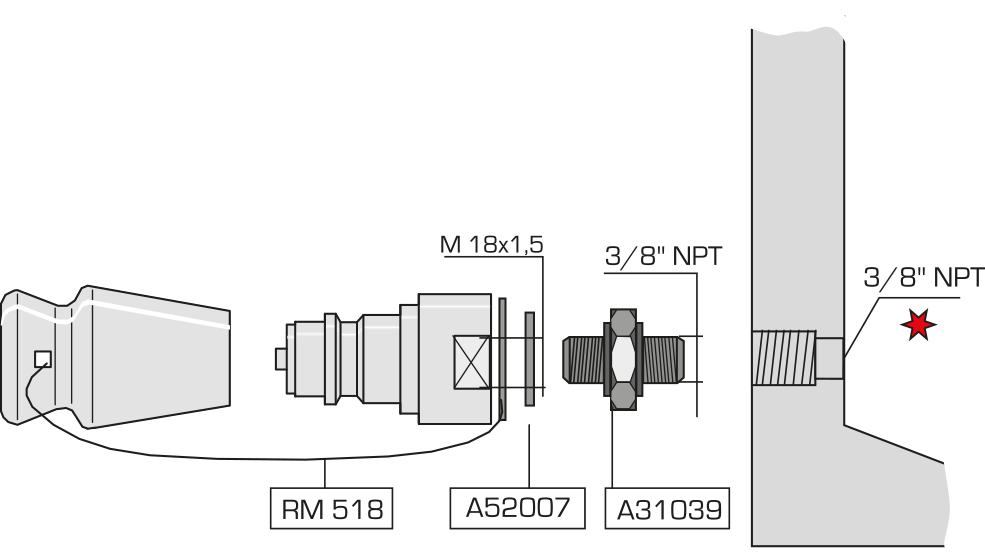

RM 518 – 500 bar quick connecting coupler
Used with 700 bar cylinders, the pressure must be limited at 500 bar
| Working pressure | 500 bar |
| Nominal size | 10 mm |
| Maximum flow | 40 l/min |

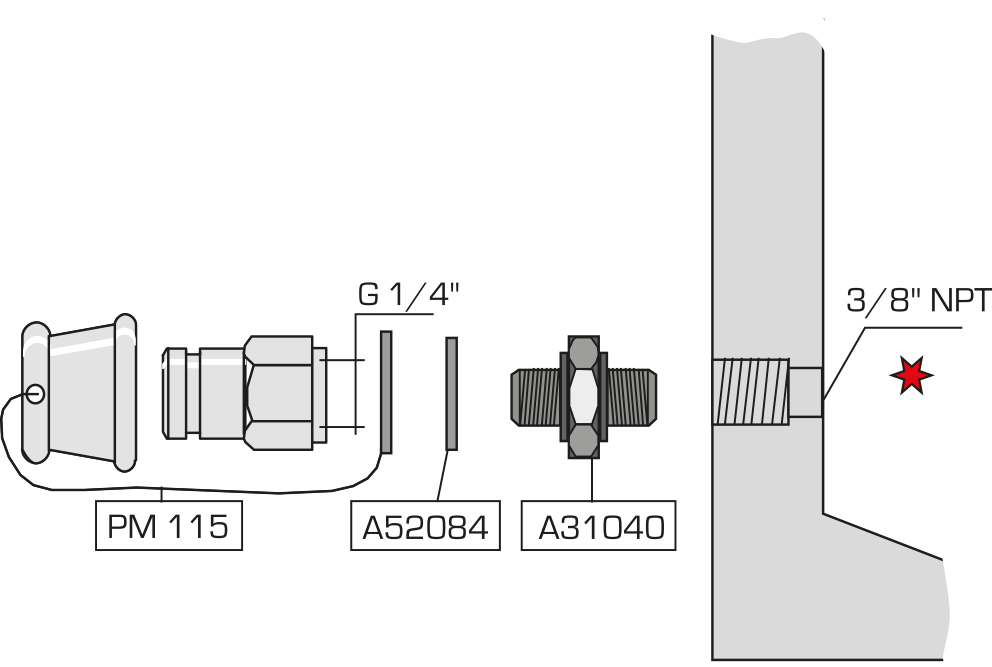

PM 115 – 1000 bar quick connecting coupler
Used at 700 bar
Recommended for small oil volume cylinders
| Working pressure | 1000 bar |
| Nominal size | 3 mm |
| Maximum flow | 7 l/min |
Maximum tightening torque :
* 3/8’’ NPT : 5,7 mdaN
