Air hydraulic pumps 700 bar

  • Maximum pressure 700 bar.
  • Hydraulic pressure proportional to air pressure
  • Working cycle : advance / hold / return
  • Foot operated valve for single acting cylinders (3-ways, 3-positions)
  • Manual operated valve for double acting cylinders (4-ways, 3-positions)
  • External adjustable pressure relief valve – set at 700 bar
  • Oil capacity : 1300, 2500 and 4000 cm3 (delivered with oil)
  • Air inlet pressure : 7 bar
  • Oil flow : from 1200 to 160 cm3/mn
  • Air consumption  : 350 l/mn (without load) at 7 bar air pressure

Option :

Air pumps for single acting cylinders can be available with a remote control

Print this catalog Consult the general guide

Air hydraulic pumps with remote control – 700 bar – PHP

For single acting cylinders

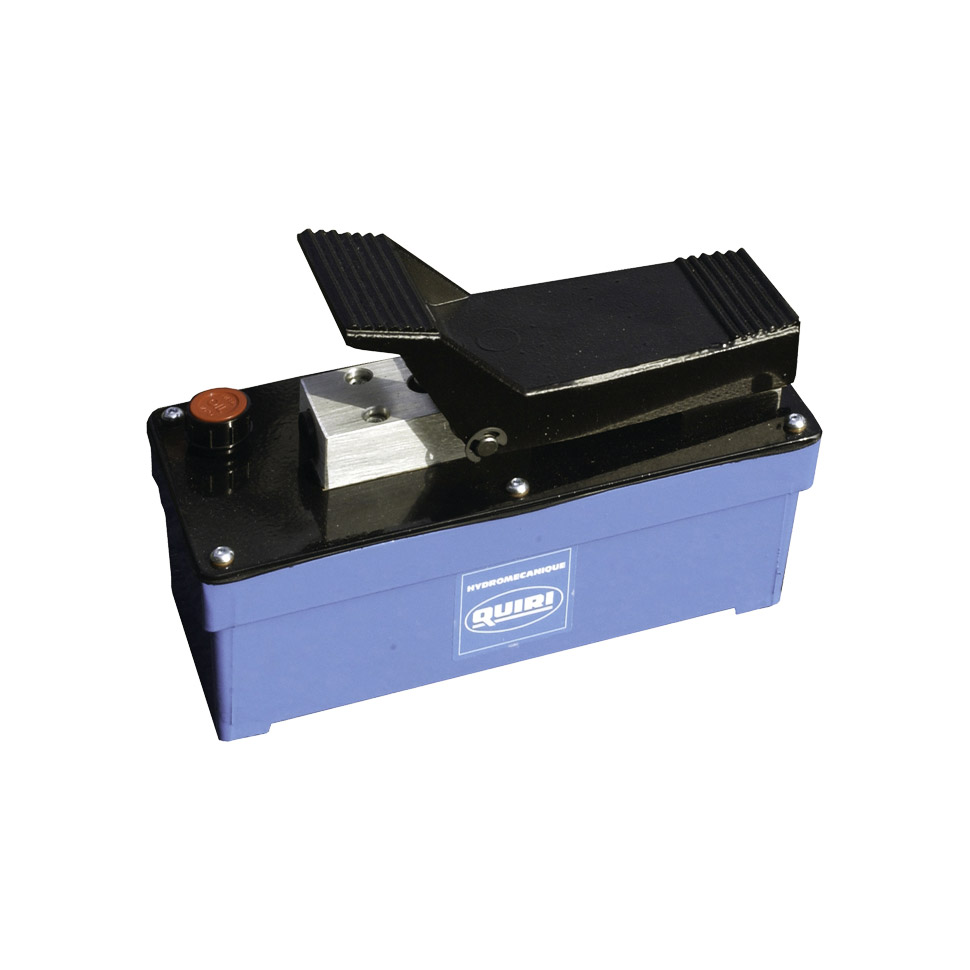

Air hydraulic pumps with foot control – 700 bar – PHP

For single and double acting cylinders

Air hydraulic pumps, oil capacity 4 and 12 liters – 700 bar – PHP

For single and double acting cylinders
