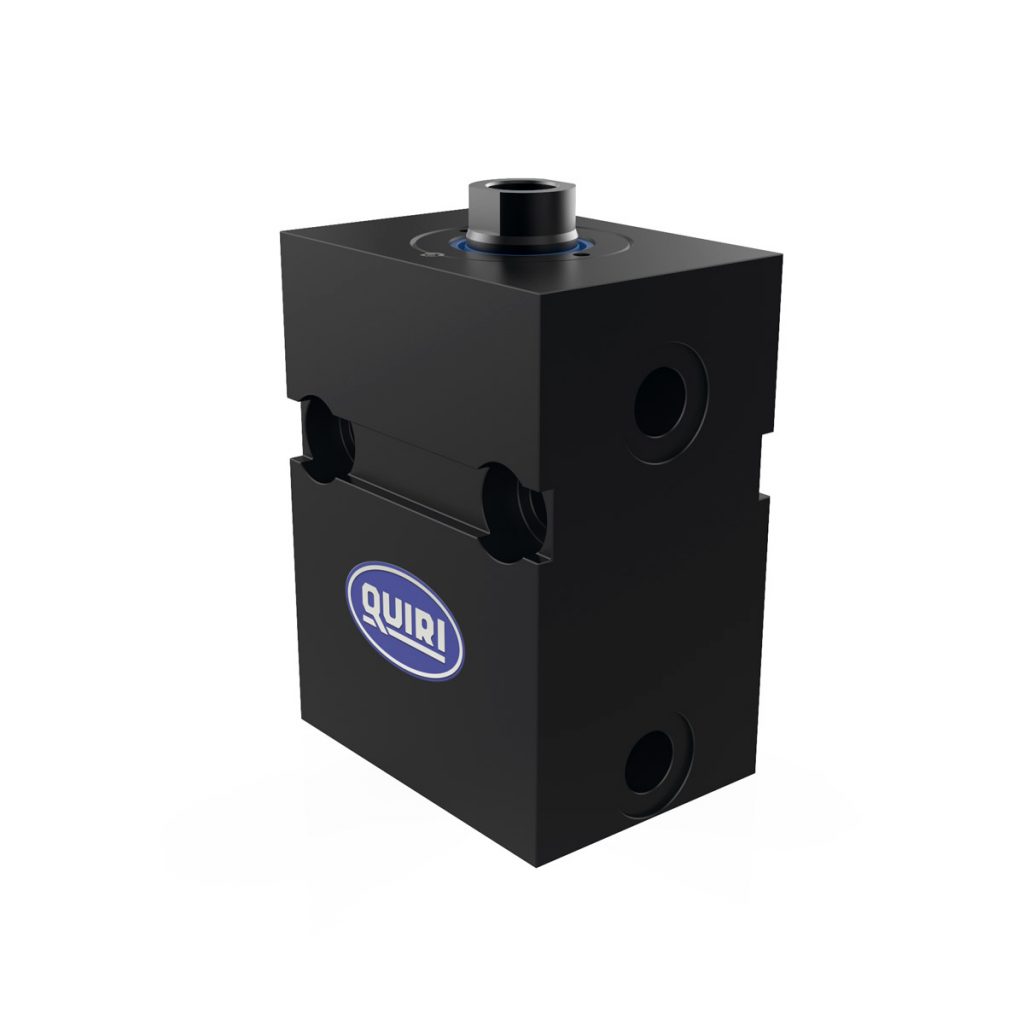

Hydraulic block cylinders BDD

This range is a standardization of BDE.
There are 5 fixtures and feeding types for 6 diameters (16 to 63mm) and 3 strokes per diameter (16 to 100mm).
Strokes on demand will be made trough the use of stroke limitation ring.
On this model, options are the choice of end rods (tapped or threaded) and the seals type (nitrile or viton).
Advantages of this range is prices and availibility.

Print this catalog Consult the guide Consult the general guide

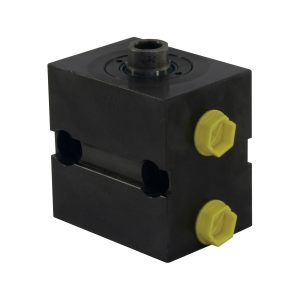

Hydraulic block cylinders – BDD DG Type

Test pressure: 500 bars
Max working pressure: 350 bars

Hydraulic block cylinders – BDD F1 Type

Test pressure: 500 bars
Max working pressure: 350 bars

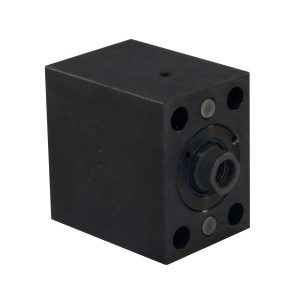

Hydraulic block cylinders – BDD F2 Type

Test pressure: 500 bars
Max working pressure: 350 bars

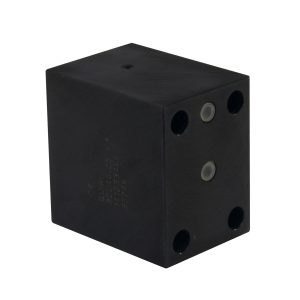

Hydraulic block cylinders – BDD F3 Type

Test pressure: 500 bars
Max working pressure: 350 bars

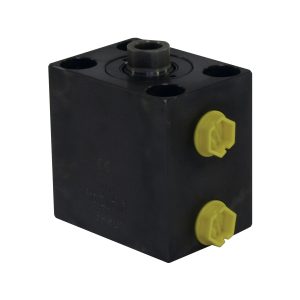

Hydraulic block cylinders – BDD P Type

Test pressure: 500 bars
Max working pressure: 350 bars
Consult the guide

Accessories

Coupling screw for BDD

Pressure screw for BDD
Print this catalog Consult the guide
