Pressure screw for BDD

Print this sheet
Pressure screw for BDD : Hydraulic block cylinders BDD - Quiri

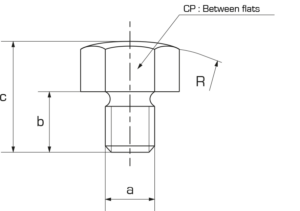

TYPE Dimensions
a b c R CP
VA 10.6 M6 10 20 20 10 3D
VA 25.10 M10 12 22 35 17 3D
VA 40.12 M12 12 22 45 19 3D
V 65.16 M16 20 30 60 24 3D
VA 100.20 M20 25 35 60 30 3D
VA 160.27 M27 30 47 100 41 3D

Compatible products

Hydraulic block cylinders – BDD DG Type

Test pressure: 500 bars
Max working pressure: 350 bars

Hydraulic block cylinders – BDD F1 Type

Test pressure: 500 bars
Max working pressure: 350 bars

Hydraulic block cylinders – BDD F2 Type

Test pressure: 500 bars
Max working pressure: 350 bars

Hydraulic block cylinders – BDD F3 Type

Test pressure: 500 bars
Max working pressure: 350 bars

Hydraulic block cylinders – BDD P Type

Test pressure: 500 bars
Max working pressure: 350 bars

See similar accessories

Coupling screw for BDD
