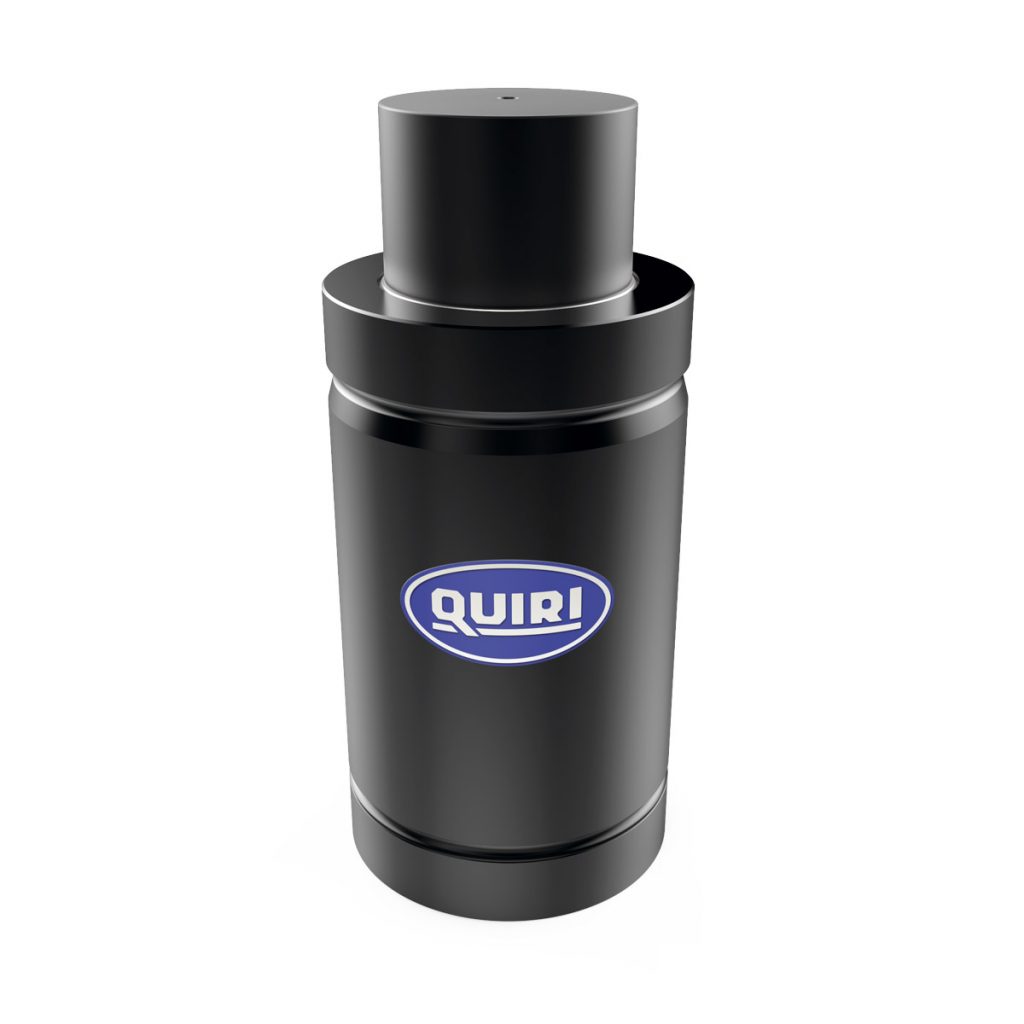

SUPER COMPACT RGC

Industry concerned :
Product concerned : Gas Springs
SUPER COMPACT RGC : Gas Springs - Quiri
Gas spring with body diameter 25 to 150 mm, force 420 to 18300 daN.

Gas spring with following specifications :

  • Super compact size
  • Body diameter : 25 to 150 mm
  • 9 forces available, 420 to 18300 daN
  • Inflating valve on the bottom for all sizes
  • Rear adapter optional for front connexion G1/8″
  • M6 connexion until force 2400 daN, beyond connexion G1/8″
  • Double sealing and lubrification for intensive use
  • Maximum stroke 50 mm
  • Maximum inflating pressure : 150 bar
  • Minimum inflating pressure : 25 bar
  • Temperatur limit : 0 / +70°C
  • Maximum piston rod speed : 1.6 m/s
  • Gaz : nitrogen
