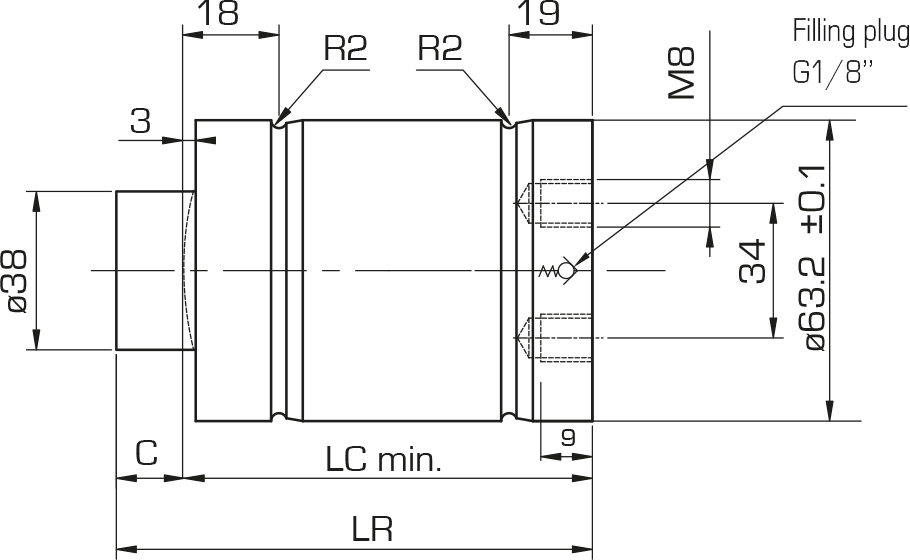

RGC 3000 gas spring
| Type | Force | Stroke C | Reference | Pressure | Force F1 | Force F2 | LR | LC | Mass | 3D Model |
| daN | mm | MPa (bar) | N* | N* | mm | mm | Kg | |||
| RGC | 3000 | 10 | 443102/000 | 15
(150) (!) |
29 460 | 42 500 | 85 | 75 | 1,2 | 3D |
| 16 | 443103/000 | 46 120 | 103 | 87 | 1,3 | 3D | ||||
| 25 | 443104/000 | 48 030 | 130 | 105 | 1,7 | 3D | ||||
| 32 | 443105/000 | 48 920 | 150 | 118 | 1,8 | 3D | ||||
| 40 | 443106/000 | 49 160 | 175 | 135 | 2 | 3D | ||||
| 50 | 443107/000 | 49 720 | 205 | 155 | 2,2 | 3D | ||||
| 65 | 443108/000 | 48 910 | 256 | 191 | 2,6 | 3D |
* (N) = Kgf x 9.80665 | (Kgf)=N x 0.101972 | 1daN=1 x 101N | 1bar=1 x 10-1MPa
Example of order : RGC 3000 C50
Spare Kit : 896546/000
Composition : Seals, valve and lubricant
(!) There is a blue sticker on the gas spring body when it is inflated with a special pressure (<15 MPa)
CAUTION : If you fix RGC type by bottom thread, gas spring’s bottom surface should lay completely on the die. RGC with stroke > 25mm should be attached to the die with screws or flanges (no drop-in mounting).
