HIGH POWER RGT GAS SPRINGS

Industry concerned :
Product concerned : Gas Springs

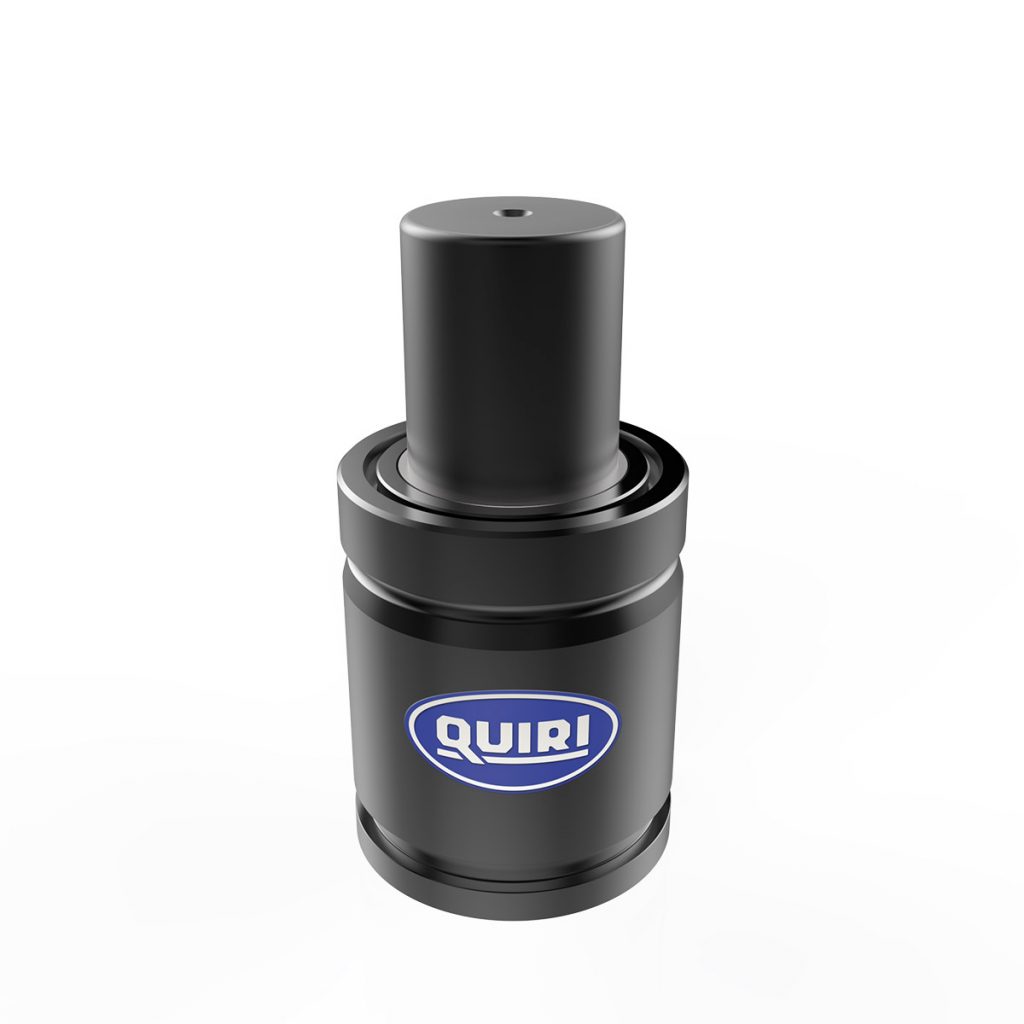

HIGH POWER RGT GAS SPRINGS : Gas Springs - Quiri
Compact gas spring with body diameter 50 to 150 mm, force 1000 to 9500 daN. Identical as RGP type but with thicker bottom for better fastening and linking.

High power RGT gas springs with following specifications :

  • Compact size
  • Thicker bottom for better fastening and linking
  • Body diameter : 50 to 150 mm
  • 5 available forces, 1000 to 9500 daN
  • Inflating valve on the bottom
  • G1/8″ connexion for all sizes
  • One-piece piston and body for higher safety
  • Maximum inflating pressure : 150 bar
  • Minimum inflating pressure : 25 bar
  • Temperature limit : 0 / +70°C
  • Maximum piston rod speed : 1.6 m/s
  • Gas : nitrogen
