RGT 500 gas spring

• Diameter from 32 to 150 mm
• Stroke from 10 to 125 mm
• Force : from 350 to 9500 daN (9.5t)
• Designed especially for car makers
• Solid design (no welding)
• Design and features similar to RGP but can be used with standard G 1/8’’ piping system (except RGT 350)

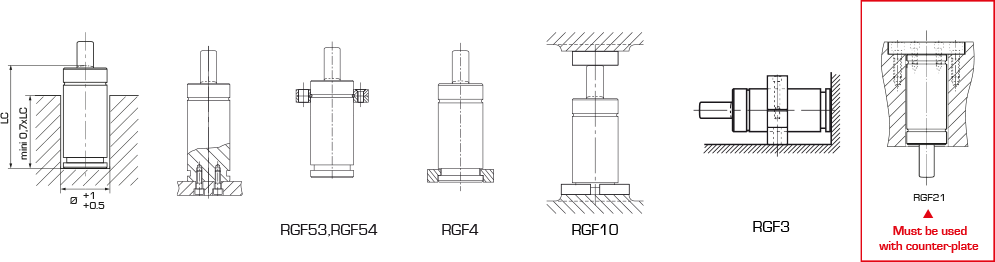

• Long bottom threads recommended for fixtures with screws in the upper die
• Conforms to Toyota standard : SMS DNH 3203 N

Print this sheet

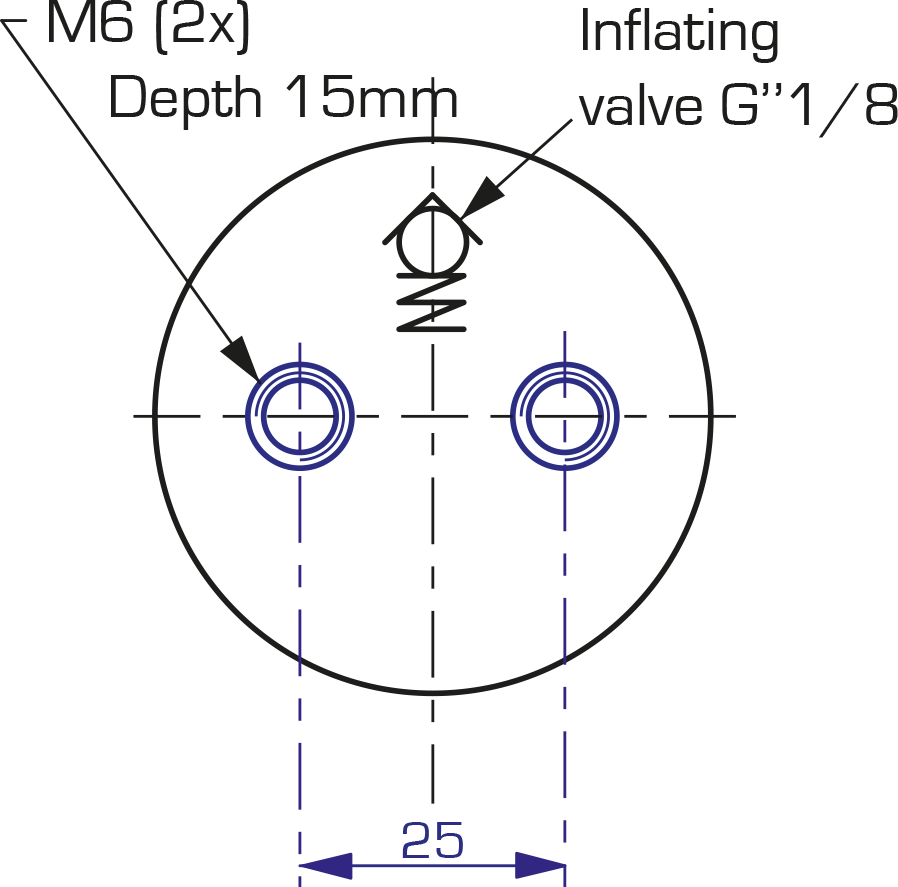

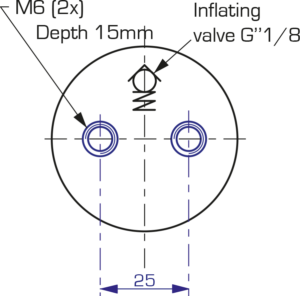

RGT 500 gas spring : HIGH POWER RGT GAS SPRINGS - Quiri - 2
RGT 500 gas spring : HIGH POWER RGT GAS SPRINGS - Quiri - 3
RGT 500 gas spring : HIGH POWER RGT GAS SPRINGS - Quiri - 4
RGT 500 gas spring : HIGH POWER RGT GAS SPRINGS - Quiri - 5
Type Force Stroke C Référence Pressure Force F1 Force F2 LR LC Mass 3D Model
daN mm MPa (bar) N* N* mm mm Kg
RGT 500 10 443561/000-S 15

(150)

(!)



4 720 7 260 60 50 0,337 3D
13 443562/000-S 7 510 66 53 0,388 3D
16 443564/000-S 7 370 72 56 0,439 3D
19 443565/000-S 7 530 78 59 0,490 3D
25 443566/000-S 7 540 90 65 0,541 3D
32 443567/000-S 7 520 104 72 0,592 3D
38 443268/000-S 7 530 116 78 0,643 3D
50 443569/000-S 7 660 140 90 0,694 3D
63 443570/000-S 7 630 166 103 0,745 3D
75 443571/000-S 7 620 190 115 0,796 3D
80 443572/000-S 7 630 200 120 0,847 3D
100 443573/000-S 7 660 240 140 0,898 3D
125 443574/000-S 7 630 290 165 0,949 3D

* (N) = Kgf x 9.80665 | (Kgf)=N x 0.101972 | 1daN=1 x 101N | 1bar=1 x 10-1MPa

Example of order : RGT 500 C50
Spare Kit : 896529/000
Composition : Guide ring, seals, valve and lubricant.
