RGT 2400 gas spring

• Diameter from 32 to 150 mm
• Stroke from 10 to 125 mm
• Force : from 350 to 9500 daN (9.5t)
• Designed especially for car makers
• Solid design (no welding)
• Design and features similar to RGP but can be used with standard G 1/8’’ piping system (except RGT 350)
• Long bottom threads recommended for fixtures with screws in the upper die
• Conforms to Toyota standard : SMS DNH 3203 N

Print this sheet
RGT 2400 gas spring : HIGH POWER RGT GAS SPRINGS - Quiri - 2
RGT 2400 gas spring : HIGH POWER RGT GAS SPRINGS - Quiri - 3
RGT 2400 gas spring : HIGH POWER RGT GAS SPRINGS - Quiri - 4
RGT 2400 gas spring : HIGH POWER RGT GAS SPRINGS - Quiri - 5

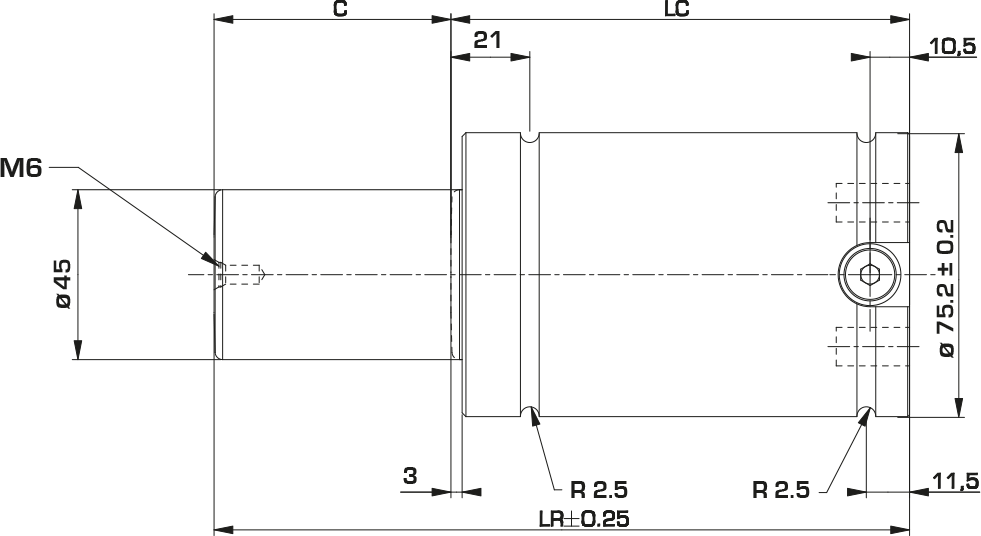

Type Force Stroke C Reference Pressure Force F1 Force F2 LR LC Mass 3D Model
daN mm MPa (bar) N* N* mm mm Kg
RGT 2400 16 443644/000-S 15

(150)

(!)

23 860 36 120 91 75 1,93 3D
19 443645/000-S 36 560 97 78 1,97 3D
25 443646/000-S 37 370 109 84 2,00 3D
32 443647/000-S 37 810 123 91 2,01 3D
38 443648/000-S 38 200 135 97 2,11 3D
50 443649/000-S 38 630 159 109 2.60 3D
63 443650/000-S 38 920 185 122 2,80 3D
75 443651/000-S 39 110 209 134 3,00 3D
80 443652/000-S 39 140 219 139 3,03 3D
100 443653/000-S 39 360 259 159 3,40 3D
125 443654/000-S 39 460 309 184 3,80 3D

* (N) = Kgf x 9.80665 | (Kgf)=N x 0.101972 | 1daN=1 x 101N | 1bar=1 x 10-1MPa

Example of order: RGT 2400 C50
Spare Kit : 896533/000.
Composition : Guide ring, seals, valve and lubricant.

RGT 2400 gas spring : HIGH POWER RGT GAS SPRINGS - Quiri - 6

(!) There is a blue sticker on the gas spring body when it is inflated with a special pressure (<15 MPa)
