Zero Point Clamping System : Hydraulic Clamping Systems - Quiri
QUIRI ZERO POINT design is made up of a patented collet clamping system, and thanks to surface contacts, it offers many advantages. The clearance in the presentation of the elements to be clamped, allows quick and efficient installation and removal of assembly fixtures and parts.

QUIRI ZERO POINT provides an effective pull-in force of up to 30 kN.
This easy and flexible solution, which is extremely precise, is intended for differents areas such as metrology, turning, milling, erosion and surface grinding.
This modular and adaptable tool of quick production change converts setup times into production times.
The clamping plates and standard cylinders provide maximal flexibility and can be adapted to several needs and to various manufacturing sectors.
Our standard range is composed  of the following models :

PZ 20

Effective pull-in force per cylinder : 12 500 N
Retention force per cylinder : 40 000 N

PZ 30

Effective pull-in force per cylinder : 20 000 N
Retention force per cylinder : 60 000 N

PZ 50

Effective pull-in force per cylinder : 30 000 N
Retention force per cylinder : 90 000 N

PZA 30 (automatic loading)

Effective pull-in force per cylinder : 20 000 N
Retention force per cylinder : 60 000 N

Whether flanged, cartridge mounting or as add-on part, our ZERO POINT provide an extremely precise repositionning (5µ) and an adjustment ensuring low wear of plugs and collets.
We also offer custom-made solutions in order to answer to the increasing demands of the market.

ACCESSORIES :



Zero Point Clamping System : Hydraulic Clamping Systems - Quiri - 2

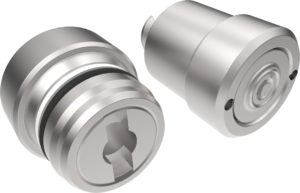

Self-coupler M20x1.5
