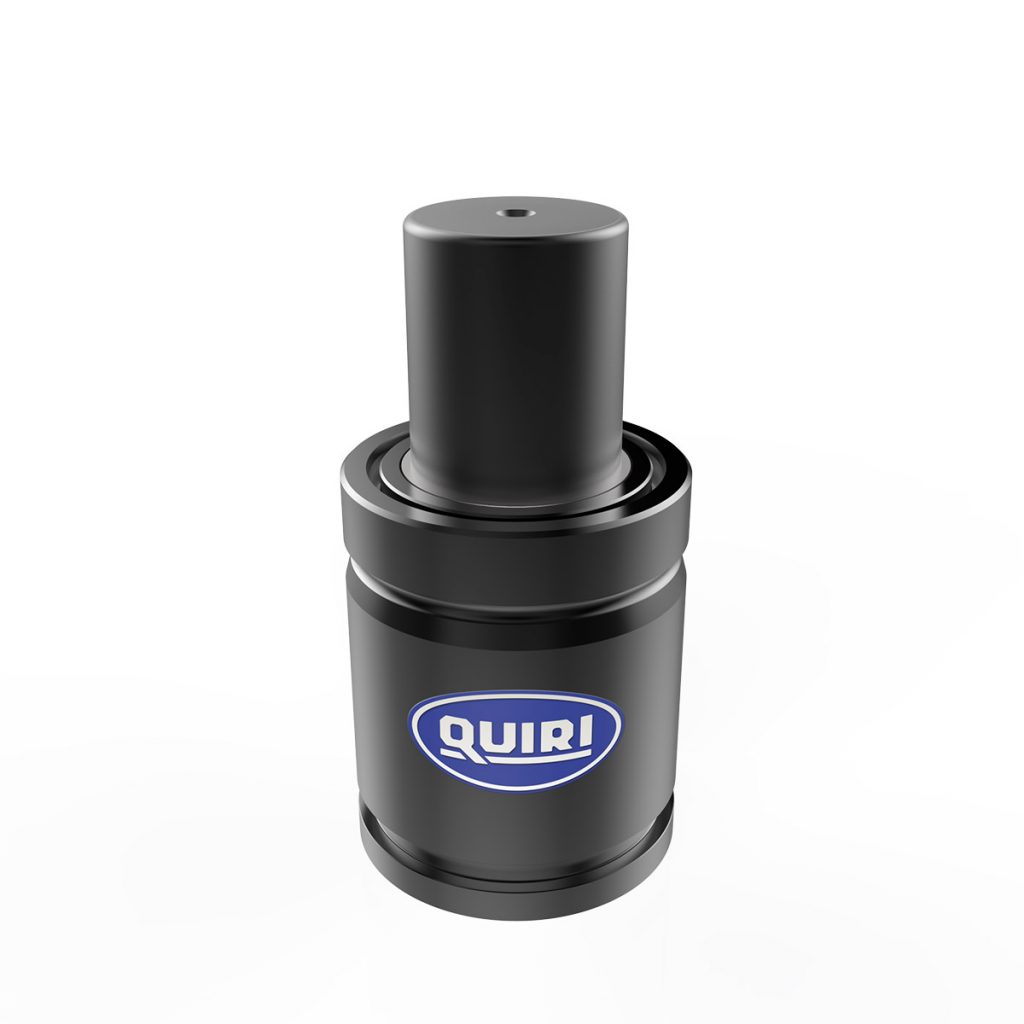

HIGH POWER RGP GAS SPRINGS

Industry concerned :
Product concerned : Gas Springs
HIGH POWER RGP GAS SPRINGS : Gas Springs - Quiri
Gas spring with body diameter 19 to 150 mm, force 170 to 9500 daN.

High power RGP gas springs with following specifications :

  • Compact size
  • Body diameter : 19 to 150 mm
  • 11 available forces, 170 to 9500 daN
  • Inflating valve on the bottom until size 350, beyond connexion on the front
  • M6 connexion from size 350 to 2400 daN, beyond connexion G1/8″
  • One-piece piston and body for higher safety
  • Maximum inflating pressure : 150 bar
  • Minimum inflating pressure : 25 bar
  • Temperature limit : 0 / +70°C
  • Maximum piston rod speed : 1.6 m/s
  • Gas : nitrogen
