RGP 350 gas spring

Features

• Diameter from 19 to 150 mm
• Stroke : from 7 to 125 mm
• Force : from 170 to 9500daN (9.5t)
• Very compact size
• Solid design (no welding)

Print this sheet
RGP 350 gas spring : HIGH POWER RGP GAS SPRINGS - Quiri - 2
RGP 350 gas spring : HIGH POWER RGP GAS SPRINGS - Quiri - 3
RGP 350 gas spring : HIGH POWER RGP GAS SPRINGS - Quiri - 4
RGP 350 gas spring : HIGH POWER RGP GAS SPRINGS - Quiri - 5

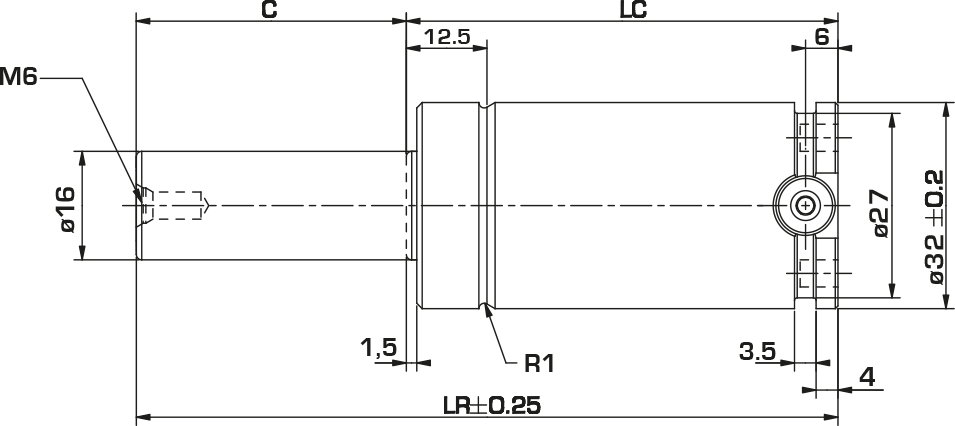

Type Force Stroke C Reference ISO Pressure Force F1 Force F2 LR LC Mass 3D Model
daN mm MPa (bar) N* N* mm mm Kg
RGP 350 10 443241/000-S X 18

(180)

(!)

 3 620 5 080 50 40 0.174 3D
13 443242/000-S X 5 110 56 43 0.204 3D
16 443244/000-S X 5 120 62 46 0.234 3D
19 443245/000-S 5 320 68 49 0.264 3D
25 443246/000-S X 5 280 80 55 0.294 3D
32 443247/000-S 5 220 94 62 0.324 3D
38 443248/000-S X 5 320 106 68 0.354 3D
50 443249/000-S X 5 280 130 80 0.384 3D
63 443250/000-S X 5 300 156 93 0.414 3D
75 443251/000-S 5 280 180 105 0.444 3D
80 443252/000-S X 5 290 190 110 0.474 3D
100 443253/000-S X 5 320 230 130 0.504 3D
125 443254/000-S X 5 310 280 155 0.534 3D

* (N) = Kgf x 9.80665 | (Kgf)=N x 0.101972 | 1daN=1 x 101N | 1bar=1 x 10-1MPa

Example of order : RGP 350 C50
Spare kit : 896582/000
Composition : Guide ring, seals, valve and lubricant.

RGP 350 gas spring : HIGH POWER RGP GAS SPRINGS - Quiri - 6

(!) There is a blue sticker on the gas spring body when it is inflated with a special pressure. (<18 MPa)

RGP 350 gas spring : HIGH POWER RGP GAS SPRINGS - Quiri - 7
