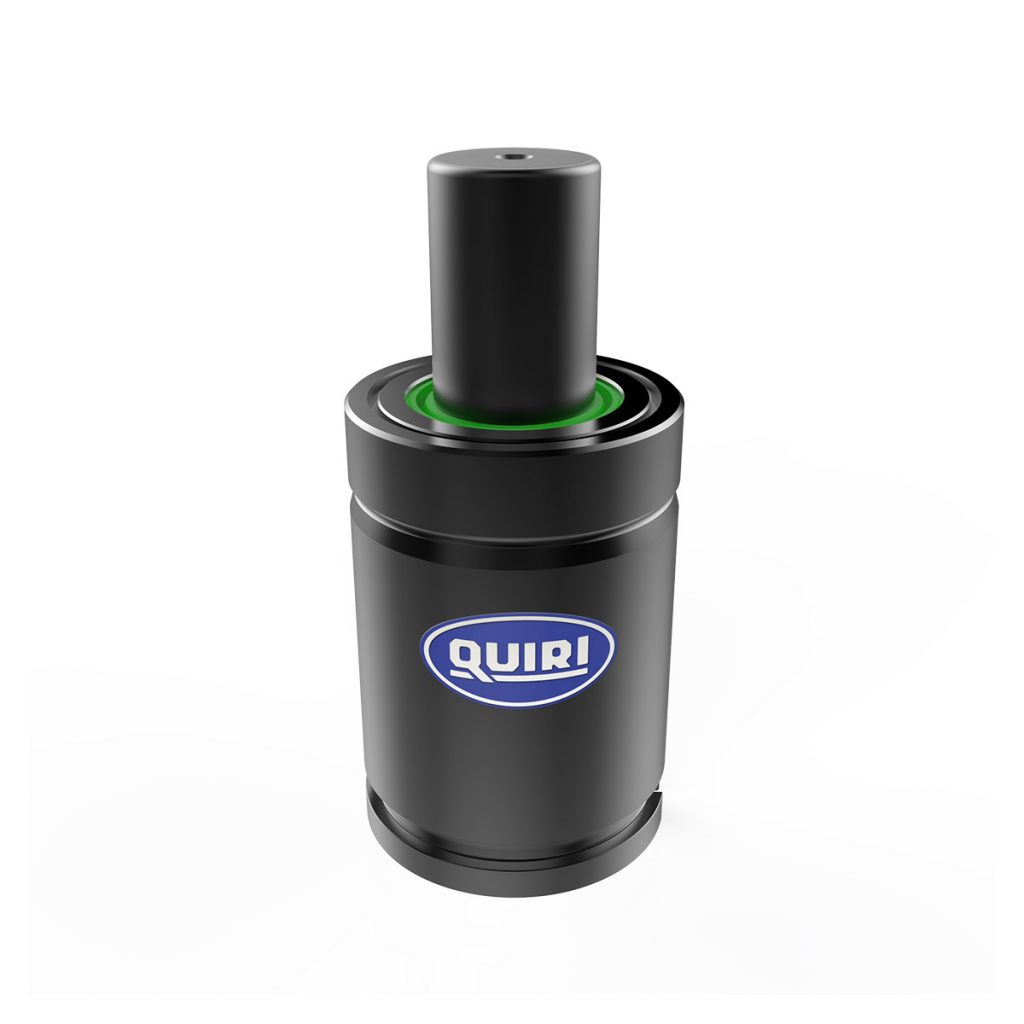

LOW PROFILE RGH GAS SPRINGS

Industry concerned :
Product concerned : Gas Springs
LOW PROFILE RGH GAS SPRINGS : Gas Springs - Quiri
Gas spring with body diameter 45 to 120 mm, force 500 to 5000 daN.

Low profile RGH gas springs with following specifications :

  • Shortest length gas spring
  • Body diameter : 45 to 120 mm
  • 5 available forces, 500 to 5000 daN
  • M6 connexion on the front for all sizes
  • Maximum inflating pressure : 150 bar
  • Minimum inflating pressure : 25 bar
  • Temperature limit : 0 / +70°C
  • Maximum piston rod speed : 0,5 m/s
  • Gas : nitrogen
