LOW PROFILE RGH GAS SPRINGS
Other products
Access LOW PROFILE RGH GAS SPRINGS 's products
Access selection
Back to Gas Springs

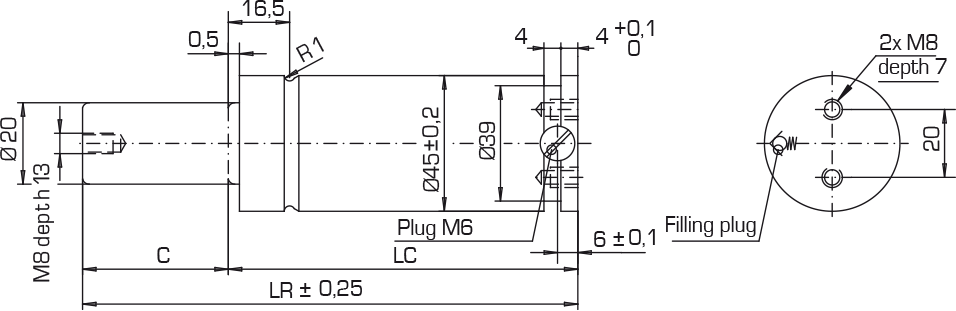

RGH 500 gas spring
| Type | Force | Stroke C | Reference | Pressure | Force F1 | Force F2 | LR | LC | Mass |
| daN | mm | MPa (bar) | N* | N* | mm | mm | Kg | ||
| RGH | 500 | 6 | 442261/000 | 15
(150) |
4 720 | 6 460 | 62 | 56 | 0.83 |
| 12.7 | 442262/000 | 6 440 | 75.4 | 62.7 | 0.85 | ||||
| 19 | 442263/000 | 6 480 | 88 | 69 | 0.87 | ||||
| 25 | 442264/000 | 6 570 | 100 | 75 | 0.89 | ||||
| 38 | 442265/000 | 6 660 | 126 | 88 | 0.93 | ||||
| 50 | 442266/000 | 6 710 | 150 | 100 | 0.97 | ||||
| 63 | 442267/000 | 6 750 | 176 | 113 | 1.01 | ||||
| 80 | 442268/000 | 6 740 | 210 | 130 | 1.06 | ||||
| 100 | 442269/000 | 6 770 | 250 | 150 | 1.12 | ||||
| 125 | 442270/000 | 6 790 | 300 | 175 | 1.20 |
* (N) = Kgf x 9.80665 | (Kgf)=N x 0.101972 | 1daN=1 x 101N | 1bar=1 x 10-1MPa
Example of order : RGH 500 C50
Spare kit : 896518/000
Composition : Guide ring, seals, valve and lubricant.
