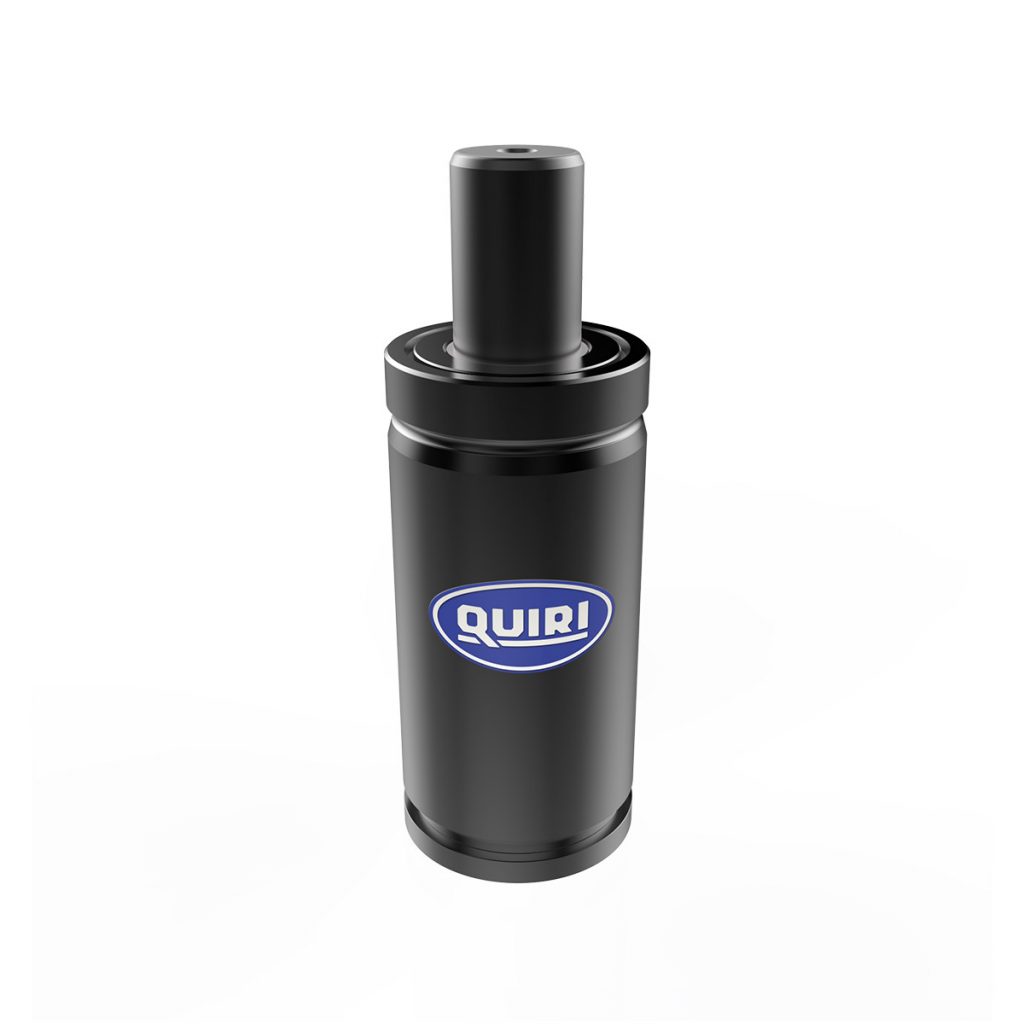

ISO GAS SPRINGS

Industry concerned :
Product concerned : Gas Springs
ISO GAS SPRINGS : Gas Springs - Quiri
Gas spring with body diameter 38 to 165 mm, force 250 to 10000 daN.

ISO gas springs with following specifications :

  • Body diameter : 38 to 165 mm
  • 8 available forces, 250 to 10000 daN
  • G1/8″ connexion on the front for all sizes
  • One-piece piston and body for higher safety
  • Double sealing and oil chamber for intensive use
  • Following ISO norm, expect size 10000 daN
  • Stroke up to 300 mm
  • Maximum inflating pressure : 150 bar
  • Minimum inflating pressure : 25 bar
  • Temperature limit : 0 / +70°C
  • Maximum piston rod speed : 1.6 m/s
  • Gas : nitrogen
