RG 750 gas spring
• Conform to standard dimensions ISO11901-1, CNOMO E.24.54.815.N
• Comply with European directive PED 97/23EC
• Force : from 250 to 10 000 daN (10t)
• Stroke : up to 300mm
• Designed for heavy duty
• Double sealing
• Oil lubricated guide ring
• Solid structure (no welding)
• Can be used in piping system
• Gas : Nitrogen
• Maximum inflating pressure : 150 bar
• Minimum inflating pressure : 25 bar
• Temperature limit : 0/+70°C
• Maximum piston rod speed : 1.6 m/s

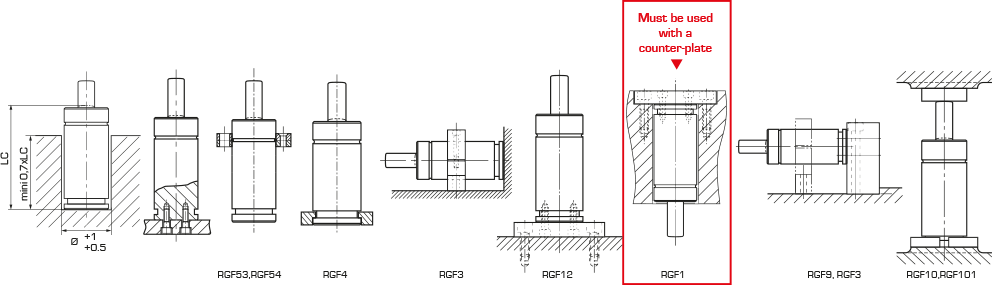

For connection details of ISO standard gas springs, please see CONNECTIONS FOR ISO GAS SPRINGS

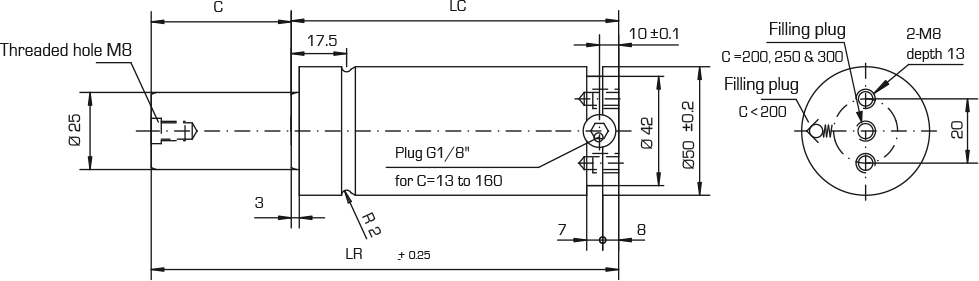

| Type | Force | Stroke C | Reference | ISO | Pressure | Force F1 | Force F2 | LR | LC | Mass | 3D Model |
| daN | mm | MPa (bar) | N* | N* | mm | mm | Kg | ||||
| RG | 750 | 13 | 442337/000 | 15
(150) (!)
|
7 370 | 9 660 | 121 | 108 | 1.30 | 3D | |
| 25 | 442331/000 | X | 10 230 | 145 | 120 | 1.40 | 3D | ||||
| 38 | 442338/000 | 10 550 | 171 | 133 | 1.50 | 3D | |||||
| 50 | 442332/000 | X | 10 700 | 195 | 145 | 1.60 | 3D | ||||
| 63 | 442339/000 | 10 930 | 221 | 158 | 1.70 | 3D | |||||
| 80 | 442333/000 | X | 10 960 | 255 | 175 | 1.80 | 3D | ||||
| 100 | 442334/000 | X | 11 030 | 295 | 195 | 2.00 | 3D | ||||
| 125 | 442335/000 | X | 11 090 | 345 | 220 | 2.20 | 3D | ||||
| 160 | 442336/000 | X | 11 170 | 415 | 255 | 2.50 | 3D | ||||
| 200 (1) | 442330/000 | 11 230 | 495 | 295 | 2.90 | 3D | |||||
| 250 (1) | 442341/000 | 11 250 | 595 | 345 | 3.30 | 3D | |||||
| 300 (1) | 442342/000 | 11 300 | 695 | 395 | 3.70 | 3D |
* (N) = Kgf x 9.80665 | (Kgf)=N x 0.101972 | 1daN=1 x 101N | 1bar=1 x 10-1MPa
Example of order: RG 750 C50
Spare Kits – Composition : Guide ring; seals, valve and lubricant.
– V1 (bronze ring and chrome piston rod) : 896489/000.
– V2 (Black steel ring and piston rod) : 896598/000.
(1) Stroke 125, 160 can not be used in piping system because their inflating valve is on the bottom of cylinder body.
(!) There is a blue sticker on the gas spring body when it is inflated with a special pressure (<15 MPa)
