RG 10000 gas spring
• Conform to standard dimensions ISO11901-1, CNOMO E.24.54.815.N
• Comply with European directive PED 97/23EC
• Force : from 250 to 10 000 daN (10t)
• Stroke : up to 300mm
• Designed for heavy duty
• Double sealing
• Oil lubricated guide ring
• Solid structure (no welding)
• Can be used in piping system
• Gas : Nitrogen
• Maximum inflating pressure : 150 bar
• Minimum inflating pressure : 25 bar
• Temperature limit : 0/+70°C
• Maximum piston rod speed : 1.6 m/s
Does not comply with ISO standard : 20 mm longer and ø165 mm in place of 195 mm.
For connection details of ISO standard gas springs, please see CONNECTIONS FOR ISO GAS SPRINGS
Also exists for high velocity.
For more information, please contact us

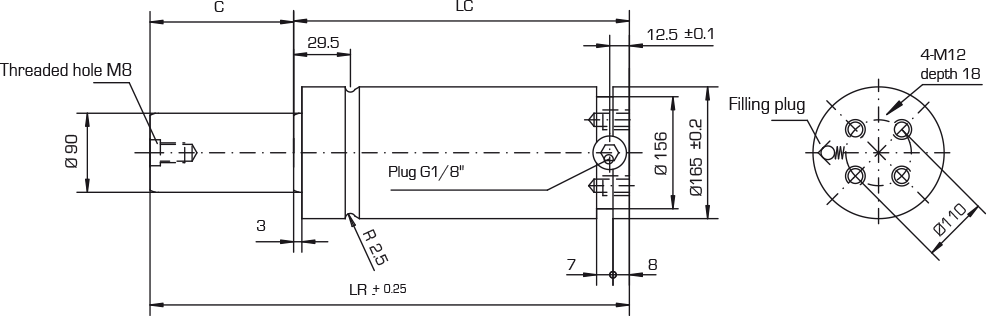

| Type | Force | Stroke C | Reference | Pressure | Force F1 | Force F2 | LR | LC | Mass | 3D Model |
| daN | mm | MPa (bar) | N* | N* | mm | mm | Kg | |||
| RG | 10000 | 80 ** | 442893/000 | 15
(150) (!)
|
95 430 | 137 960 | 340 | 260 | 34.00 | 3D |
| 100 ** | 442894/000 | 140 150 | 380 | 280 | 36.00 | 3D | ||||
| 125 ** | 442895/000 | 142 080 | 430 | 305 | 39.00 | 3D | ||||
| 160 ** | 442896/000 | 143 900 | 500 | 340 | 43.00 | 3D | ||||
| 200 ** | 442897/000 | 145 290 | 580 | 380 | 47.00 | 3D | ||||
| 250 ** | 442898/000 | 146 460 | 680 | 430 | 53.00 | 3D | ||||
| 300 ** | 442899/000 | 147 270 | 780 | 480 | 58.00 | 3D |
* (N) = Kgf x 9.80665 | (Kgf)=N x 0.101972 | 1daN=1 x 101N | 1bar=1 x 10-1MPa
** Gas spring «Cat. II module D1» following PED 2014/68/EU : this gas spring must be returned to the manufacturer for repairing.
Example of order: RG 10000 C50
Spare Kit : 896496/000.
Composition : Guide ring, seals, valve and lubricant.
(!) There is a blue sticker on the gas spring body when it is inflated with a special pressure (<15 MPa)
