RG 3000 gas spring
• Conform to standard dimensions ISO11901-1, CNOMO E.24.54.815.N
• Comply with European directive PED 97/23EC
• Force : from 250 to 10 000 daN (10t)
• Stroke : up to 300mm
• Designed for heavy duty
• Double sealing
• Oil lubricated guide ring
• Solid structure (no welding)
• Can be used in piping system
• Gas : Nitrogen
• Maximum inflating pressure : 150 bar
• Minimum inflating pressure : 25 bar
• Temperature limit : 0/+70°C
• Maximum piston rod speed : 1.6 m/s

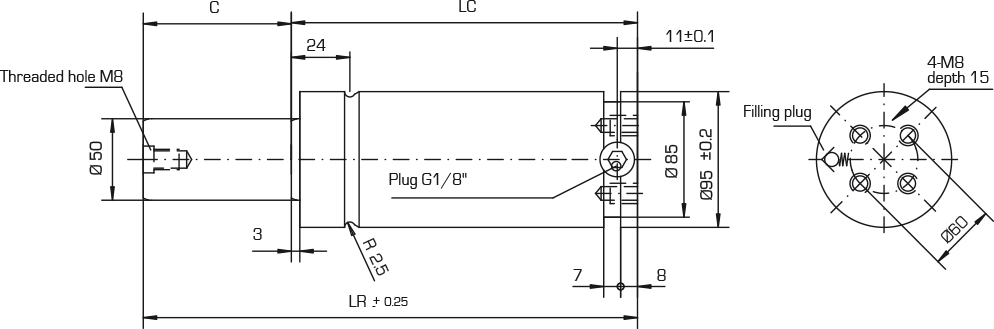

For connection details of ISO standard gas springs, please see CONNECTIONS FOR ISO GAS SPRINGS
| Type | Force | Stroke C | Reference | ISO | Pressure | Force F1 | Force F2 | LR | LC | Mass | 3D Model |
| daN | mm | MPa (bar) | N* | N* | mm | mm | Kg | ||||
| RG | 3000 | 10 | 442737/000 | 15
(150) (!)
|
29 460 | 36 490 | 140 | 130 | 5.90 | 3D | |
| 25 | 442731/000 | X | 40 860 | 170 | 145 | 6.30 | 3D | ||||
| 38 | 442738/000 | 42 680 | 196 | 158 | 6.70 | 3D | |||||
| 50 | 442732/000 | X | 43 720 | 220 | 170 | 7.00 | 3D | ||||
| 63 | 442739/000 | 44 440 | 246 | 183 | 7.50 | 3D | |||||
| 80 | 442733/000 | X | 45 160 | 280 | 200 | 7.90 | 3D | ||||
| 100 | 442734/000 | X | 45 680 | 320 | 220 | 8.50 | 3D | ||||
| 125 | 442735/000 | X | 46 180 | 370 | 245 | 9.30 | 3D | ||||
| 160 | 442736/000 | X | 46 610 | 440 | 280 | 10.40 | 3D | ||||
| 200 | 442740/000 | 46 930 | 520 | 320 | 11.70 | 3D | |||||
| 250** | 442798/000 | 47 180 | 620 | 370 | 13.40 | 3D | |||||
| 300** | 442799/000 | 47 370 | 720 | 420 | 15.00 | 3D |
* (N) = Kgf x 9.80665 | (Kgf)=N x 0.101972 | 1daN=1 x 101N | 1bar=1 x 10-1MPa
** Gas spring «Cat. II module D1» following PED 2014/68/EU (see general guide) : this gas spring must be returned to the manufacturer for repairing.
Example of order : RG 3000 C50
Spare kits – Composition : Guide ring; seals, valve and lubricant.
– V1 (bronze ring and chrome piston rod) : 896491/000
– V2 (Black steel ring and piston rod) : 896603/000
(!) There is a blue sticker on the gas spring body when it is inflated with a special pressure (<15 MPa)
