Swing clamps with helical rotation

The swing clamp with helical rotation is an economical solution when the space dedicated to his movement allows its integration.

All parts are in high-strength steel, treated anti-seizure and anti-corrosion.
All our swing clamps include venting port.
Clamping arms are removable without any tool.
All cylinders include an index on the rod.

The operating pressure from 30 to 250 bar enables a force at the clamping point between 0.2 and 24 kN.

Print this catalog Consult the guide

Swing clamps with helical rotation

Double-acting swing clamp – 250 bar – Supplied through counter-bores under the head HL

Double-acting swing clamp – 250 bar – Fastening with flange ring with counter-bores HL5

Double-acting swing clamp – 250 bar – Fastening with flange ring with taps HT5

Double-acting swing clamp – 250 bar – Fastening with base with counter-bores HFL5

Double-acting swing clamp – 250 bar – Fastening with base with taps HFT5

Double-acting swing clamp – 250 bar – Screw cartridge HCV5

Double-acting swing clamp – 350 bar – Fastening with base with counter-bores HLF

Double-acting swing clamp – 250 bar – Fastening with flange ring with taps HT

Double-acting swing clamp – 250 bar – Fastening with base with counter-bores HTF

Universal double-acting swing clamp – 500 bar – Supplied through taps or counter-bores under the head ULT

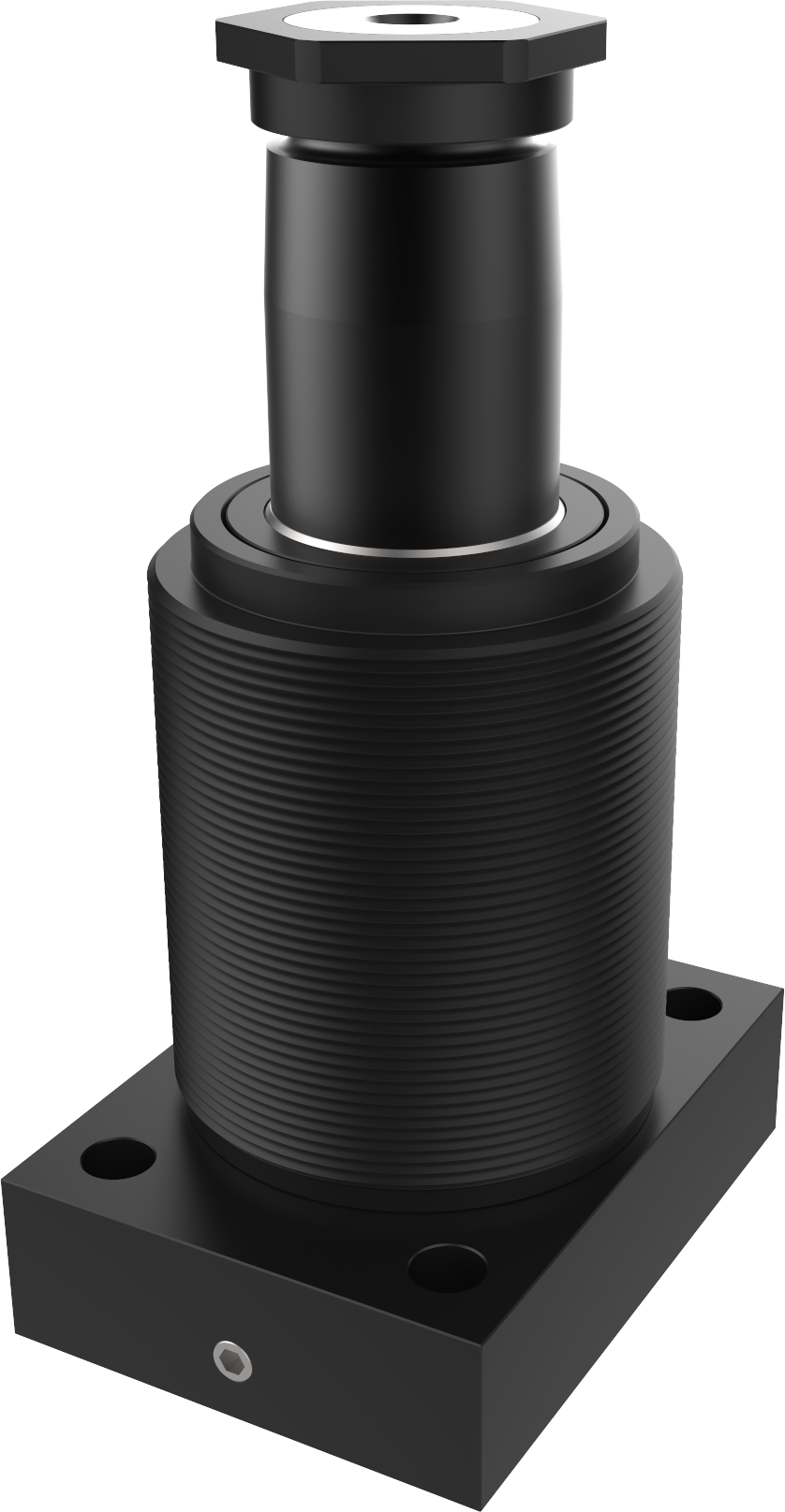

Universal double-acting swing clamp – 500 bar – Threaded body supplied through counter-bores in the base UFL

Universal double-acting swing clamp – 500 bar – Threaded body supplied through taps in the base UFT

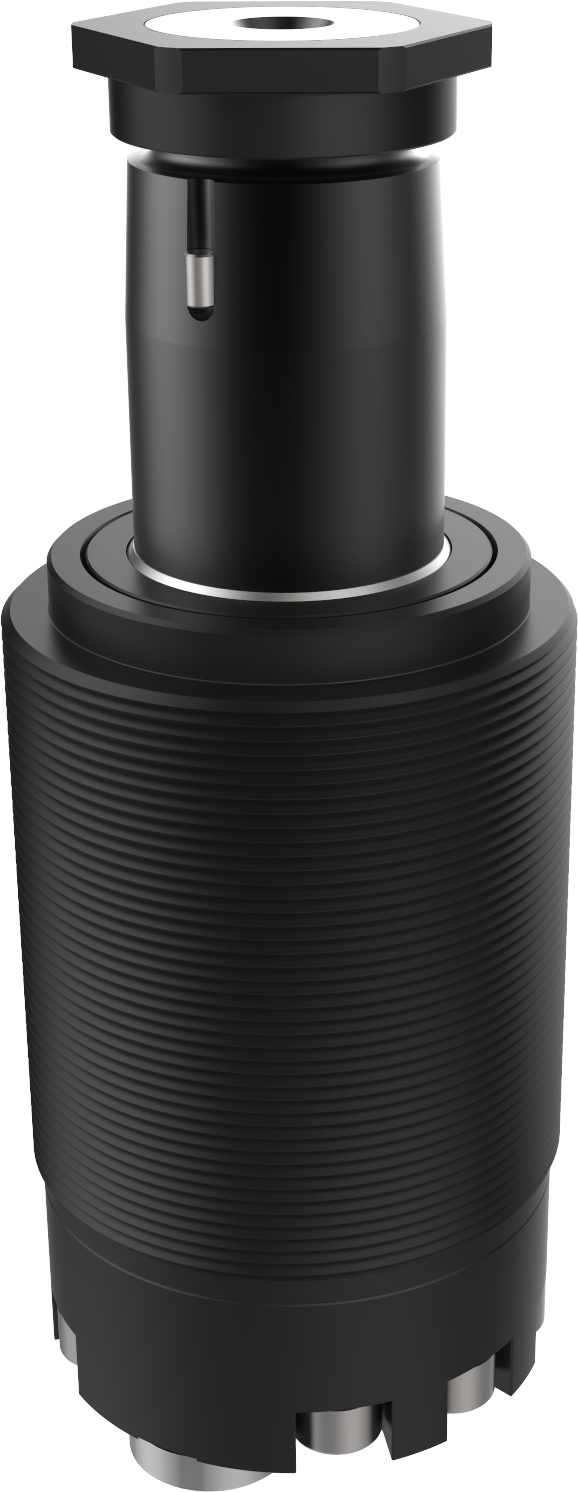

Universal double-acting swing clamp – 500 bar – Threaded body supplied through taps in the base UCT

Universal double-acting swing clamp – 500 bar – Flanged block version UBL

Universal double-acting swing clamp – 500 bar – Counter-bored block version UBT

Universal double-acting swing clamp – 350 bar – Flanged cartridge version UBC

Universal double-acting swing clamp – 500 bar – Screw cartridge version UVCF

Double-acting swing clamp – 70 bar – Supplied through taps or counter-bores under the head HL7

Accessories

Clamping arm for swing clamp: P5 BP5

Short clamping arm – rod with 15° taper – For swing clamp size: 11 – 12 – 21 – 31 – 41 BC

Short clamping arm – rod with 1:10 taper – For swing clamp size: 11 – 12 – 21 – 31 – 41 BCK

Medium clamping arm – rod with 15° taper – For swing clamp size: 11 – 12 – 21 – 31 – 41 BM

Medium clamping arm – rod with 1:10 taper – For swing clamp size: 11 – 12 – 21 – 31 – 41 BMK

Long clamping arm – rod with 15° taper – For swing clamp size: 11 – 12 – 21 – 31 – 41 BL

Long clamping arm – rod with 1:10 taper – For swing clamp size: 11 – 12 – 21 – 31 – 41 BLK

Nut for clamp type H12 and H21

Lock washer for clamp type P11, P21

Nut for clamp type P31 and P41 with 15° taper

Nut for clamp with 1:10 taper

Short clamping arm – rod with taper: 1:10 – For swing clamp size: 15 – 25 – 35 – 45 BCK

Medium clamping arm – rod with taper: 1:10 – For swing clamp size: 15 – 25 – 35 – 45 BMK

Long clamping arm – rod with taper: 1:10 – For swing clamp size: 15 – 25 – 35 – 45 BLK

Fastening nut of clamping arm EK

Long clamping arm B7

Lock nut: EK
