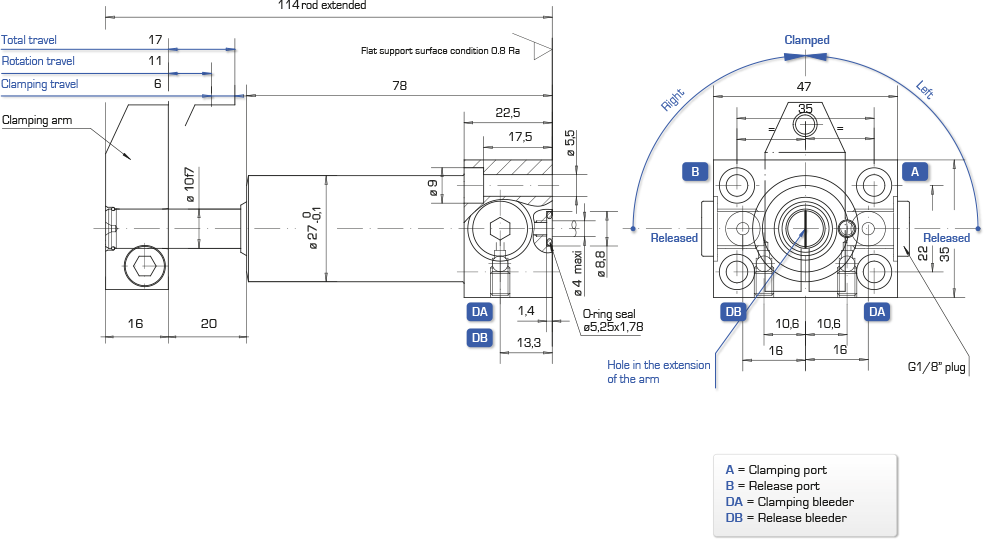

Double-acting swing clamp – 250 bar – Fastening with base with counter-bores HFL5
Double-acting - with rotation travel

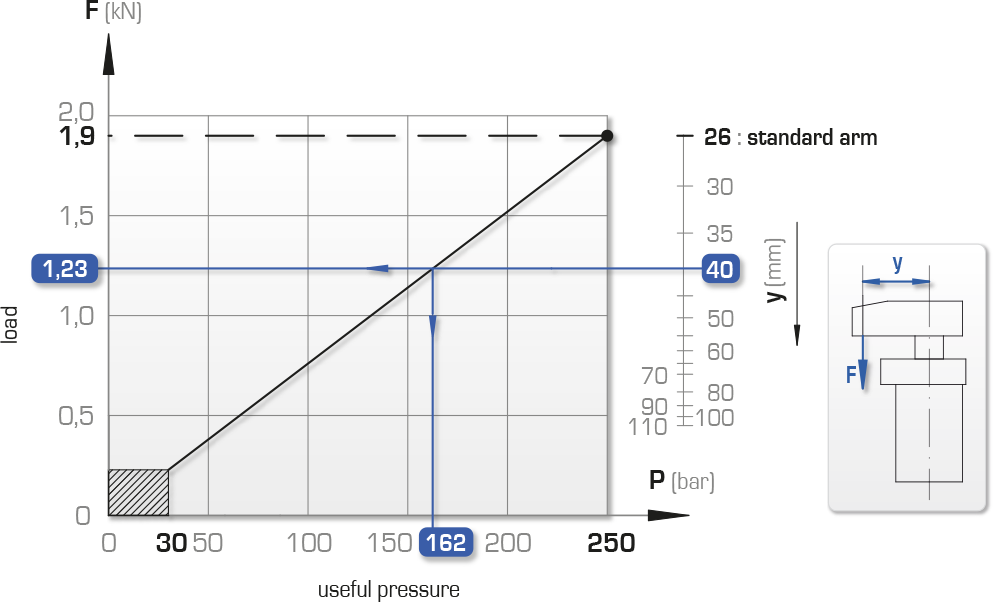

Max force at 250 bar: 1.9 kN
• clamp body in burnished treated steel
• total travel 17 mm
• clamping travel 6 mm
• right or left helical rotation, 90° ± 2°
• hole in the extension of the arm
• custom clamping arm
• 60°, 45° or 0° rotation
• position check
• special dimension
• nozzle on counter-bore ports
The clamps are supplied with seals, plugs (depending on version) and ring.
O-rings, 5.25 x 1.78 – 90 Shore
(Dimensions and tightening torque : see Clamping arm for swing clamp).
| F max
at 250 bar |
Flow rate
max A |
Flow rate
max B |
Swept volume
A B |
Section
A B |
Direction
of rotation
|
Type | Reference | |
|
|
||||||||
| kN | l/min | l/min | cm3 | cm2 | ||||
| 1.9 | 0.2 | 0.36 | 1.67 | 0.98 | right | HF 5 D | 191 173/050 | |
| 3 | 1.77 | left | HF 5 G | 191 173/150 |
