Double-acting swing clamp – 250 bar – Fastening with flange ring with taps HT5

Double-acting - with rotation travel
Force at 250 bar: 1.9 kN

Supply through G 1/8’’ tap

• clamp body in burnished treated steel
• total travel 17 mm
• clamping travel 6 mm
• right or left helical rotation, 90° ± 2°
• hole in the extension of the arm

• custom clamping arm
• 60°, 45° or 0° rotation
• position check
• special dimension
• nozzle on counter-bore ports

The clamps are supplied with seals, plugs (depending on version) and ring.

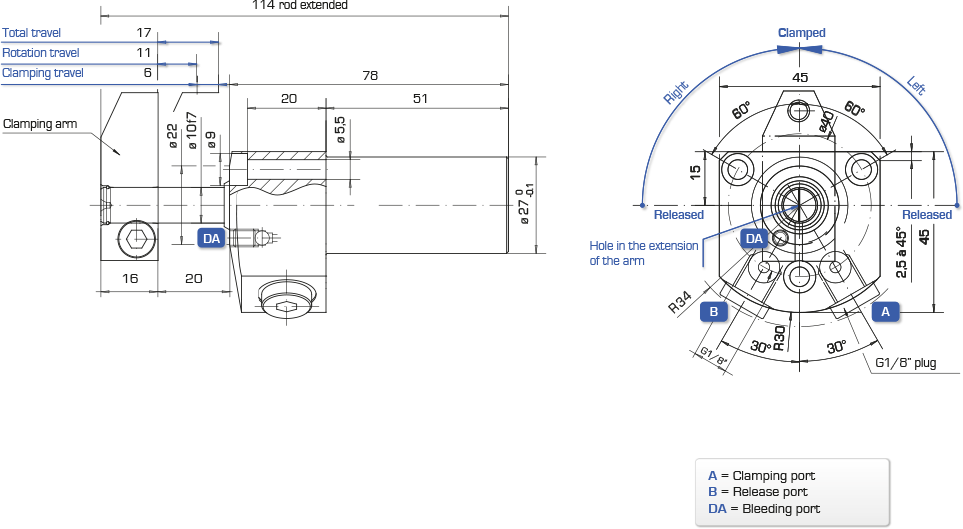

(Dimensions and tightening torque : see Clamping arm for swing clamp).

Print this sheet
Double-acting swing clamp – 250 bar – Fastening with flange ring with taps HT5 : Swing clamps with helical rotation - Quiri - 2
F max

at

250

bar

Flow rate

max

A

Flow rate

max

B

Swept volume

A

B

Section

A

B

Direction

of rotation



Type Reference






kN l/min l/min cm3 cm2
1.9 0.2 0.36 1.67 0.98 right HT 5 D 191 170/050
3 1.77 left HT 5 G 191 170/150

Product accessories

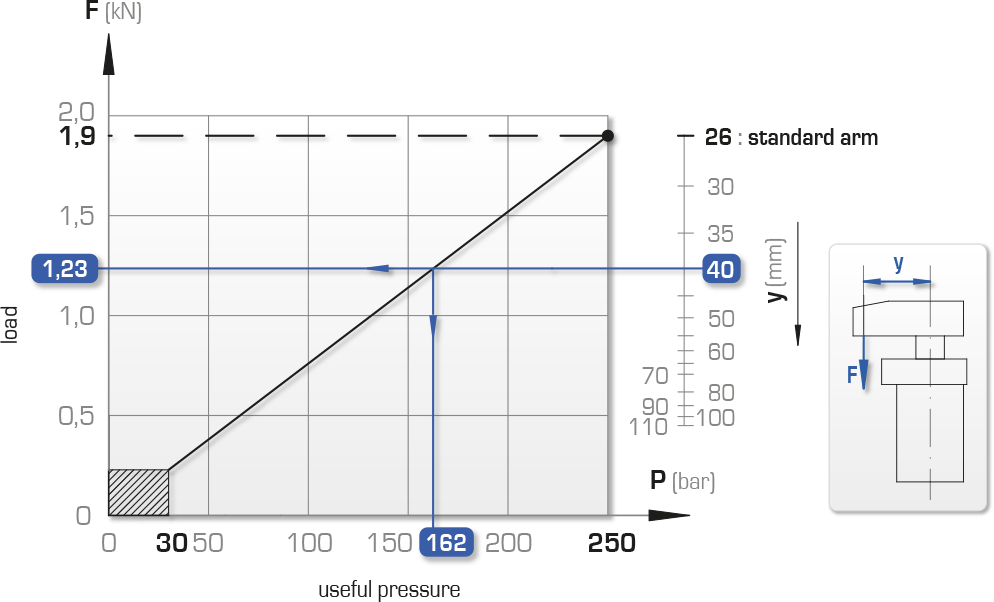

Product charts
