Universal double-acting swing clamp – 500 bar – Threaded body supplied through taps in the base UFT

Double-acting - with rotation travel
Force at 500 bar: 6.5 to 42 kN

Threaded body supplied through taps on the base

Universal double-acting swing clamp – 500 bar – Threaded body supplied through taps in the base UFT : Swing clamps with helical rotation - Quiri

Characteristics
Nota

Characteristics

• treated burnished steel body
• right or left helical rotation, 90°±2°
• total travel = rotation travel + clamping travel
• metal scraper as standard
• max. pressure : 500 bar
• clamping arm: see BCK, BMK, BLK

Nota

Clamps are supplied with seals, lock nut and lock washer.
(Dimensions and tightening torque on see : EK).

Print this sheet

Universal double-acting swing clamp – 500 bar – Threaded body supplied through taps in the base UFT : Swing clamps with helical rotation - Quiri - 2

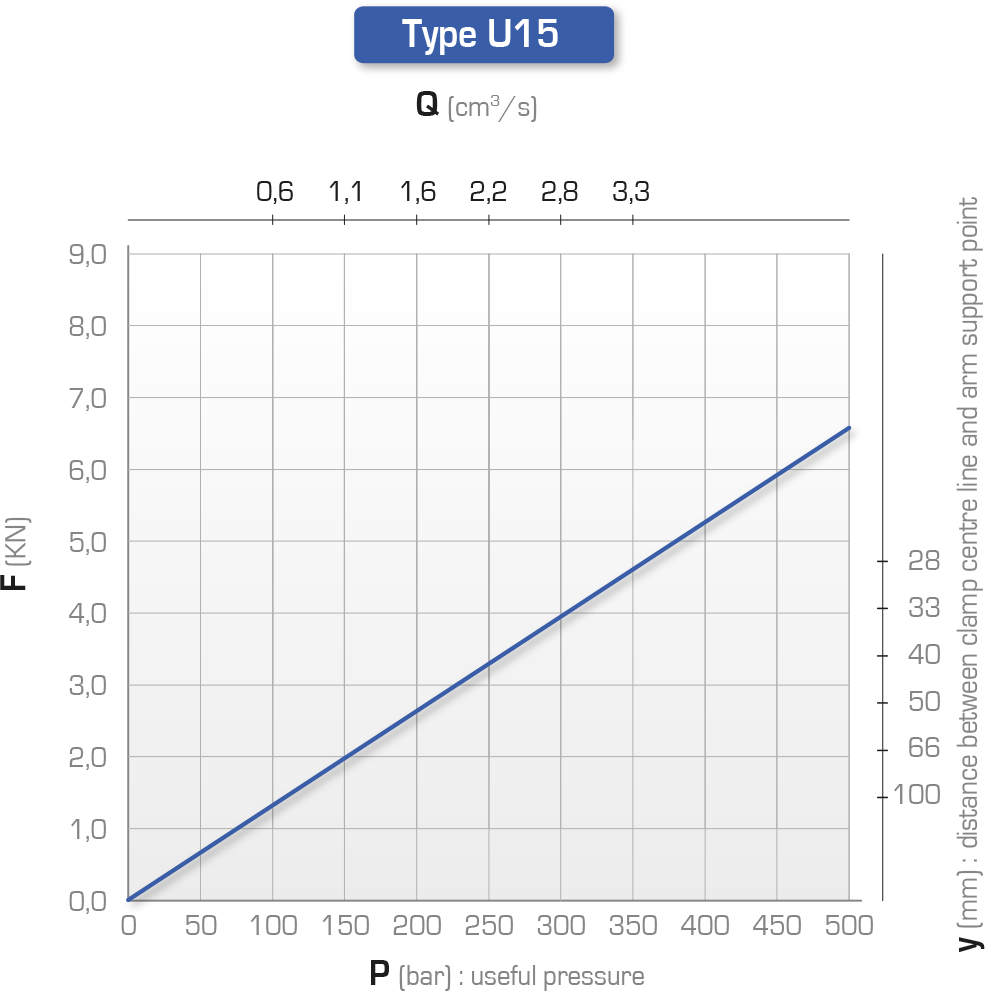

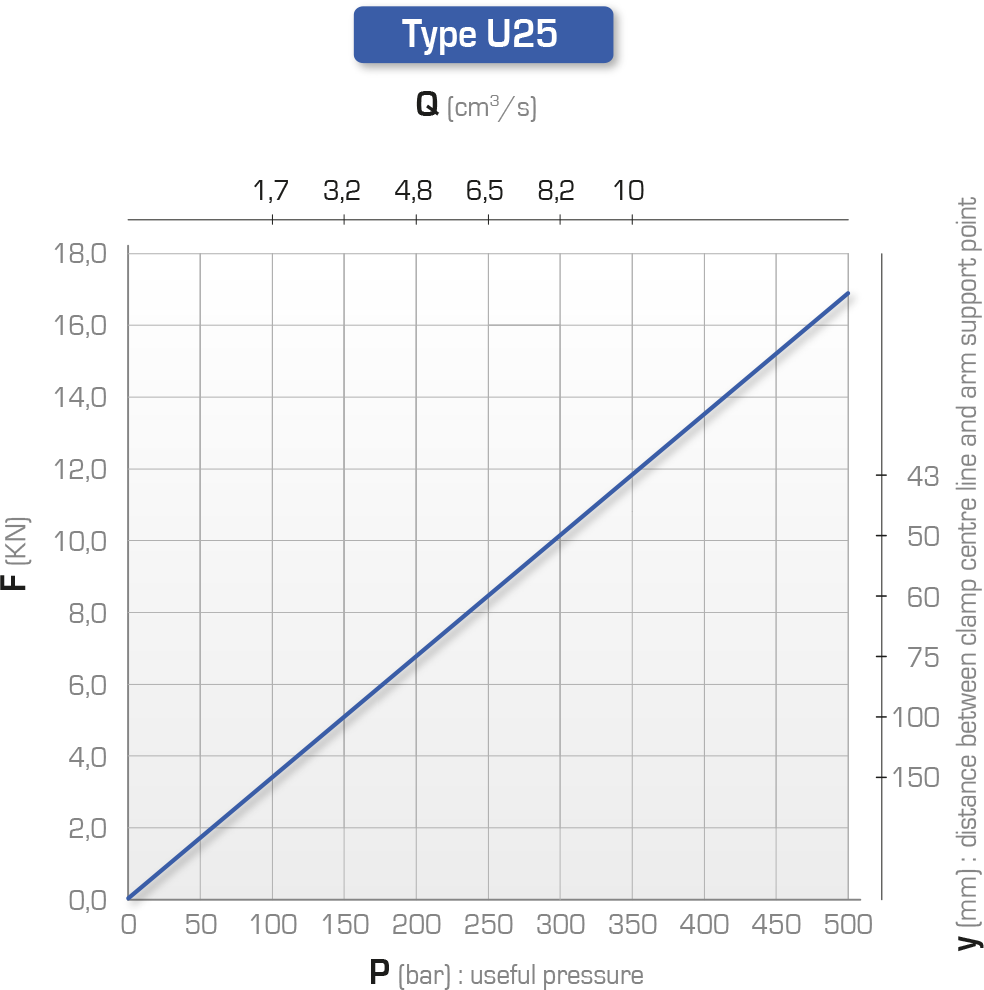

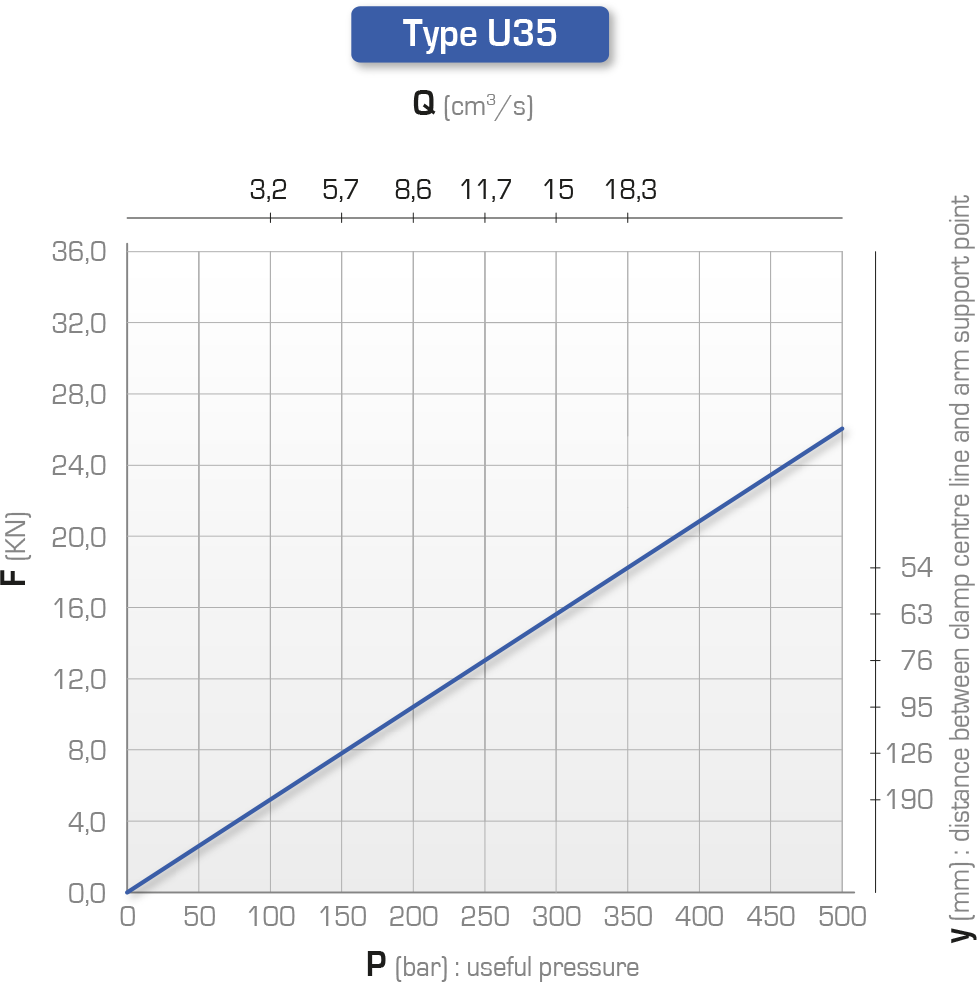

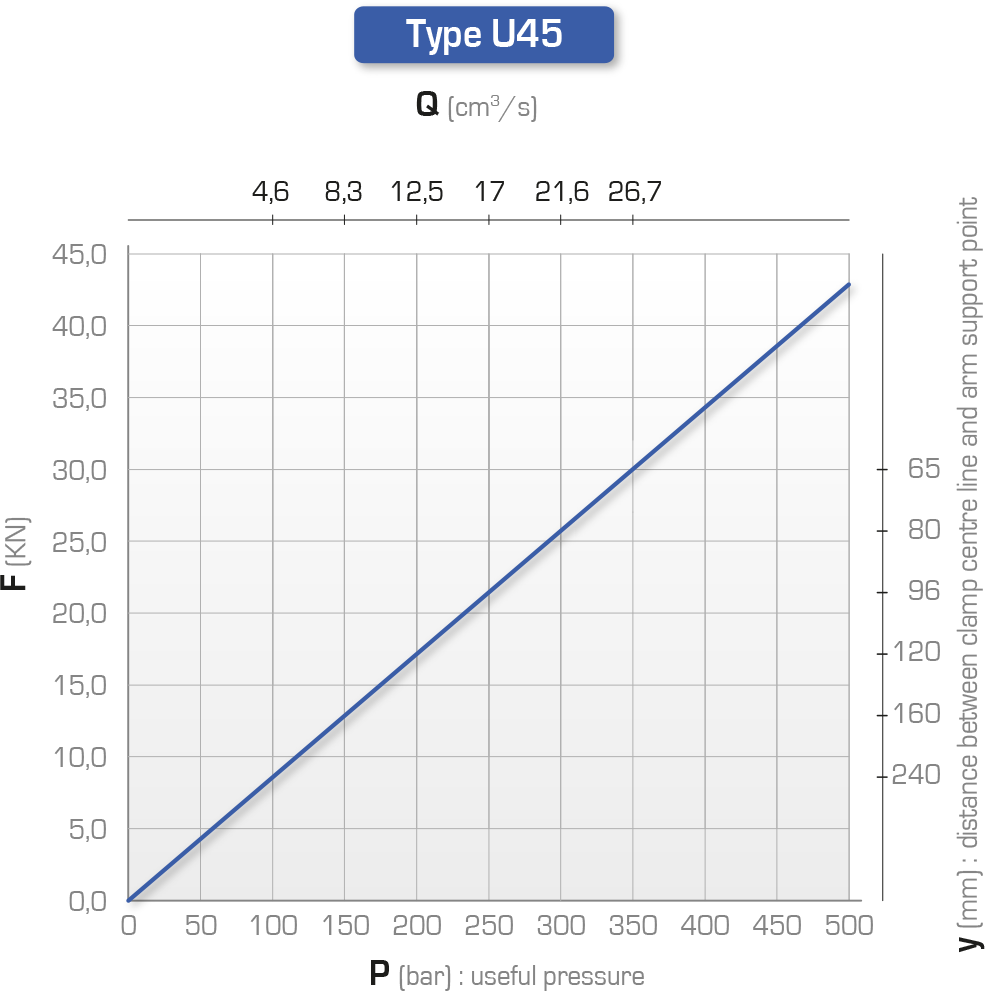

Definition of forces depending on clamping arm: see below
Important recommendations: consult the guide

Force with 500 bar	Force with 350 bar	clamping travel	rotation travel	total travel	Section A B	Swept volume A B	Direction of rotation	Indexation	Type	Reference

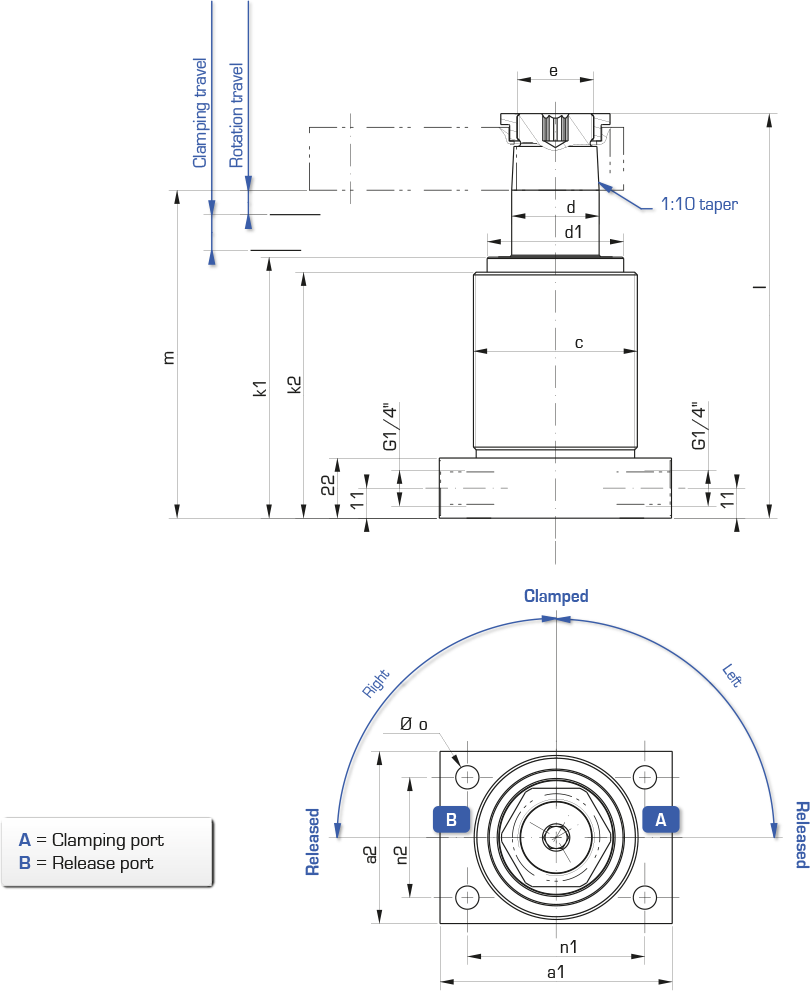

Force with 500 bar	Force with 350 bar	clamping travel	rotation travel	total travel	Section A B	Swept volume A B	Direction of rotation	Indexation	Type	Reference	a1	a2	c	ød	ød1	e	k1	k2	l	m	n1	n2	øo	øo1	r
kN	kN	mm	mm	mm	cm²	cm³					mm	mm		mm	mm		mm	mm	mm	mm	mm	mm	mm		mm
6.5	4.6	11	8	19	1.76 4.9	3.34 9.31	right	WITHOUT	UFT 15	191 230/000	65	45	M45x1.5	20	38	M18x1.5	84.5	79	127	106	50	30	6.5	M6	15
							right	WITH		191 230/050
							left	WITHOUT		191 230/100
							left	WITH		191 230/150
17	11.8	13	9	22	4.52 12.56	9.94 27.63	right	WITHOUT	UFT 25	191 231/000	85	63	M60x1.5	32	50	M28x1.5	95.5	90	148	120	65	44	8.5	M8	28
							right	WITH		191 231/050
							left	WITHOUT		191 231/100
							left	WITH		191 231/150
26	18	15	11	26	7.06 19.63	18.35 51.03	right	WITHOUT	UFT 35	192 204/000	100	80	M80x2	40	55	M35x1.5	108	102	172	138	80	60	13.5	M12	31
							right	WITH		192 204/050
							left	WITHOUT		192 204/100
							left	WITH		192 204/150
42	30	15	11	26	11.53 31.17	31.13 84.16	right	WITHOUT	UFT 45	192 205/000	115	90	M90x2	50	66	M45x1.5	114	108.5	184	144	90	68	16	M14	37.5
							right	WITH		192 205/050
							left	WITHOUT		192 205/100
							left	WITH		192 205/150
