Long clamping arm – rod with 1:10 taper – For swing clamp size: 11 – 12 – 21 – 31 – 41 BLK

For swing clamp size: 11 - 12 - 21 - 31 - 41
rod end with 1:10 taper

Long clamping arm – rod with 1:10 taper – For swing clamp size: 11 – 12 – 21 – 31 – 41 BLK : Swing clamps with helical rotation - Quiri

Definition

• with tap and bevel dimensions e, p, s, t

Characteristics

• turns over 360°
• treated for corrosion protection
• material: 2C45
• maximum service pressure: 125 bar

Option

Special arms made on request.

Nota

The clamping force and maximum flow rate reduce as the arm length increases (see tables on the guide and H clamp charts).

Make sure that the rod is held while fastening the screw
see figure 1 on the guide

Print this sheet

Long clamping arm – rod with 1:10 taper – For swing clamp size: 11 – 12 – 21 – 31 – 41 BLK : Swing clamps with helical rotation - Quiri - 2

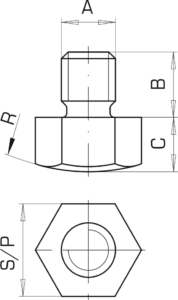

Type	Reference
Type	Reference	A	B	C	R	S/P
			mm	mm	mm	mm
VB 15.8	811 261/000	M8	10	10	20	13
VB 40.12	811 202/000	M12	12	10	45	19
VB 65.16	811 203/000	M16	20	10	60	24
VB 100.20	811 204/000	M20	25	10	60	30

Long clamping arm – rod with 1:10 taper – For swing clamp size: 11 – 12 – 21 – 31 – 41 BLK : Swing clamps with helical rotation - Quiri - 3

Tap	Bevel	Type	Reference
Tap	Bevel	Type	Reference	a	b	c	ød	e	f	g	h	k	l	øn	p	ør	s	t
				mm	mm	mm	mm	mm	mm		mm	mm	mm	mm	mm	mm	°	°
WITH	WITH	BLK 11	901-3-016	68	30	45	17.46	21	53	M8	17	1	3	25	13.5	26	7.5	7.5
WITH	WITH	BLK 12	901-3-020	91	34	64	19.46	22	74	M8	19	1	5	33	17.5	28	12.5	6
WITH	WITH	BLK 21	901-3-025	110	40	75	24.46	24	90	M12	23	1	4	–	17	34	10	10
WITH	WITH	BLK 31	901-3-036	134	55	90	35.46	40	106.5	M16	30	1	5	47	22	45	7	10
WITH	WITH	BLK 41	901-3-042	155	70	100	40.93	50	120	M20	33	2	6	61	27	52	8.5	8.5
