Double-acting swing clamp – Flange cartridge – 250 bar PCB

Double-acting - planar rotation
Max force at 250 bar: 4 to 24 kN

Flanged cartridge type

Double-acting swing clamp – Flange cartridge – 250 bar PCB : Swing clamps with planar rotation - Quiri

Characteristics

• rotation in left or right plane
• rod indexing
• clamps with bleeders
• for machining of indexing on the clamping arm see BC, BCK, BM, BMK, BL, BLK

• different travel ranges on request
• choice of rotation angle in 1° increments (please specify with the order)
• metal scraper (please specify with the order)
• optional indexing (please specify with the order)

Options 15° taper

STANDARD WITH INDEXING

• different travel ranges on request
• choice of rotation angle in 1° increments (please specify with the order)
• metal scraper (please specify with the order)
• also with no optional indexing (please specify with the order)

Nota

Clamps are supplied with O-rings, lock nut and lock washer.
Clamps with a 15° taper are supplied with a lock nut and lock washer (dimensions and tightening torque: see Lock washer for clamp type P11, P21 and Nut for clamp type P31 and P41).

Print this sheet

Double-acting swing clamp – Flange cartridge – 250 bar PCB : Swing clamps with planar rotation - Quiri - 2

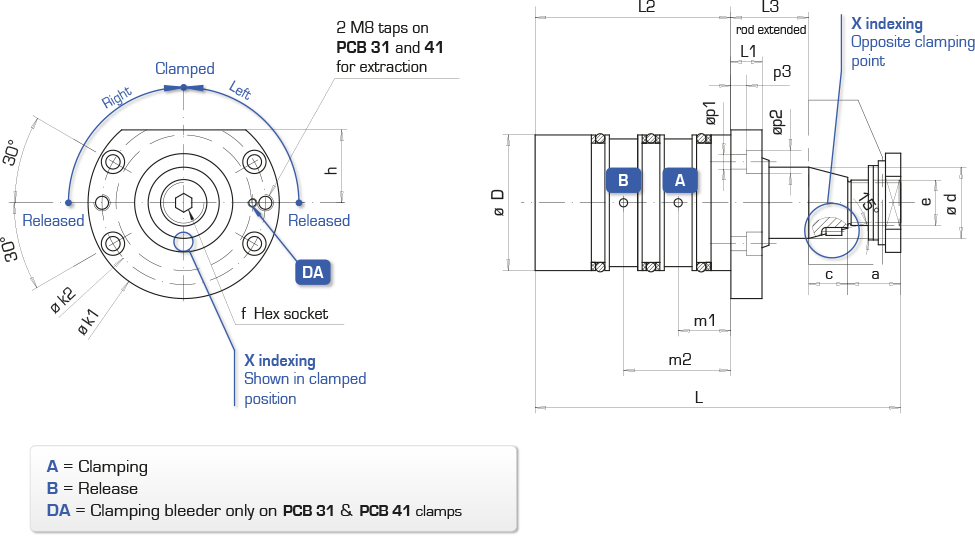

Recess machining dimensions: see below

Definition of forces depending on clamping arm: consult the guide
Important recommendations: consult the guide
NOT INDEXED: The pin may be removed using a drift punch

F max at 250 bar	Rod ød	Travel	Max flow rate A	Swept volume A B	Direction of rotation	α = 15° (with indexing)			α = 1:10 (without indexing)
F max at 250 bar	Rod ød	Travel	Max flow rate A	Swept volume A B	Direction of rotation	Type	Reference	e1	Reference	e2	a	c	øD	f	h	øk1 øk2	L	L1	L2	L3	m1	m2	p1	p2	p3
kN	mm	mm	l/min	cm³							mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
4	18	8	0.4	5.3	right	PCB 11 DX	191 161/050	M12x1.5	650-R-018	M16x1.5	13	10	36	5	20	58	121	10.5	77.5	20.5	14	49	5.5	9	5.5	3D
4	18	8	0.4	7.4	left	PCB 11 GX	191 161/150	M12x1.5	650-L-018	M16x1.5	13	10	36	5	20	47	121	10.5	77.5	20.5	14	49	5.5	9	5.5	3D
8	25	12	0.9	15	right	PCB 21 DX	191 069/050	M16x1.5	650-R-025	M22x1.5	16	14	52	6	28	76	152	12	95	27	16	56	6.5	10.5	6	3D
8	25	12	0.9	21	left	PCB 21 GX	191 069/150	M16x1.5	650-L-025	M22x1.5	16	14	52	6	28	63	152	12	95	27	16	56	6.5	10.5	6	3D
16	36	12	2	41	right	PCB 31 DX	191 080/050	M24x1.5	650-R-036	M30x1.5	18	20	72	10	38	110	195	18	124	33	17	77	10.5	17	8	3D
16	36	12	2	53	left	PCB 31 GX	191 080/150	M24x1.5	650-L-036	M30x1.5	18	20	72	10	38	90	195	18	124	33	17	77	10.5	17	8	3D
24	42	12	3	74	right	PCB 41 DX	191 070/050	M30x1.5	650-R-042	M36x1.5	20	22	85	12	45	125	218	18	143	33	22	88	10.5	17	8	3D
24	42	12	3	88	left	PCB 41 GX	191 070/150	M30x1.5	650-L-042	M36x1.5	20	22	85	12	45	105	218	18	143	33	22	88	10.5	17	8	3D

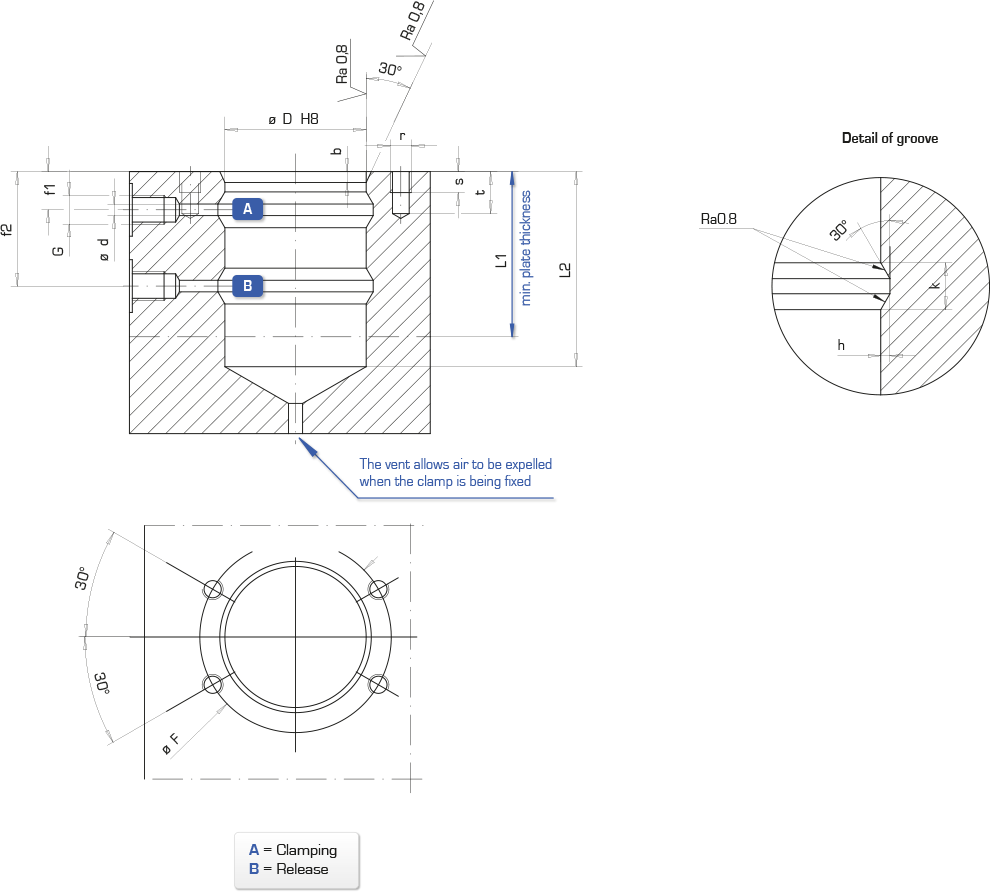

Recess machining dimensions

Double-acting swing clamp – Flange cartridge – 250 bar PCB : Swing clamps with planar rotation - Quiri - 3

IMPORTANT:
Provide bleeders at highest points of fixtures
General tolerances Js13
Round off and polish sharp angles

Type	øD H8	b	L1 min	L2 min	ød	øF	f1	f2	G	h min	k	r	s	t
	mm	mm	mm	mm	mm	mm	mm	mm		mm	mm		mm	mm
PCB 11	36	2	62	79	3	47	14	48.75	G1/4’’	0.5	4	M5	8	10
PCB 21	52	3	70	97	4	63	16	56	G1/4’’	1	6	M6	10	12
PCB 31	72	3	95	126	5	90	17	77	G1/4’’	1	8	M10	14	17
PCB 41	85	4	106	145	5	105	22	88	G1/4’’	1.25	10	M10	14	17

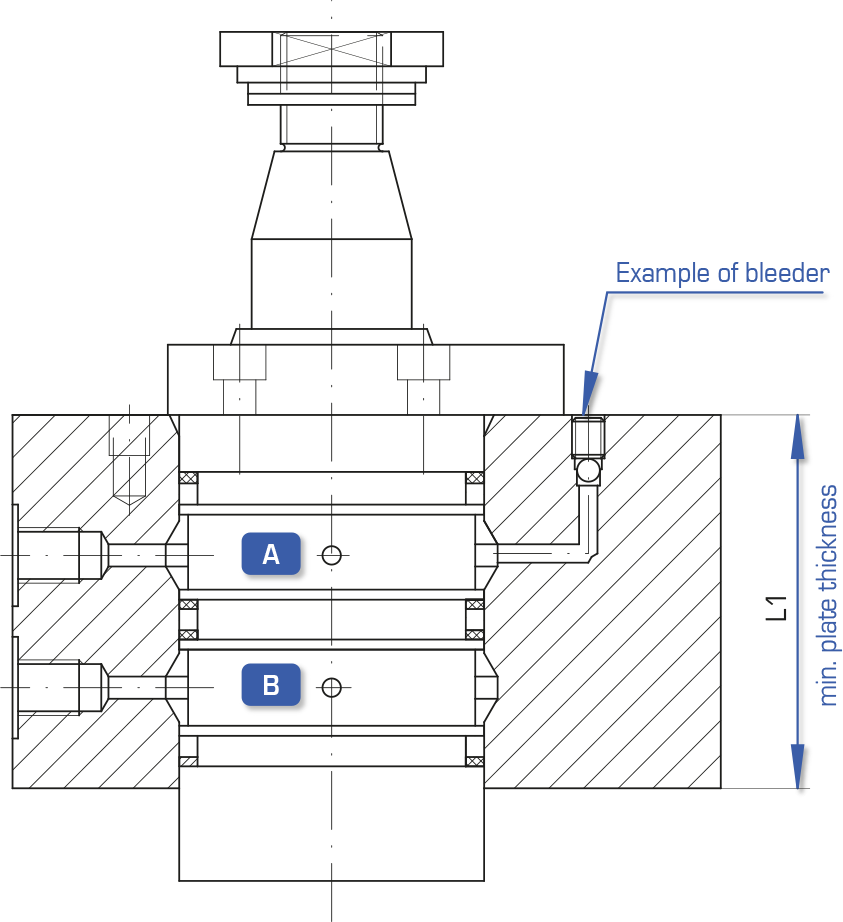

For example: Fixture through a plate

Double-acting swing clamp – Flange cartridge – 250 bar PCB : Swing clamps with planar rotation - Quiri - 4

Double-acting swing clamp – Flange cartridge – 250 bar PCB

Characteristics

Options 1:10 taper

Options 15° taper

Nota

Recess machining dimensions

For example: Fixture through a plate

Product accessories

Fastening accessories: EMB

Short clamping arm – rod with 15° taper – For swing clamp size: 11 – 12 – 21 – 31 – 41 BC

Short clamping arm – rod with 1:10 taper – For swing clamp size: 11 – 12 – 21 – 31 – 41 BCK

Medium clamping arm – rod with 15° taper – For swing clamp size: 11 – 12 – 21 – 31 – 41 BM

Medium clamping arm – rod with 1:10 taper – For swing clamp size: 11 – 12 – 21 – 31 – 41 BMK

Long clamping arm – rod with 15° taper – For swing clamp size: 11 – 12 – 21 – 31 – 41 BL

Long clamping arm – rod with 1:10 taper – For swing clamp size: 11 – 12 – 21 – 31 – 41 BLK

Lock washer for clamp type P11, P21

Nut for clamp type P31 and P41 with 15° taper
