Home » Quiri Hydromécanique » Hydraulic Clamping Systems » Swing clamps with helical rotation » Short clamping arm – rod with 15° taper – For swing clamp size: 11 – 12 – 21 – 31 – 41 BC

Short clamping arm – rod with 15° taper – For swing clamp size: 11 – 12 – 21 – 31 – 41 BC

for swing clamp size: 11 - 12 - 21 - 31 - 41
rod end with 15° taper

Definition

Available as standard in three versions:
• with bevels
• with bevels and indexing
• with no bevels, with indexing.

Characteristics

• turns over 360°
• treated for corrosion protection
• material: 2C45
• maximum service pressure: 250 bar

Option

Special arms made on request.

Nota

The clamping force and maximum flow rate reduce as the arm length increases (see tables on the guide and Long clamping arm BLK).

Make sure the rod is held while fastening the screw.

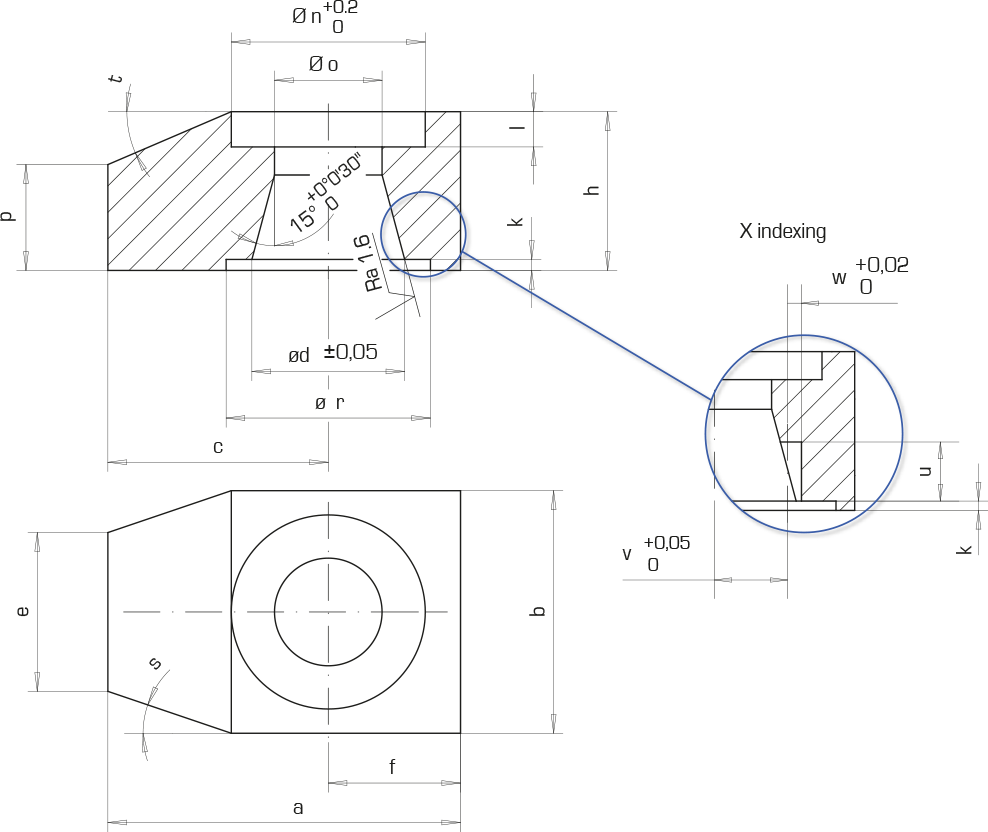

see figure 1 on the guide

Print this sheet
Short clamping arm – rod with 15° taper – For swing clamp size: 11 – 12 – 21 – 31 – 41 BC : Swing clamps with helical rotation - Quiri - 2
Tap Bevels Indexing Type Reference
a





 b





 c





 ød





 e





 f





 h





 k





 l





 øn





 øo





 p





 ør





 s





 t





 u





 øv





 w




mm mm mm mm mm mm mm mm mm mm mm mm mm ° ° mm mm
WITHOUT WITH WITHOUT BC 11 811 159/000 40 30 25 17.46 18 15 17 1 3 23 12.2 12 26 25 25 – – – 3D
WITHOUT WITH WITH B5 11 X 811 159/050 40 30 25 17.46 18 15 17 1 3 23 12.2 12 26 25 25 6.3 7.8 r1.5 3D
WITHOUT WITHOUT WITH BC 11 X N 811 159/150 40 30 25 17.46 – 15 17 1 3 23 12.2 – 26 – – 6.3 7.8 r1.5 3D
WITHOUT WITH WITHOUT BC 12 811 309/000 49 34 32 19.46 20 17 19 1 5 25 14.2 14 28 25 25 – – –
WITHOUT WITH WITH B5 12 X 811 309/050 49 34 32 19.46 20 17 19 1 5 25 14.2 14 28 25 25 7.3 8.8 r1.5
WITHOUT WITHOUT WITH BC 12 X N 811 309/150 49 34 32 19.46 – 17 19 1 5 25 14.2 – 28 – – 7.3 8.8 r1.5
WITHOUT WITH WITHOUT BC 21 811 160/000 55 40 35 24.46 23 20 23 1 4 31 16.2 16.5 34 30 30 – – – 3D
WITHOUT WITH WITH B5 21 X 811 160/050 55 40 35 24.46 23 20 23 1 4 31 16.2 16.5 34 30 30 10.4 10.25 r1.5 3D
WITHOUT WITHOUT WITH BC 21 X N 811 160/150 55 40 35 24.46 – 20 23 1 4 31 16.2 – 34 – – 10.4 10.25 r1.5 3D
WITHOUT WITH WITHOUT BC 31 811 163/000 72 55 44.5 35.46 30 27.5 30 1 5 41 24.5 20 45 30 30 – – – 3D
WITHOUT WITH WITH B5 31 X 811 163/050 72 55 44.5 35.46 30 27.5 30 1 5 41 24.5 20 45 30 30 17 14.5 r2 3D
WITHOUT WITHOUT WITH BC 31 X N 811 163/150 72 55 44.5 35.46 – 27.5 30 1 5 41 24.5 – 45 – – 17 14.5 r2 3D
WITHOUT WITH WITHOUT BC 41 811 161/000 85 70 50 40.93 36 35 33 2 6 51 30.5 20 52 45 45 – – – 3D
WITHOUT WITH WITH B5 41 X 811 161/050 85 70 50 40.93 36 35 33 2 6 51 30.5 20 52 45 45 18 17.5 r2 3D
WITHOUT WITHOUT WITH BC 41 X N 811 161/150 85 70 50 40.93 – 35 33 2 6 51 30.5 – 52 – – 18 17.5 r2 3D
