Double-acting swing clamp – 250 bar – Supplied through counter-bores under the head PL

Double-acting - planar rotation
Max force at 250 bar: 4 to 24 kN

Supply through counter-bores under the flange ring
Fastening with screws

Double-acting swing clamp – 250 bar – Supplied through counter-bores under the head PL : Swing clamps with planar rotation - Quiri

Characteristics

• rotation in left or right plane
• rod indexing
• clamps with bleeders
• for machining of indexing on the clamping arm see BC, BCK, BM, BMK, BL, BLK

• different travel ranges on request
• choice of rotation angle in 1° increments (please specify with the order)
• metal scraper (please specify with the order)
• optional indexing (please specify with the order)

Options 15° taper

STANDARD WITH INDEXING

• different travel ranges on request
• choice of rotation angle in 1° increments (please specify with the order)
• metal scraper (please specify with the order)
• also with no optional indexing (please specify with the order)

Nota

Clamps are supplied with O-rings, lock nut and lock washer.
Clamps with a 15° taper are supplied with a lock nut and lock washer (dimensions and tightening torque: see Lock washer for clamp type P11, P21 and Nut for clamp type P31 and P41).
O-rings:

5.28 x 1.78 – 90 Shore for PL11 and PL21 A51156
7.65 x 1.78 – 90 Shore for PL31 and PL41 A51150

Print this sheet

Double-acting swing clamp – 250 bar – Supplied through counter-bores under the head PL : Swing clamps with planar rotation - Quiri - 2

Definition of forces depending on clamping arm: consult the guide
Important recommendations: consult the guide
NOT INDEXED: The pin may be removed using a drift punch

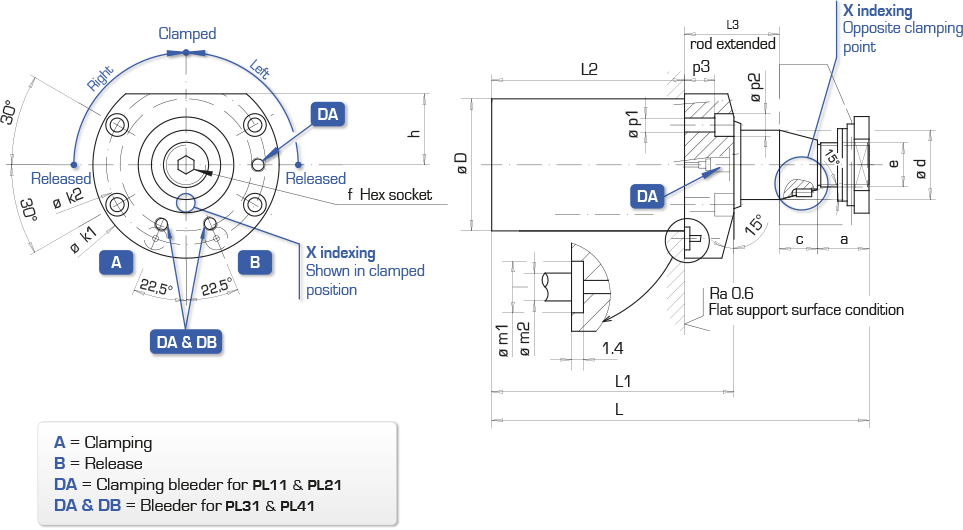

F max at 250 bar	Rod ød	Travel	Max flow rate A	Swept volume A B	Direction of rotation	α = 15° (with indexing)			α = 1:10 (without indexing)
F max at 250 bar	Rod ød	Travel	Max flow rate A	Swept volume A B	Direction of rotation	Type	Reference	e1	Reference	e2	a	c	øD	f span-ner	h	k1 k2	L	L1	L2	L3	m1 m2	p1	p2	p3
kN	mm	mm	l/min	cm³							mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
4	18	8	0.4	5.3	right	PL 11 DX	191 163/050	M12x1.5	620-R-018	M16x1.5	13	10	36	5	20	58	121	88	66	32	8.8	5.5	9	13	3D
		8		7.4	left	PL 11 GX	191 163/150		620-L-018							58	121	88	66	32	8.8				3D
		15		7.3	right	PL 11 DX C15	191 176/050		620-R-018-15							47	142	102	80	39	4
		15		10.9	left	PL 11 GX C15	191 176/150		620-L-018-15							47	142	102	80	39	4
8	25	12	0.9	15	right	PL 21 DX	191 074/050	M16x1.5	620-R-025	M22x1.5	16	14	52	6	28	76	152	107	81	41	8.8	6.5	10.5	16	3D
		12		21	left	PL 21 GX	191 074/150		620-L-025							76	152	107	81	41	8.8				3D
		25		20.2	right	PL 21 DX C25	191 177/050		620-R-025-25							63	191	133	107	54	4
		25		32.5	left	PL 21 GX C25	191 177/150		620-L-025-25							63	191	133	107	54	4
16	36	12	2	41	right	PL 31 DX	191 076/050	M24x1.5	620-R-036	M30x1.5	18	20	72	10	38	110	195	142	114	43	11.1	10.5	17	11	3D
		12		53	left	PL 31 GX	191 076/150		620-L-036							110	195	142	114	43	11.1				3D
		25		52.3	right	PL 31 DX C25	192 060/050		620-R-036-25							90	234	168	140	56	5
		25		77.7	left	PL 31 GX C25	192 060/150		620-L-036-25							90	234	168	140	56	5
24	42	12	3	74	right	PL 41 DX	191 075/050	M30x1.5	620-R-042	M36x1.5	20	22	85	12	45	125	218	161	131	45	11.1	10.5	17	12	3D
		12		88	left	PL 41 GX	191 075/150		620-R-042							125	218	161	131	45	11.1				3D
		25		89	right	PL 41 DX C25	192 124/050		620-R-042-25							105	257	187	157	58	5
		25		123	left	PL 41 GX C25	192 124/150		620-R-042-25							105	257	187	157	58	5

Double-acting swing clamp – 250 bar – Supplied through counter-bores under the head PL

Characteristics

Options 1:10 taper

Options 15° taper

Nota

Product accessories

Fastening accessories: EMB

Short clamping arm – rod with 15° taper – For swing clamp size: 11 – 12 – 21 – 31 – 41 BC

Short clamping arm – rod with 1:10 taper – For swing clamp size: 11 – 12 – 21 – 31 – 41 BCK

Medium clamping arm – rod with 15° taper – For swing clamp size: 11 – 12 – 21 – 31 – 41 BM

Medium clamping arm – rod with 1:10 taper – For swing clamp size: 11 – 12 – 21 – 31 – 41 BMK

Long clamping arm – rod with 15° taper – For swing clamp size: 11 – 12 – 21 – 31 – 41 BL

Long clamping arm – rod with 1:10 taper – For swing clamp size: 11 – 12 – 21 – 31 – 41 BLK

Lock washer for clamp type P11, P21

Nut for clamp type P31 and P41 with 15° taper
