Long clamping arm – rod with 15° taper – For swing clamp size: 11 – 12 – 21 – 31 – 41 BL

For swing clamp size: 11 - 12 - 21 - 31 - 41
rod end with 15° taper

Definition

Available as standard in three versions:
• with bevels
• with bevels and indexing
• with no bevels, with indexing.

Characteristics

• turns over 360°
• treated for corrosion protection
• maximum service pressure: 125 bar

Option

Special arms made on request.

Nota

The clamping force and maximum flow rate reduce as the arm length increases (see tables on the guide and H clamp charts).

Make sure the rod is held while fastening the screw.
see figure 1 on the guide

Print this sheet

Long clamping arm – rod with 15° taper – For swing clamp size: 11 – 12 – 21 – 31 – 41 BL : Swing clamps with helical rotation - Quiri - 2

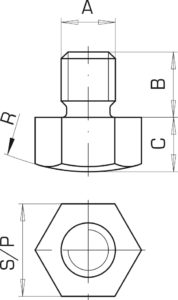

Type	Reference
