Clamping arm for swing clamp: P5 BP5

for swing clamp: H5

Print this sheet

Description

The arms for H5 swing clamps are available as standard in one length. These are short clamping arms. However, special arms can be made upon request.

The clamping force reduces as the arm length increases: in this regard, see the charts provided in the sheets of the different versions of H5 swing clamps (HL5, HT5, HFL5, HFT5, HCV5).

STANDARD SHORT ARM

Max. operating pressure with B5 arm: 250 bar

Name:

Standard short arm, 26 mm: B5 26
Part number: 811 268/000

Clamping arm for swing clamp: P5 BP5 : Swing clamps with helical rotation - Quiri

CUSTOM ARMS

Maximum service pressure of clamp according to charts

Name:

Long arms on request: B5 __
Part number: Specifically

Clamping arm for swing clamp: P5 BP5 : Swing clamps with helical rotation - Quiri - 2

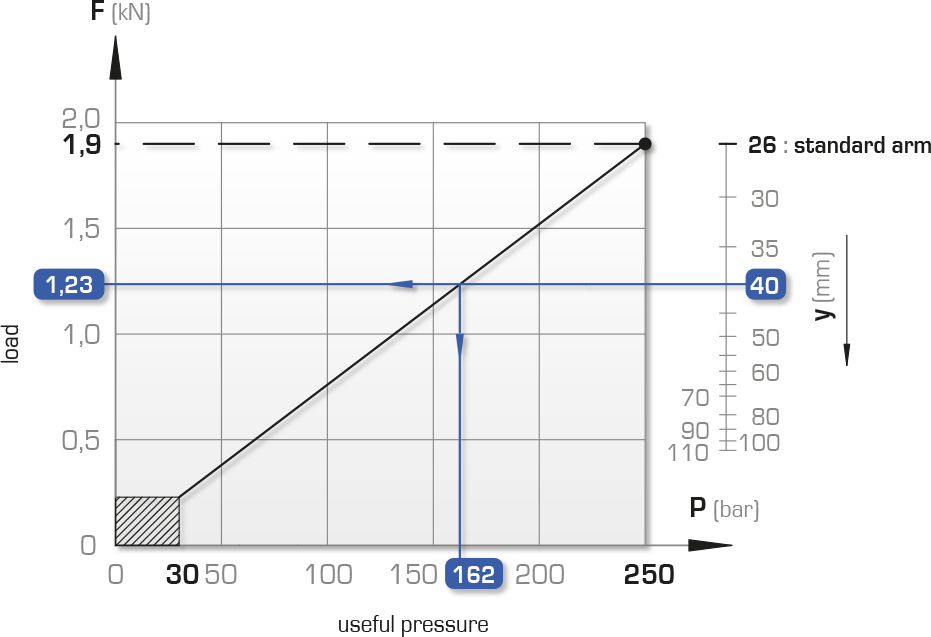

Chart

Actual force applied at the clamping point after taking account of efficiency.

Example: If y = 40 mm, F max. = 1.23 kN at 162 bar

Clamping arm for swing clamp: P5 BP5 : Swing clamps with helical rotation - Quiri - 3

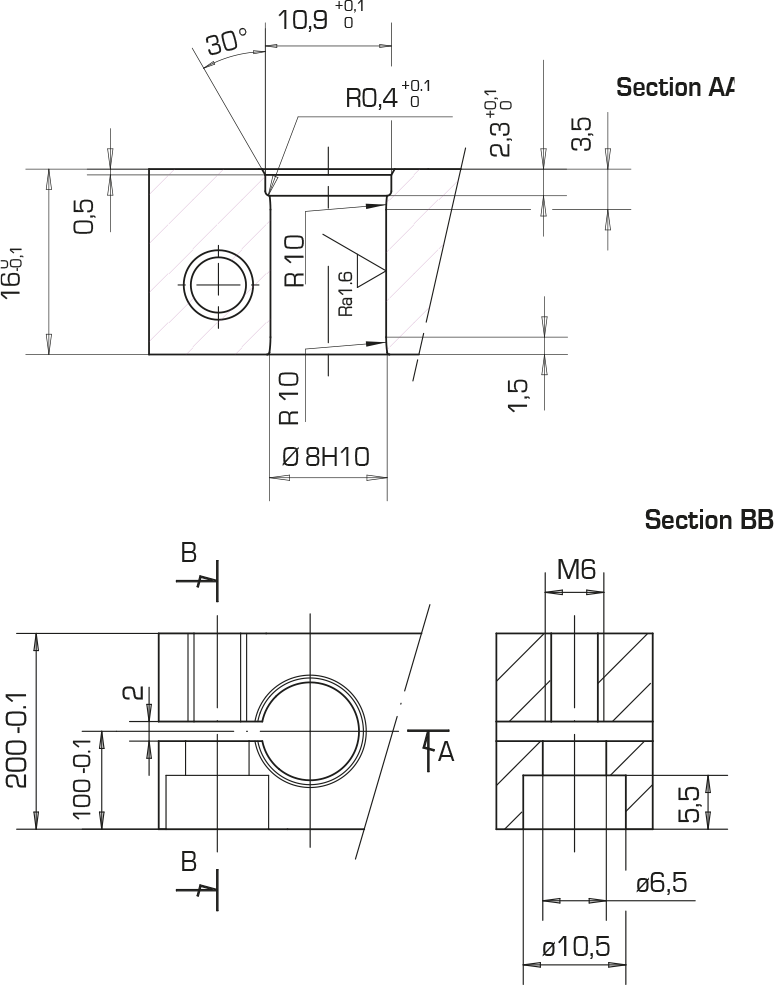

Machining details of special clamping arm

Clamping arm for swing clamp: P5 BP5 : Swing clamps with helical rotation - Quiri - 4

Compatible products

Double-acting swing clamp – 250 bar – Fastening with flange ring with counter-bores HL5

Double-acting - with rotation travel
Max force at 250 bar: 1.9 kN

Double-acting swing clamp – 250 bar – Fastening with flange ring with taps HT5

Double-acting - with rotation travel
Force at 250 bar: 1.9 kN

Double-acting swing clamp – 250 bar – Fastening with base with counter-bores HFL5

Double-acting - with rotation travel
Max force at 250 bar: 1.9 kN

Double-acting swing clamp – 250 bar – Fastening with base with taps HFT5

Double-acting - with rotation travel
Force at 250 bar: 1.9 kN

Double-acting swing clamp – 250 bar – Screw cartridge HCV5

Double-acting - with rotation travel
Max force at 250 bar: 1.9 kN
