Double-acting swing clamp – 250 bar – Fastening with flange ring with counter-bores HL5

Double-acting - with rotation travel
Max force at 250 bar: 1.9 kN

Supplied through counter-bores under the head or taps

• total travel 17 mm
• clamping travel 6 mm
• right or left helical rotation, 90°±2°

• clamping arm: see accessories
• 60°, 45° or 0° angle of rotation on request
• special models on request
• nozzle for supply through counter-bores

The clamps are supplied with seals, ring, and O-rings, 5.25 x 1.78 – 90 Shore.

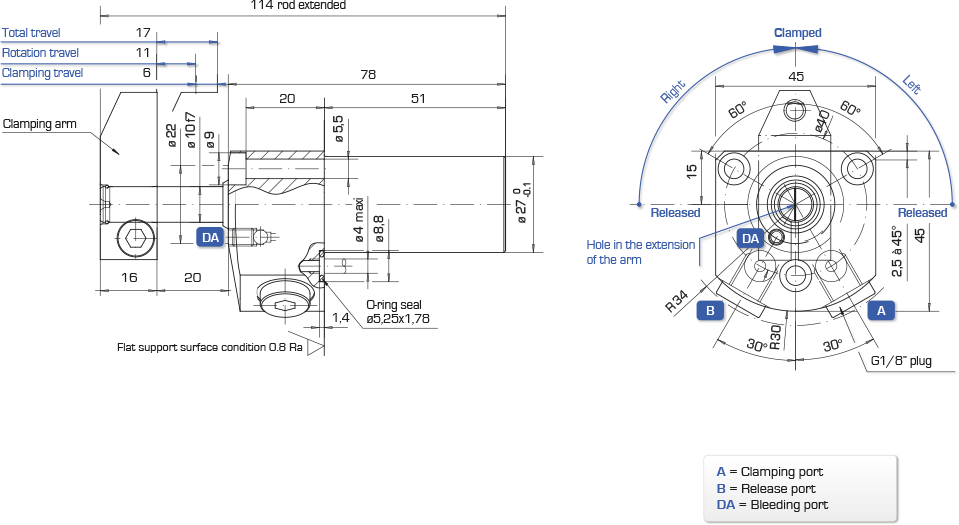

(Dimensions and tightening torque : see Clamping arm for swing clamp).

Print this sheet
Double-acting swing clamp – 250 bar – Fastening with flange ring with counter-bores HL5 : Swing clamps with helical rotation - Quiri - 2
F max

at

250

bar

Flow rate

max

A



Flow rate

max

B



Swept

volume

A

B

Section



A

B

Direction of rotation



Type Reference






kN l/min l/min cm3 cm2
1.9 0.2 0.36 1.67 0.98 right HL 5 D 191 169/050
3 1.77 left HL 5 G 191 169/150



Product accessories

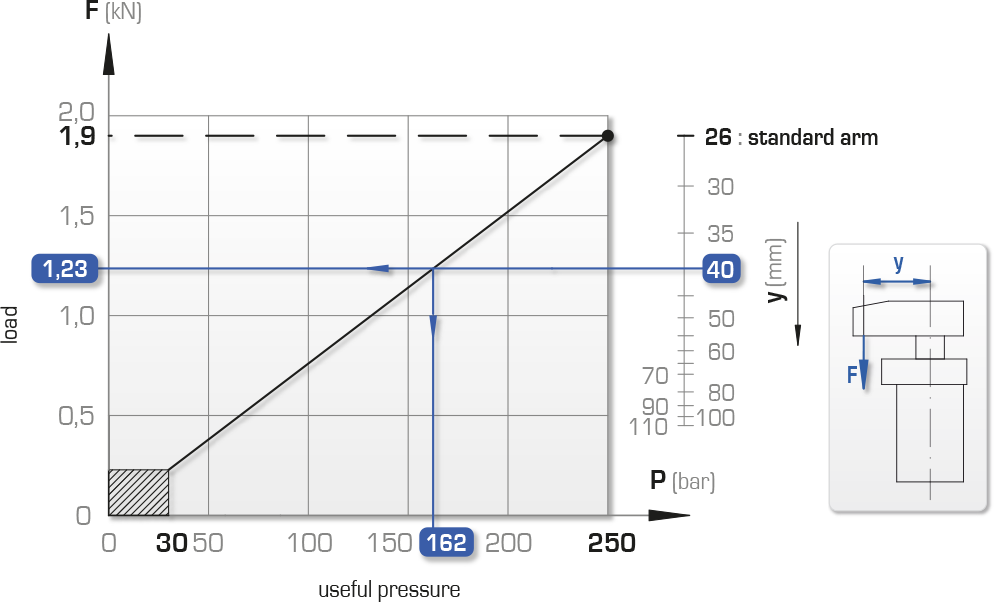

Product charts
