Universal double-acting swing clamp – 500 bar – Threaded body supplied through counter-bores in the base UFL

Double-acting - with rotation travel
Force at 500 bar: 6.5 to 42 kN

Threaded body supplied through counter-bores on the base

• treated burnished steel body
• right or left helical rotation, 90°±2°
• total travel = rotation travel + clamping travel
metal scraper as standard
• max. pressure : 500 bar
• clamping arm: see BCKBMKBLK

Supplied with O-rings.
(Dimensions and tightening torque on see EK).
O-rings: UFL 15, 25, 35 and 45 8 x 1.5 – 90 Shore

Print this sheet
Universal double-acting swing clamp – 500 bar – Threaded body supplied through counter-bores in the base UFL : Swing clamps with helical rotation - Quiri - 2

Definition of forces depending on clamping arm: see below
Important recommendations: consult the guide

Force with

500

bar

Force with

350

bar

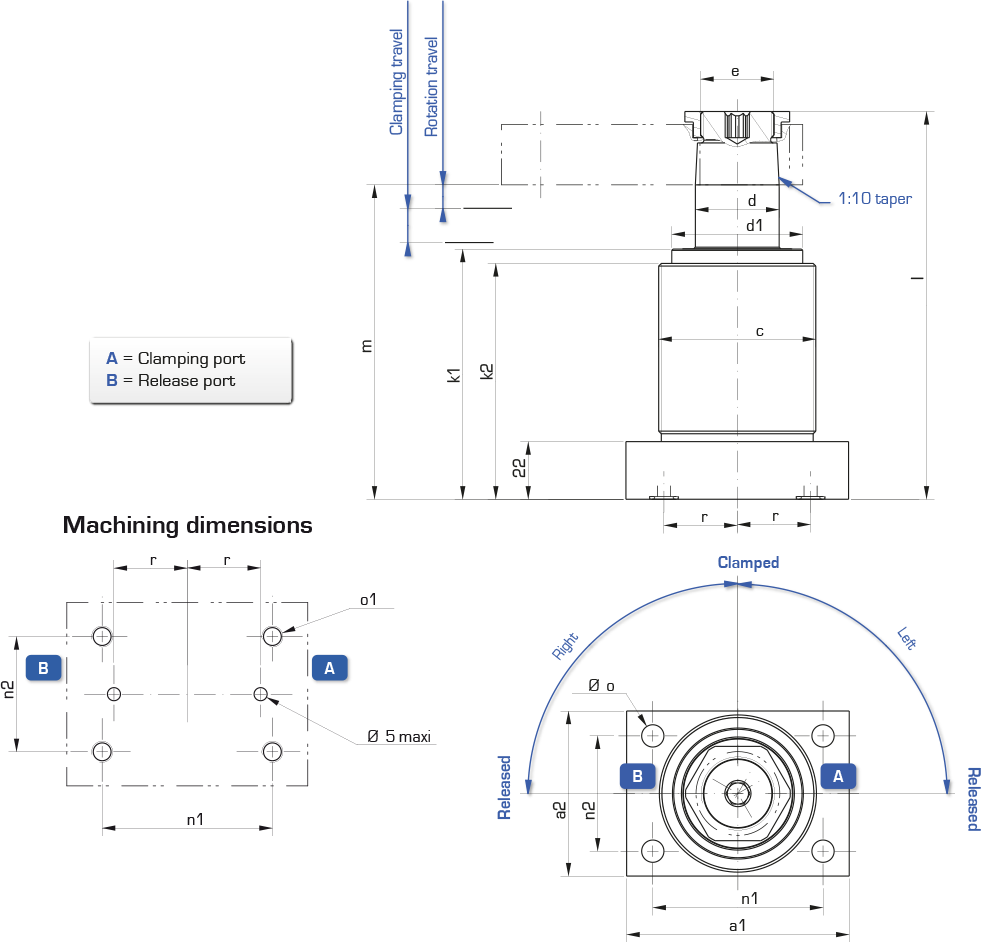

clamping travel rotation travel total travel Section

A

B

Swept volume

A

B

Direction of rotation Indexation Type Reference
a1





a2





c





ød





ød1





e





k1





k2





l





m





n1





n2





øo





øo1





r





kN kN mm mm mm cm2 cm3 mm mm mm mm mm mm mm mm mm mm mm mm
6.5 4.6 11 8 19 1.76

4.9

3.34

9.31

right WITHOUT UFL 15 191 232/000 65 45 M45x1.5 20 38 M18x1.5 84.5 79 127 106 50 30 6.5 M6 15
WITH 191 232/050
left WITHOUT 191 232/100
WITH 191 232/150
17 11.8 13 9 22 4.52

12.56

9.94

27.63

right WITHOUT UFL 25 191 233/000 85 63 M60x1.5 32 50 M28x1.5 95.5 90 148 120 65 44 8.5 M8 28
WITH 191 233/050
left WITHOUT 191 233/100
WITH 191 233/150
26 18 15 11 26 7.06

19.63

18.35

51.03

right WITHOUT UFL 35 192 206/000 100 80 M80x2 40 55 M35x1.5 108 102 172 138 80 60 13.5 M12 31
WITH 192 206/050
left WITHOUT 192 206/100
WITH 192 206/150
42 30 15 11 26 11.53

31.17

31.13

84.16

right WITHOUT UFL 45 192 207/000 115 90 M90x2 50 66 M45x1.5 114 108.5 184 144 90 68 16 M14 37.5
WITH 192 207/050
left WITHOUT 192 207/100
WITH 192 207/150
