Double-acting swing clamp – 250 bar – Fastening with base with taps HFT5

Double-acting - with rotation travel
Force at 250 bar: 1.9 kN

Smooth body, fastened with 4 screws on base
Supply through G 1/8’’ tap

Double-acting swing clamp – 250 bar – Fastening with base with taps HFT5 : Swing clamps with helical rotation - Quiri

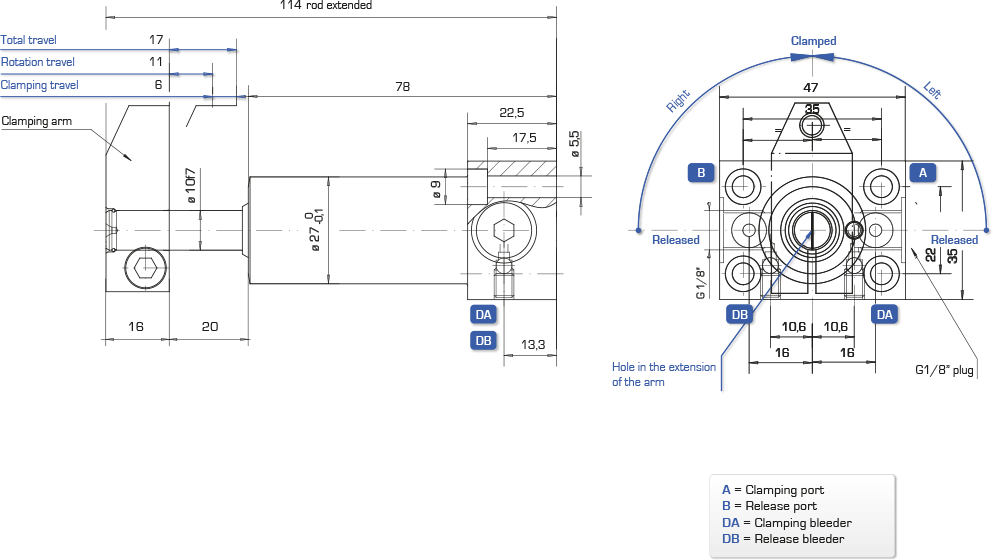

Characteristics

• clamp body in burnished treated steel
• total travel 17 mm
• clamping travel 6 mm
• right or left helical rotation, 90° ± 2°

Options

• custom clamping arm
• 60°, 45° or 0° rotation
• position check
• special dimension
• nozzle on counter-bore ports

Nota

The clamps are supplied with seals, plugs (depending on version) and ring.

Print this sheet

Double-acting swing clamp – 250 bar – Fastening with base with taps HFT5 : Swing clamps with helical rotation - Quiri - 2

F max at 250 bar	Flow rate max A	Flow rate max B	Swept volume A B	Section A B	Direction of rotation	Type	Reference
F max at 250 bar	Flow rate max A	Flow rate max B	Swept volume A B	Section A B	Direction of rotation	Type	Reference
kN	l/min	l/min	cm³	cm²
1.9	0.2	0.36	1.67	0.98	right	HS 5 D	191 174/050
1.9	0.2	0.36	3	1.77	left	HS 5 G	191 174/150

Product accessories

Clamping arm for swing clamp: P5 BP5

for swing clamp: H5

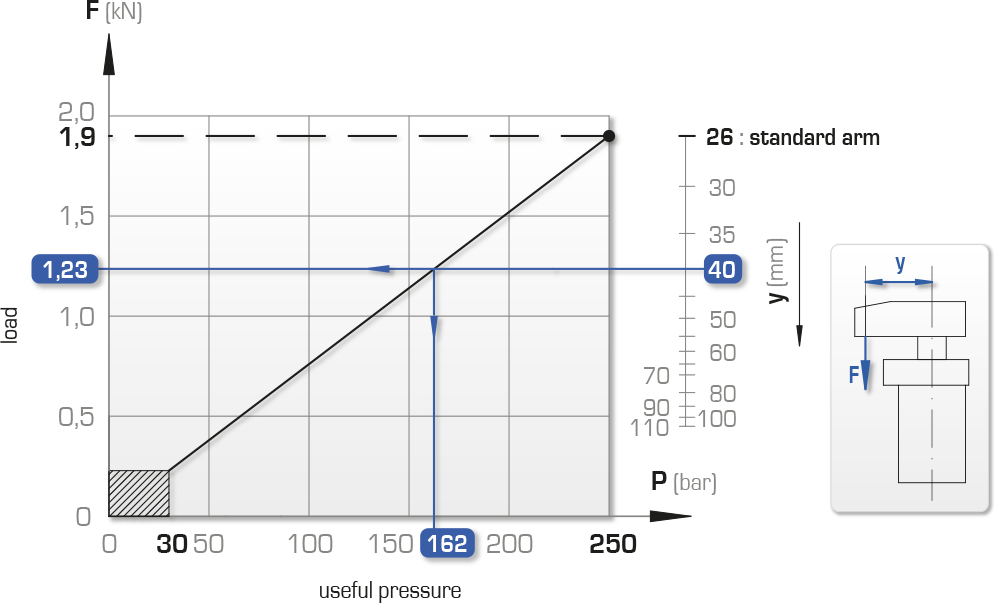

Product charts
