Fastening accessories: EMB
Nut for fastening threaded swing clamps
P11 - P21 - P31 - P41

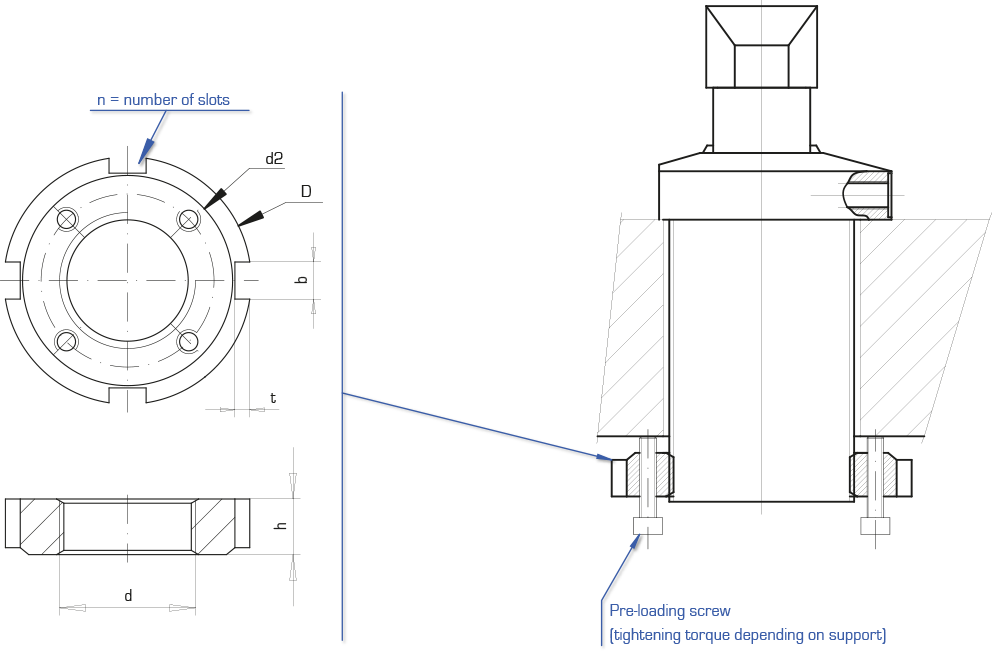

Special nut for threaded swing clamps P11, P21, P31, P41
| Type | Reference | Type of clamp | |||||||||
| Tap d
|
øD
|
d2
|
h
|
b
|
t
|
n
|
Screws
|
Tightening
torque of the screw
|
|||
| mm | mm | mm | mm | mm | mm | Nm | |||||
| EMB 3615 | 811 269/000 | P11 | M36 x 1.5 | 68 | 60 | 11 | 8 | 3.5 | 4 | M6 | 5 |
| EMB 5215 | 811 270/000 | P21 | M52 x 1.5 | 92 | 82 | 13 | 10 | 4 | 4 | M8 | 13 |
| EMB 7220 | 811 271/000 | P31 | M72 x 2 | 122 | 112 | 14 | 10 | 4 | 4 | M12 | 34 |
| EMB 8520 | 811 272/000 | P41 | M85 x 2 | 142 | 132 | 16 | 10 | 4 | 4 | M14 | 62 |

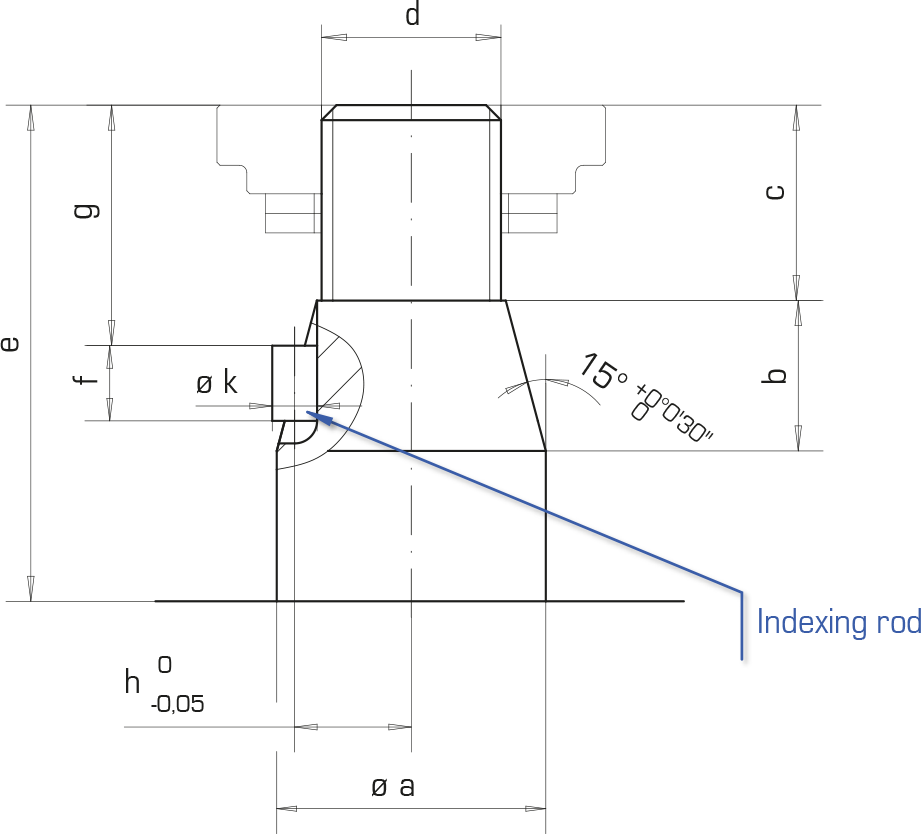

Details of rod ends with indexing
| Type | Reference
indexing pin |
|||||||||
| øa
|
b
|
c
|
d
|
e
|
f
|
g
|
h
|
k
|
||
| mm | mm | mm | mm | mm | mm | mm | mm | mm | ||
| P11 | A 94 028 | 18 | 10 | 13 | M12 x 1.5 | 33 | 5 | 16 | 7.8 | 3 |
| P21 | A 94 028 | 25 | 14 | 16 | M16 x 1.5 | 45 | 5 | 19 | 10.25 | 3 |
| P31 | A 94 026 | 36 | 20 | 18 | M24 x 1.5 | 53 | 8 | 21 | 14.5 | 4 |
| P41 | A 94 026 | 42 | 22 | 20 | M30 x 1.5 | 57 | 8 | 23 | 17.5 | 4 |
