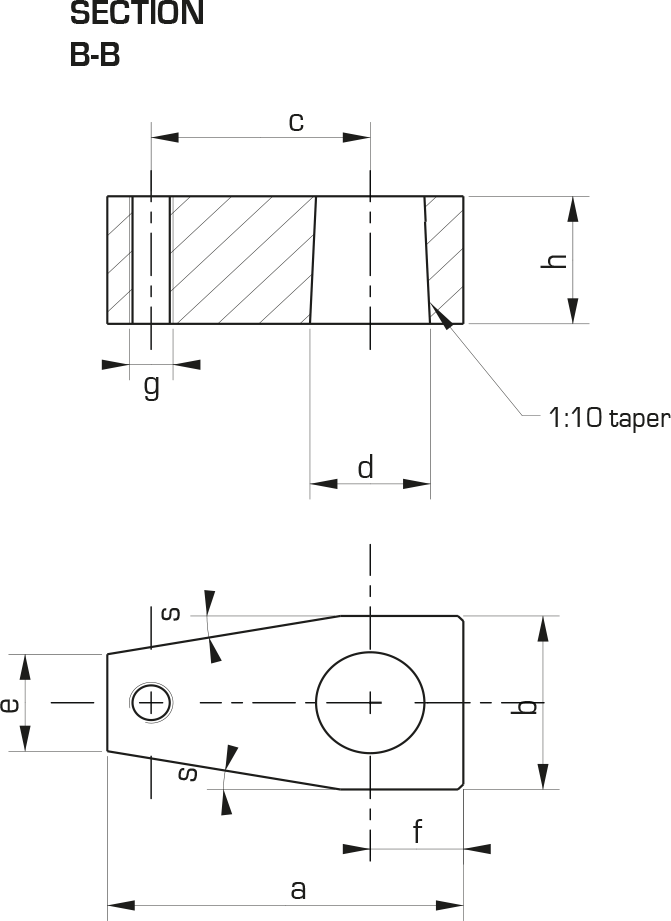

Long clamping arm B7
For swing clamp type: HL7
Rod end with 1:10 taper
• with tap and bevel dimension e
• adjustable over 360°
• burnished surface
• max. pressure 125 bar
Special arms on request.
Maximum force (and thus maximum pressure) decreases proportionally with clamping arm extension. Maximum flow rate also decreases with the inertia of the clamping arm. For standard arms, please note the values stated in the table. (see HL7).
The rod must absolutely be held while clamping;
see figure 1 on the guide
| Tap | Bevel | Type | Reference | ||||||||||||
| a
|
b
|
c
|
ød
0/- 0.05
|
e
|
f
|
g
|
h
|
s
|
v
0/- 0.05
|
w
0/- 0.02
|
u
|
||||
| mm | mm | mm | mm | mm | mm | mm | mm | ° | mm | mm | mm | ||||
| WITH | WITH | B7 02 | 811 326/000 | 48 | 22 | 30 | 14 | 12 | 11 | M6 | 16 | 10 | 6.6 | 1.5 | 11.5 |
| WITH | WITH | B7 04 | 811 327/000 | 65 | 34 | 40 | 22 | 19 | 17 | M8 | 25 | 10 | 10.3 | 1.5 | 20 |
| WITH | WITH | B7 06 | 811 339/000 | 80 | 38 | 50 | 25 | 19 | 20 | M8 | 25 | 10 | 11.8 | 1.5 | 20 |
| WITH | WITH | B7 10 | 811 328/000 | 96 | 52 | 60 | 30 | 31 | 25 | M12 | 27 | 10 | 15 | 3 | 18 |
| WITH | WITH | B7 16 | 811 329/000 | 114 | 60 | 70 | 36 | 36 | 30 | M16 | 35 | 10 | 18.1 | 3 | 28 |
