Nut for clamp with 1:10 taper

Print this sheet

The arm lock nut and lock washer are supplied with the clamps.

Nut for clamp with 1:10 taper : Swing clamps with helical rotation - Quiri

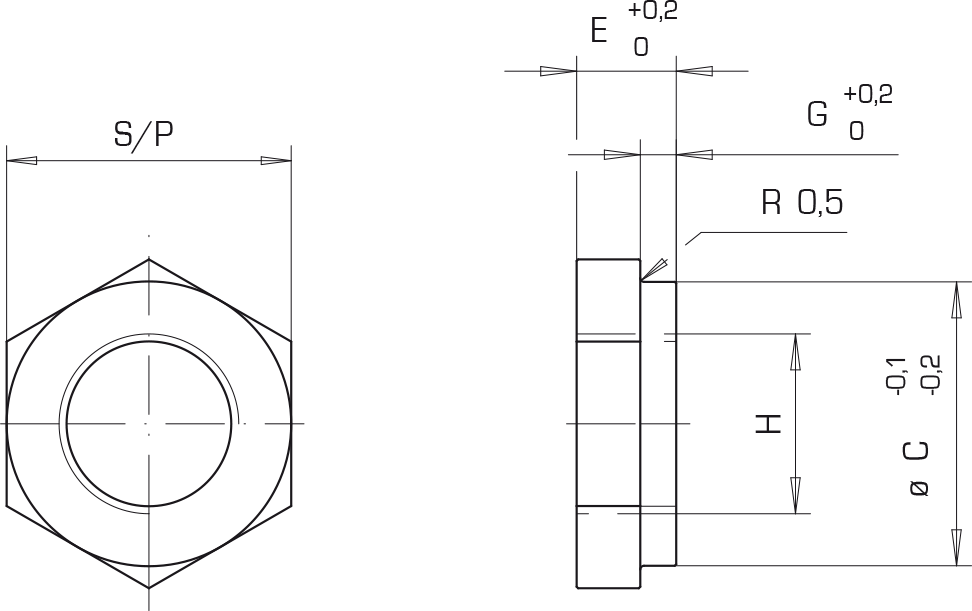

Type Reference
S/P





 øC





 E





 G





 H





 N

Tightening

torque


mm mm mm mm mm Nm
EK 12 191 229/005 27 23.5 9 4.5 M18 x 1.5 30
EK 21 610-07-025-001 32 32 10.7 5 M22 x 1.5 50
EK 31 610-07-036-001 50 46 13 5.5 M30 x 1.5 140
EK 41 610-07-042-001 60 60 15 6.5 M36 x 1.5 270



IMPORTANT REMARK
Make sure the rod is held while fastening the screw.
See figure 1 on the guide

See similar accessories

Clamping arm for swing clamp: P5 BP5

for swing clamp: H5

Short clamping arm – rod with 15° taper – For swing clamp size: 11 – 12 – 21 – 31 – 41 BC

for swing clamp size: 11 - 12 - 21 - 31 - 41
rod end with 15° taper

Short clamping arm – rod with 1:10 taper – For swing clamp size: 11 – 12 – 21 – 31 – 41 BCK

For swing clamp size: 11 - 12 - 21 - 31 - 41
rod end with 1:10 taper

Medium clamping arm – rod with 15° taper – For swing clamp size: 11 – 12 – 21 – 31 – 41 BM

For swing clamp size: 11 - 12 - 21 - 31 - 41
rod end with 15° taper
