Universal double-acting swing clamp – 500 bar – Threaded body supplied through taps in the base UCT

Double-acting - with rotation travel
Force at 500 bar: 6.5 to 42 kN

Threaded body supplied through taps on the base

• treated burnished steel body
• right or left helical rotation, 90°±2°
• total travel = rotation travel + clamping travel
metal scraper as standard
• max. pressure : 500 bar
• clamping arm: see BCKBMKBLK

Clamps are supplied with plugs, lock nut and lock washer.
(dimensions and tightening torque : EK).

Print this sheet
Universal double-acting swing clamp – 500 bar – Threaded body supplied through taps in the base UCT : Swing clamps with helical rotation - Quiri - 2

Definition of forces depending on clamping arm: see below
Important recommendations: consult the guide

Force with

500

bar

Force with

350

bar

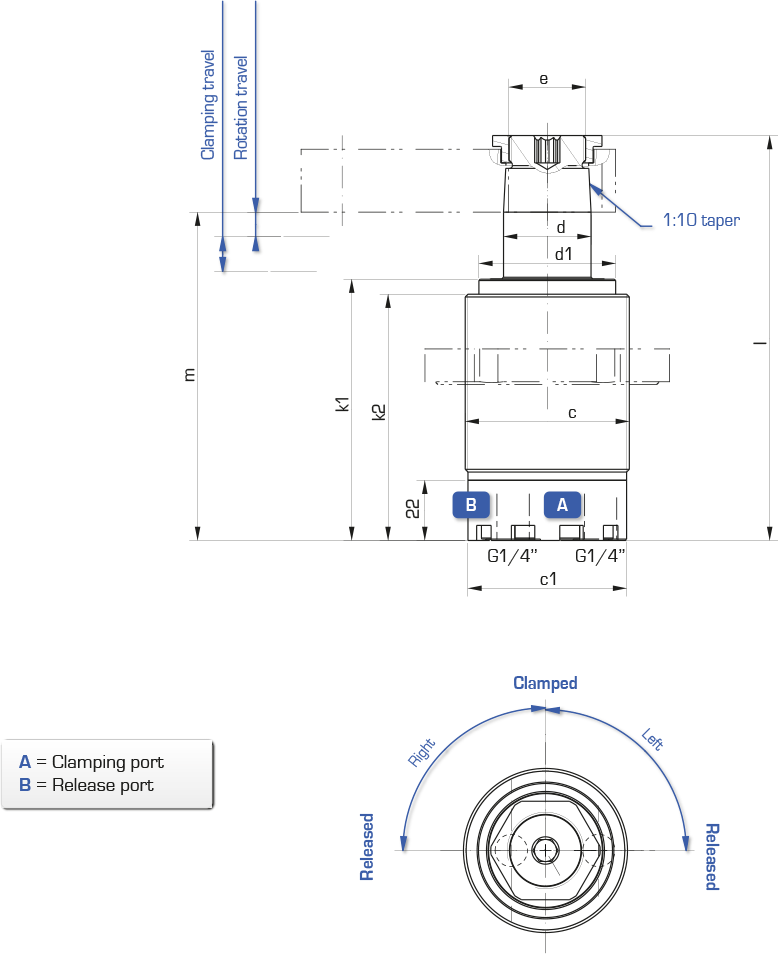

clamping travel rotation travel total travel Section

A

B

Swept volume

A

B

Direction of rotation Indexation Type Reference
øc





øc1





ød





ød1





e





k1





k2





l





m





r1





r2





kN kN mm mm mm cm2 cm3 mm mm mm mm mm mm mm mm mm
6.5 4.6 11 8 19 1.76

4.9

3.34
9.31
right WITHOUT UCT 15 191 234/000 M45x1.5 43 20 38 M18x1.5 84.5 79 127 106 12 12
WITH 191 234/050
left WITHOUT 191 234/100
WITH 191 234/150
17 11.8 13 9 22 4.52

12.56

9.94

27.63

right WITHOUT UCT 25 191 235/000 M60x1.5 58 32 50 M28x1.5 95.5 90 148 120 12.5 19.5
WITH 191 235/050
left WITHOUT 191 235/100
WITH 191 235/150
26 18 15 11 26 7.06

19.63

18.35

51.03

right WITHOUT UCT 35 192 208/000 M80x2 77 40 55 M35x1.5 108 102 172 138 19 26.5
WITH 192 208/050
left WITHOUT 192 208/100
WITH 192 208/150
42 30 15 12 27 11.53

31.17

31.13

84.16

right WITHOUT UCT 45 192 209/000 M90x2 87 50 66 M45x1.5 114 108.5 184.5 144.5 25.5 34
WITH 192 209/050
left WITHOUT 192 209/100
WITH 192 209/150
