• Conform to standard dimensions ISO11901-1, CNOMO E.24.54.815.N
• Comply with European directive PED 97/23EC
• Force : from 250 to 10 000 daN (10t)
• Stroke : up to 300mm
• Designed for heavy duty
• Double sealing
• Oil lubricated guide ring
• Solid structure (no welding)
• Can be used in piping system

• Gas : Nitrogen
• Maximum inflating pressure : 150 bar
• Minimum inflating pressure : 25 bar
• Temperature limit : 0/+70°C
• Maximum piston rod speed : 1.6 m/s

Print this sheet
RG 1500 : ISO GAS SPRINGS - Quiri - 2
RG 1500 : ISO GAS SPRINGS - Quiri - 3
RG 1500 : ISO GAS SPRINGS - Quiri - 4

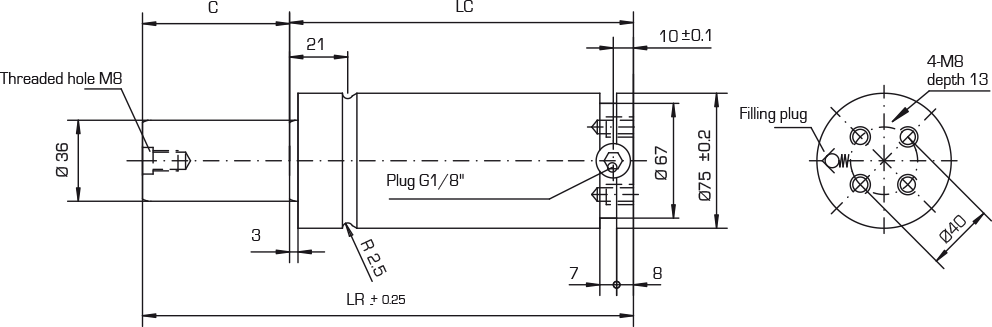

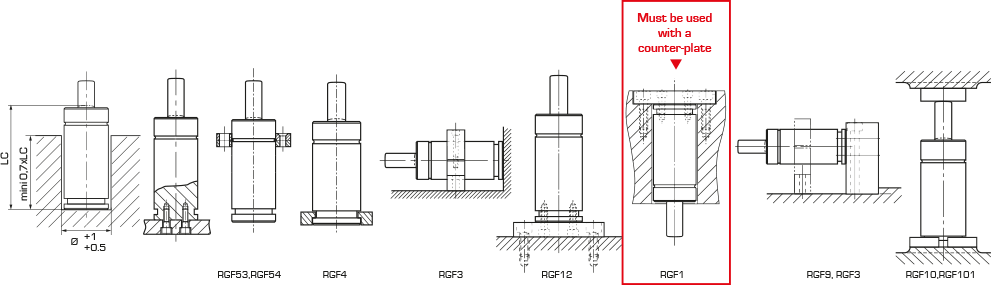

For connection details of ISO standard gas springs, please see CONNECTIONS FOR ISO GAS SPRINGS

Type Force

daN

Stroke C

mm

Order code ISO Pressure

MPa (bar)

Force F1

N*

Force F2

N*

LR

mm

LC

mm

Weight

Kg

RG 1500 10 442537/000 15

(150)

(!)

15 270 18 530 130 120 3.30
25 442531/000 X 20 490 160 135 3.50
38 442538/000 21 340 186 148 3.70
50 442532/000 X 21 800 210 160 4.00
63 442539/000 22 130 236 173 4.20
80 442533/000 X 22 440 270 190 4.50
100 442534/000 X 22 670 310 210 4.90
125 442535/000 X 22 900 360 235 5.40
160 442536/000 X 23 090 430 270 5.80
200 442540/000 23 240 510 310 6.50
250 442541/000 23 340 610 360 7.50
300 442542/000 23 430 710 410 8.50

* (N) = Kgf x 9.80665 | (Kgf)=N x 0.101972 | 1daN=1 x 101N | 1bar=1 x 10-1MPa

Example of order : RG 1500 C50
Spare kits – Composition : Guide ring; seals, valve and lubricant.
– V1 (bronze ring and chrome piston rod) : 896490/000
– V2 (Black steel ring and piston rod) : 896599/000

(!) There is a blue sticker on the gas spring body when it is inflated with a special pressure (<15 MPa)
