RGP 2400 gas spring

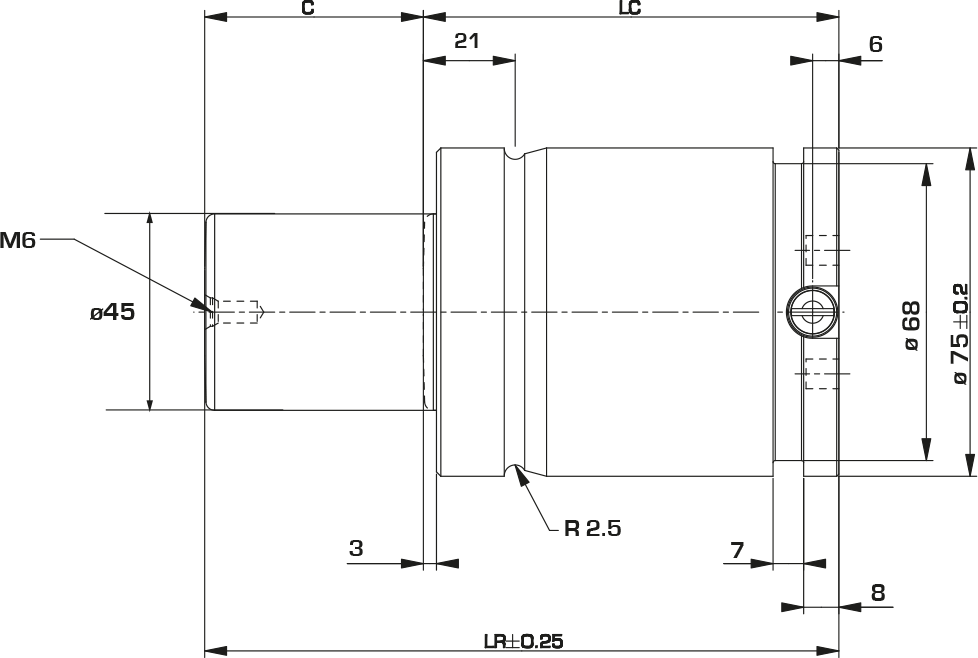

| Type | Force | Stroke C | Reference | ISO | Pressure | Force F1 | Force F2 | LR | LC | Mass | 3D Model |
| daN | mm | MPa (bar) | N* | N* | mm | mm | Kg | ||||
| RGP | 2400 | 16 | 443344/000-S | 15
(150) (!) |
23 860 | 36 120 | 77 | 61 | 1.50 | 3D | |
| 19 | 443345/000-S | 36 560 | 83 | 64 | 1.54 | 3D | |||||
| 25 | 443346/000-S | X | 37 370 | 95 | 70 | 1.66 | 3D | ||||
| 32 | 443347/000-S | 37 810 | 109 | 77 | 1.78 | 3D | |||||
| 38 | 443348/000-S | X | 38 200 | 121 | 83 | 1.88 | 3D | ||||
| 50 | 443349/000-S | X | 38 630 | 145 | 95 | 2.10 | 3D | ||||
| 63 | 443350/000-S | X | 38 920 | 171 | 108 | 2.30 | 3D | ||||
| 75 | 443351/000-S | 39 110 | 195 | 120 | 2.50 | 3D | |||||
| 80 | 443352/000-S | X | 39 140 | 205 | 125 | 2.60 | 3D | ||||
| 100 | 443353/000-S | X | 39 360 | 245 | 145 | 2.90 | 3D | ||||
| 125 | 443354/000-S | X | 39 460 | 295 | 170 | 3.30 | 3D |
* (N) = Kgf x 9.80665 | (Kgf)=N x 0.101972 | 1daN=1 x 101N | 1bar=1 x 10-1MPa
Example of order : RGP 2400 C50
Spare kit : 896533/000
Composition : Guide ring, seals, valve and lubricant.
(!) There is a blue sticker on the gas spring body when it is inflated with a special pressure (<15 MPa)
