RGT 9500 gas spring
• Diameter from 32 to 150 mm
• Stroke from 10 to 125 mm
• Force : from 350 to 9500 daN (9.5t)
• Designed especially for car makers
• Solid design (no welding)

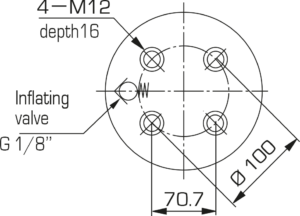

• Design and features similar to RGP but can be used with standard G 1/8’’ piping system (except RGT 350)
• Long bottom threads recommended for fixtures with screws in the upper die
• Conforms to Toyota standard : SMS DNH 3203 N
| Type | Force | Stroke C | Reference | Pressure | Force F1 | Force F2 | LR | LC | Mass | 3D Model |
| daN | mm | MPa (bar) | N* | N* | mm | mm | Kg | |||
| RGT | 9500 | 19 | 443705/000-S | 15
(150) (!) |
95 430 | 139 110 | 116 | 97 | 11,00 | 3D |
| 25 | 443706/000-S | 143 320 | 128 | 103 | 11,40 | 3D | ||||
| 32 | 443707/000-S | 147 040 | 142 | 110 | 11,90 | 3D | ||||
| 38 | 443708/000-S | 149 300 | 154 | 116 | 12,30 | 3D | ||||
| 50 | 443709/000-S | 152 720 | 178 | 128 | 13,20 | 3D | ||||
| 63 | 443710/000-S | 155 080 | 204 | 141 | 14,20 | 3D | ||||
| 75 | 443711/000-S | 156 650 | 228 | 153 | 15,00 | 3D | ||||
| 80 | 443712/000-S | 157 140 | 238 | 158 | 15,50 | 3D | ||||
| 100 | 443713/000-S | 158 690 | 278 | 178 | 16,80 | 3D | ||||
| 125 | 443714/000-S | 160 980 | 328 | 203 | 18,60 | 3D |
* (N) = Kgf x 9.80665 | (Kgf)=N x 0.101972 | 1daN=1 x 101N | 1bar=1 x 10-1MPa
** DESP 97/23/EC Category II : these gas springs must be returned to the manufacturer for repairing.
Example of order: RGT 9500 C50
Spare Kit : 896563/000.
Composition : Guide ring, seals, valve and lubricant.
(!) There is a blue sticker on the gas spring body when it is inflated with a special pressure (<15 MPa)
