RGT 750 gas spring

• Diameter from 32 to 150 mm
• Stroke from 10 to 125 mm
• Force : from 350 to 9500 daN (9.5t)
• Designed especially for car makers
• Solid design (no welding)

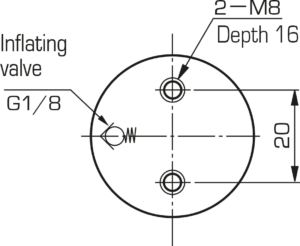

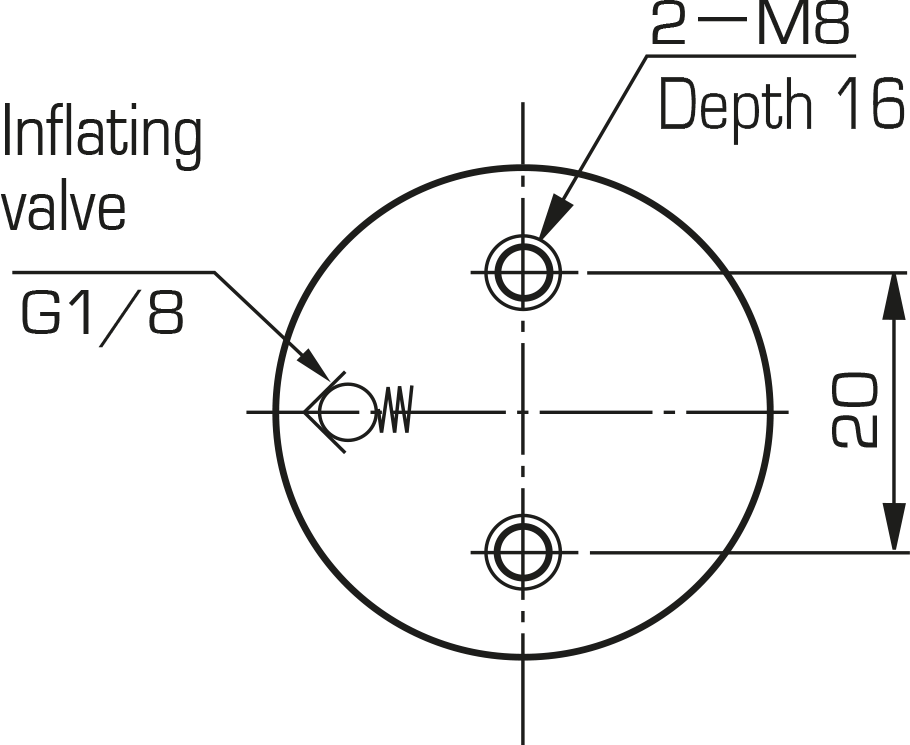

• Design and features similar to RGP but can be used with standard G 1/8’’ piping system (except RGT 350)
• Long bottom threads recommended for fixtures with screws in the upper die
• Conforms to Toyota standard : SMS DNH 3203 N

Print this sheet
RGT 750 gas spring : HIGH POWER RGT GAS SPRINGS - Quiri - 2
RGT 750 gas spring : HIGH POWER RGT GAS SPRINGS - Quiri - 3
RGT 750 gas spring : HIGH POWER RGT GAS SPRINGS - Quiri - 4
RGT 750 gas spring : HIGH POWER RGT GAS SPRINGS - Quiri - 5
Type Force Stroke C Reference Pressure Force F1 Force F2 LR LC Mass 3D Model
daN mm MPa (bar) N* N* mm mm Kg
RGT 750 10 443581/000-S 15

(150)

(!)



7 370 10 960 67 57 0,572 3D
13 443582/000-S 11 100 73 60 0,592 3D
16 443584/000-S 11 200 79 63 0,612 3D
19 443585/000-S 11 260 85 66 0,632 3D
25 443586/000-S 11 350 97 72 0,682 3D
32 443587/000-S 11 470 111 79 0,722 3D
38 443588/000-S 11 500 123 85 0,762 3D
50 443589/000-S 11 540 147 97 0,842 3D
63 443590/000-S 11 590 173 110 0,922 3D
75 443591/000-S 11 600 197 122 1,002 3D
80 443592/000-S 11 590 207 127 1,072 3D
100 443593/000-S 11 590 247 147 1,162 3D
125 443594/000-S 11 620 297 172 1,322 3D

* (N) = Kgf x 9.80665 | (Kgf)=N x 0.101972 | 1daN=1 x 101N | 1bar=1 x 10-1MPa

Example of order : RGT 750 C50
Spare Kit : 896530/000
Composition : Guide ring, seals, valve and lubricant.

RGT 750 gas spring : HIGH POWER RGT GAS SPRINGS - Quiri - 6

(!) There is a blue sticker on the gas spring body when it is inflated with a special pressure (<15 MPa)

RGT 750 gas spring : HIGH POWER RGT GAS SPRINGS - Quiri - 7
