RGT 1000 gas spring
• Diameter from 32 to 150 mm
• Stroke from 10 to 125 mm
• Force : from 350 to 9500 daN (9.5t)
• Designed especially for car makers
• Solid design (no welding)

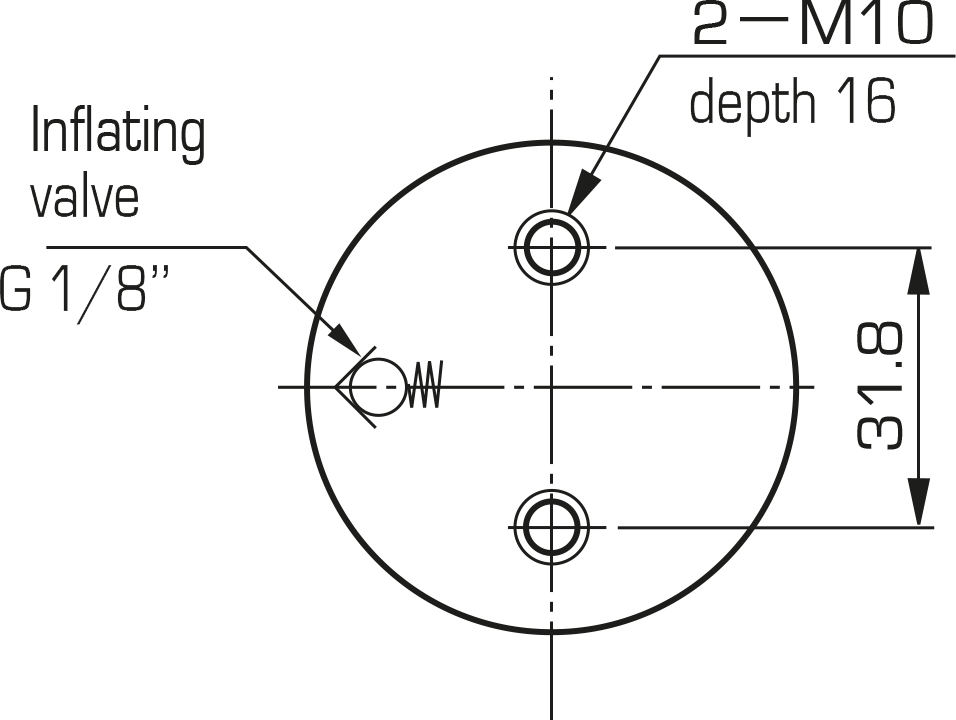

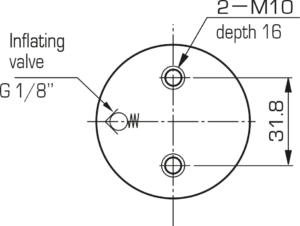

• Design and features similar to RGP but can be used with standard G 1/8’’ piping system (except RGT 350)
• Long bottom threads recommended for fixtures with screws in the upper die
• Conforms to Toyota standard : SMS DNH 3203 N
| Type | Force | Stroke C | Reference | Pressure | Force F1 | Force F2 | LR | LC | Mass | 3D Model |
| daN | mm | MPa (bar) | N* | N* | mm | mm | Kg | |||
| RGT | 1000 | 10 | 443601/000-S | 15
(150) (!) |
9 240 | 13 080 | 72 | 62 | 0,77 | 3D |
| 13 | 443602/000-S | 13 360 | 78 | 65 | 0,79 | 3D | ||||
| 16 | 443604/000-S | 13 550 | 84 | 68 | 0,81 | 3D | ||||
| 19 | 443605/000-S | 13 690 | 90 | 71 | 0,84 | 3D | ||||
| 25 | 443606/000-S | 14 050 | 102 | 77 | 0,90 | 3D | ||||
| 32 | 443607/000-S | 14 260 | 116 | 84 | 0,95 | 3D | ||||
| 38 | 443608/000-S | 14 320 | 128 | 90 | 1,01 | 3D | ||||
| 50 | 443609/000-S | 14 590 | 152 | 102 | 1,13 | 3D | ||||
| 63 | 443610/000-S | 14 660 | 178 | 115 | 1,23 | 3D | ||||
| 75 | 443611/000-S | 14 730 | 202 | 127 | 1,34 | 3D | ||||
| 80 | 443612/000-S | 14 750 | 212 | 132 | 1,37 | 3D | ||||
| 100 | 443613/000-S | 14 850 | 252 | 152 | 1,56 | 3D | ||||
| 125 | 443614/000-S | 14 890 | 302 | 177 | 1,77 | 3D |
* (N) = Kgf x 9.80665 | (Kgf)=N x 0.101972 | 1daN=1 x 101N | 1bar=1 x 10-1MPa
Example of order : RGT 1000 C50
Spare Kit : 896531/000
Composition : Guide ring, seals, valve and lubricant.
(!) There is a blue sticker on the gas spring body when it is inflated with a special pressure (<15 MPa)
