RGT 1500 gas spring
• Diameter from 32 to 150 mm
• Stroke from 10 to 125 mm
• Force : from 350 to 9500 daN (9.5t)
• Designed especially for car makers
• Solid design (no welding)
• Design and features similar to RGP but can be used with standard G 1/8’’ piping system (except RGT 350)
• Long bottom threads recommended for fixtures with screws in the upper die
• Conforms to Toyota standard : SMS DNH 3203 N

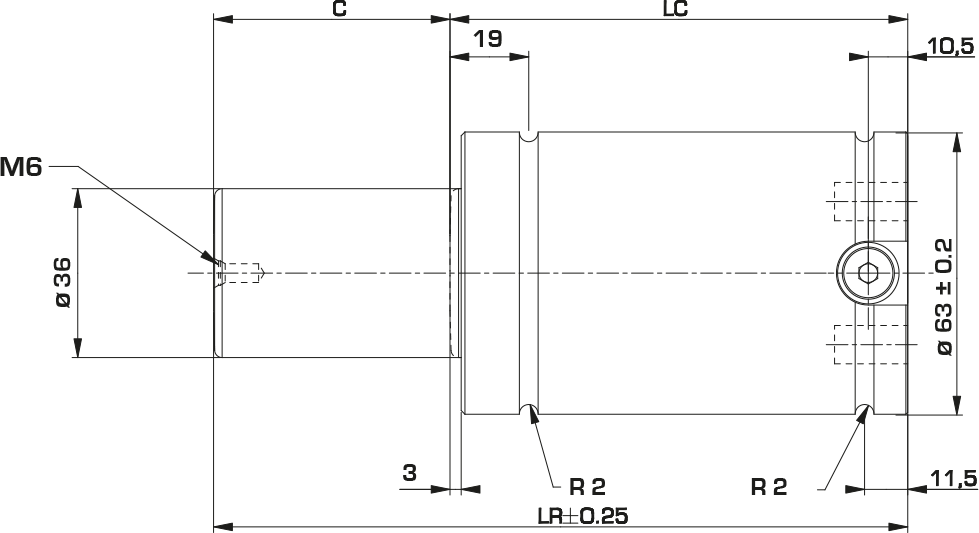

| Type | Force | Stroke C | Reference | Pressure | Force F1 | Force F2 | LR | LC | Mass | 3D Model |
| daN | mm | MPa (bar) | N* | N* | mm | mm | Kg | |||
| RGT | 1500 | 13 | 443622/000-S | 15
(150) (!) |
15 270 | 21 440 | 78 | 65 | 1,17 | 3D |
| 16 | 443624/000-S | 21 870 | 84 | 68 | 1,21 | 3D | ||||
| 19 | 443625/000-S | 22 360 | 90 | 71 | 1,27 | 3D | ||||
| 25 | 443626/000-S | 22 810 | 102 | 77 | 1,37 | 3D | ||||
| 32 | 443627/000-S | 23 240 | 116 | 84 | 1,42 | 3D | ||||
| 38 | 443628/000-S | 23 440 | 128 | 90 | 1,49 | 3D | ||||
| 50 | 443629/000-S | 23 710 | 152 | 102 | 1,64 | 3D | ||||
| 63 | 443630/000-S | 24 030 | 178 | 115 | 1,80 | 3D | ||||
| 75 | 443631/000-S | 24 130 | 202 | 127 | 1,94 | 3D | ||||
| 80 | 443632/000-S | 24 180 | 212 | 132 | 2,00 | 3D | ||||
| 100 | 443633/000-S | 24 350 | 252 | 152 | 2,27 | 3D | ||||
| 125 | 443634/000-S | 24 450 | 302 | 177 | 2,57 | 3D |
* (N) = Kgf x 9.80665 | (Kgf)=N x 0.101972 | 1daN=1 x 101N | 1bar=1 x 10-1MPa
Example of order: RGT 1500 C50
Spare Kit : 896532/000.
Composition : Guide ring, seals, valve and lubricant.
(!) There is a blue sticker on the gas spring body when it is inflated with a special pressure (<15 MPa)
