RGC 420 gas spring
| Type | Force | Stroke C | Reference | Pressure | Force F1 | Force F2 | LR | LC | Mass | 3D Model |
| daN | mm | MPa (bar) | N* | N* | mm | mm | Kg | |||
| RGC | 420 | 6 | 443111/000 | 13.5
(135) (!)
|
4 250 | 7 000 | 56 | 50 | 0.150 | 3D |
| 10 | 443112/000 | 7 000 | 70 | 60 | 0.160 | 3D | ||||
| 16 | 443113/000 | 6 930 | 91 | 75 | 0.175 | 3D | ||||
| 25 | 443114/000 | 7 000 | 120 | 95 | 0.210 | 3D | ||||
| 32 | 443115/000 | 7 320 | 140 | 108 | 0.246 | 3D | ||||
| 40 | 443116/000 | 7 320 | 165 | 125 | 0.275 | 3D | ||||
| 50 | 443117/000 | 7 390 | 195 | 145 | 0.300 | 3D |
* (N) = Kgf x 9.80665 | (Kgf)=N x 0.101972 | 1daN=1 x 101N | 1bar=1 x 10-1MPa
Example of order: RGT 420 C50
Spare Kit : 896524/000.
Composition : Seals, valve and lubricant.
(!) There is a blue sticker on the gas spring body when it is inflated with a special pressure (<15 MPa)

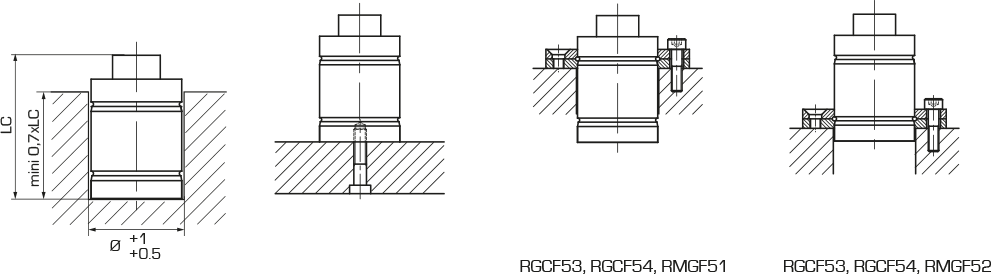

CAUTION : If you fix RGC type by bottom thread, gas spring’s bottom surface should lay completely on the die. RGC with stroke > 25mm should be attached to the die with screws or flanges (no drop-in mounting).
