RGC 750 gas spring

Features

Features

• Compact design, with extra high force 420 daN to 18 300 daN
• Stroke maximum : 50mm
• Double sealing
• Lubricated guiding
• Can be used in piping system with a rear adapter to :
– connect the gas springs in equi-pressure
– use the half-flange fixations of the ISO range

Print this sheet

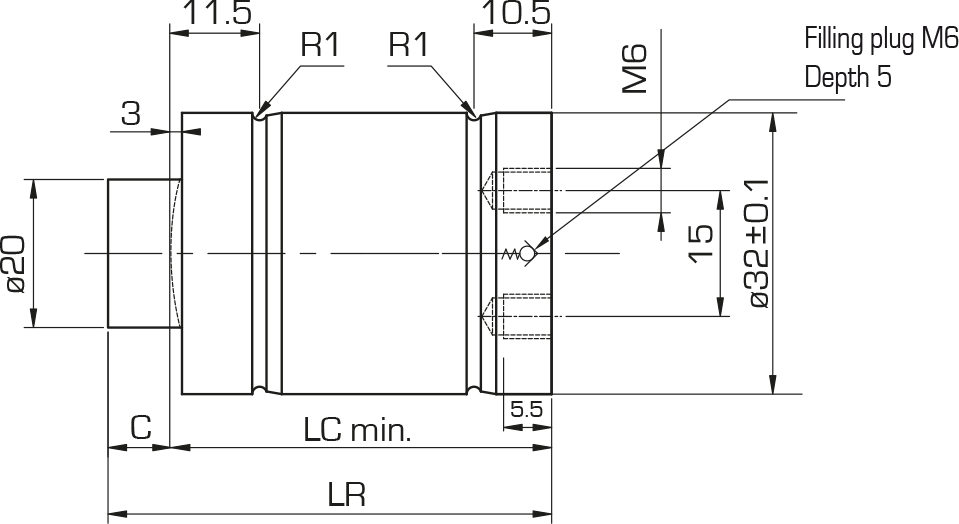

RGC 750 gas spring : SUPER COMPACT RGC - Quiri - 2

RGC 750 gas spring : SUPER COMPACT RGC - Quiri - 3

RGC 750 gas spring : SUPER COMPACT RGC - Quiri - 4

Type	Force daN	Stroke C mm	Order code	Pressure MPa (bar)	Force F1 N*	Force F2 N*	LR	LC	Weight Kg
RGC	750	6	443121/000	15 (150) (!)	7 370	10 070	63	57	0,25
		10	443122/000			10 640	75	65	0,30
		16	443123/000			11 200	93	77	0,35
		25	443124/000			11 740	120	95	0,40
		32	443125/000			12 140	140	108	0,44
		40	443126/000			12 140	165	125	0,49
		50	443127/000			12 340	195	145	0,55

* (N) = Kgf x 9.80665 | (Kgf)=N x 0.101972 | 1daN=1 x 101N | 1bar=1 x 10-1MPa

Example of order : RGC 750 C50
Spare Kit : 896543/000
Composition : Seals, valve and lubricant

(!) There is a blue sticker on the gas spring body when it is inflated with a special pressure (<15 MPa)

RGC 750 gas spring : SUPER COMPACT RGC - Quiri - 5

CAUTION : If you fix RGC type by bottom thread, gas spring’s bottom surface should lay completely on the die. RGC with stroke > 25mm should be attached to the die with screws or flanges (no drop-in mounting).
