RGC 4700 gas spring
| Type | Force | Stroke C | Reference | Pressure | Force F1 | Force F2 | LR | LC | Mass | 3D Model |
| daN | mm | MPa (bar) | N* | N* | mm | mm | Kg | |||
| RGC | 4700 | 10 | 443152/000 | 15
(150) (!) |
46 760 | 67 300 | 80 | 70 | 1.59 | 3D |
| 16 | 443153/000 | 66 400 | 106 | 90 | 1.86 | 3D | ||||
| 25 | 443154/000 | 68 700 | 135 | 110 | 2.10 | 3D | ||||
| 32 | 443155/000 | 66 900 | 167 | 135 | 2.40 | 3D | ||||
| 40 | 443156/000 | 66 400 | 200 | 160 | 2.80 | 3D | ||||
| 50 | 443157/000 | 66 400 | 240 | 190 | 3.10 | 3D |
* (N) = Kgf x 9.80665 | (Kgf)=N x 0.101972 | 1daN=1 x 101N | 1bar=1 x 10-1MPa
Example of order: RGC 4700 C50
Spare Kit : 896511/000.
Composition : Seals, valve and lubricant.
(!) There is a blue sticker on the gas spring body when it is inflated with a special pressure (<15 MPa)

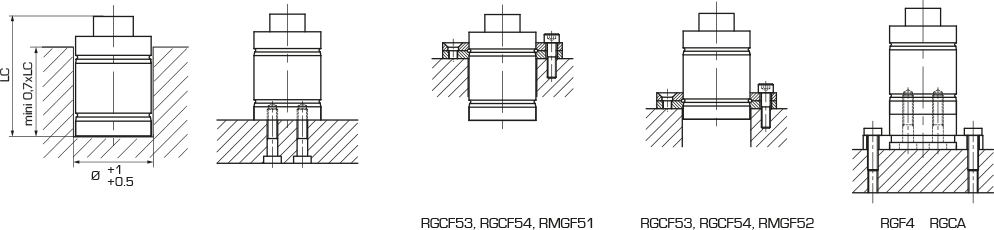

CAUTION : If you fix RGC type by bottom thread, gas spring’s bottom surface should lay completely on the die. RGC with stroke > 25mm should be attached to the die with screws or flanges (no drop-in mounting).
