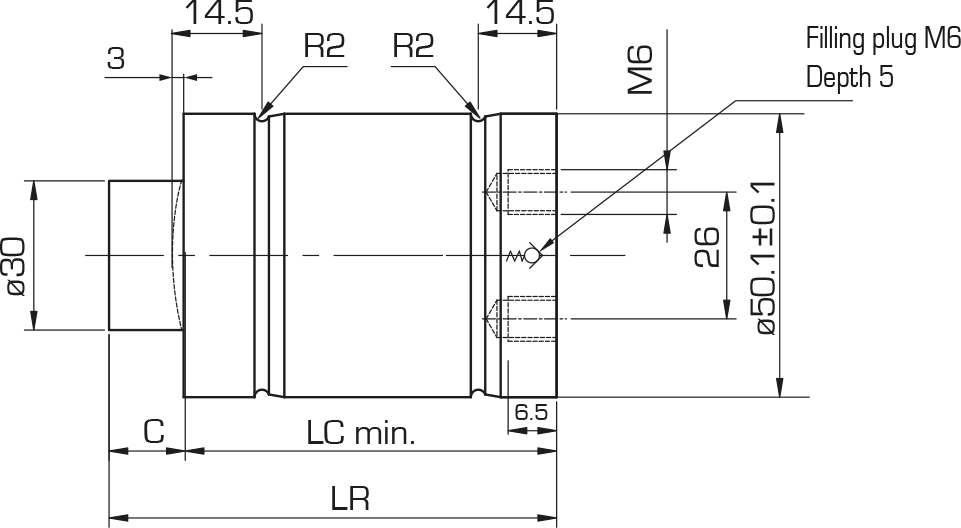

RGC 1800 gas spring
| Type | Force | Stroke C | Reference | Pressure | Force F1 | Force F2 | LR | LC | Mass | 3D Model |
| daN | mm | MPa (bar) | N* | N* | mm | mm | Kg | |||
| RGC | 1800 | 6 | 443141/000 | 15
(150) (!) |
18 850 | 25 800 | 66 | 60 | 0.40 | 3D |
| 10 | 443142/000 | 27 490 | 80 | 70 | 0.73 | 3D | ||||
| 16 | 443143/000 | 27 300 | 106 | 90 | 0.86 | 3D | ||||
| 25 | 443144/000 | 28 320 | 135 | 110 | 1.01 | 3D | ||||
| 32 | 443145/000 | 28 240 | 162 | 130 | 1.13 | 3D | ||||
| 40 | 443146/000 | 28 360 | 190 | 150 | 1.26 | 3D | ||||
| 50 | 443147/000 | 28 960 | 220 | 170 | 1.40 | 3D |
* (N) = Kgf x 9.80665 | (Kgf)=N x 0.101972 | 1daN=1 x 101N | 1bar=1 x 10-1MPa
Example of order : RGC 1800 C50
Spare Kit : 896510/000
Composition : Seals, valve and lubricant
(!) There is a blue sticker on the gas spring body when it is inflated with a special pressure (<15 MPa)
CAUTION : If you fix RGC type by bottom thread, gas spring’s bottom surface should lay completely on the die. RGC with stroke > 25mm should be attached to the die with screws or flanges (no drop-in mounting).
